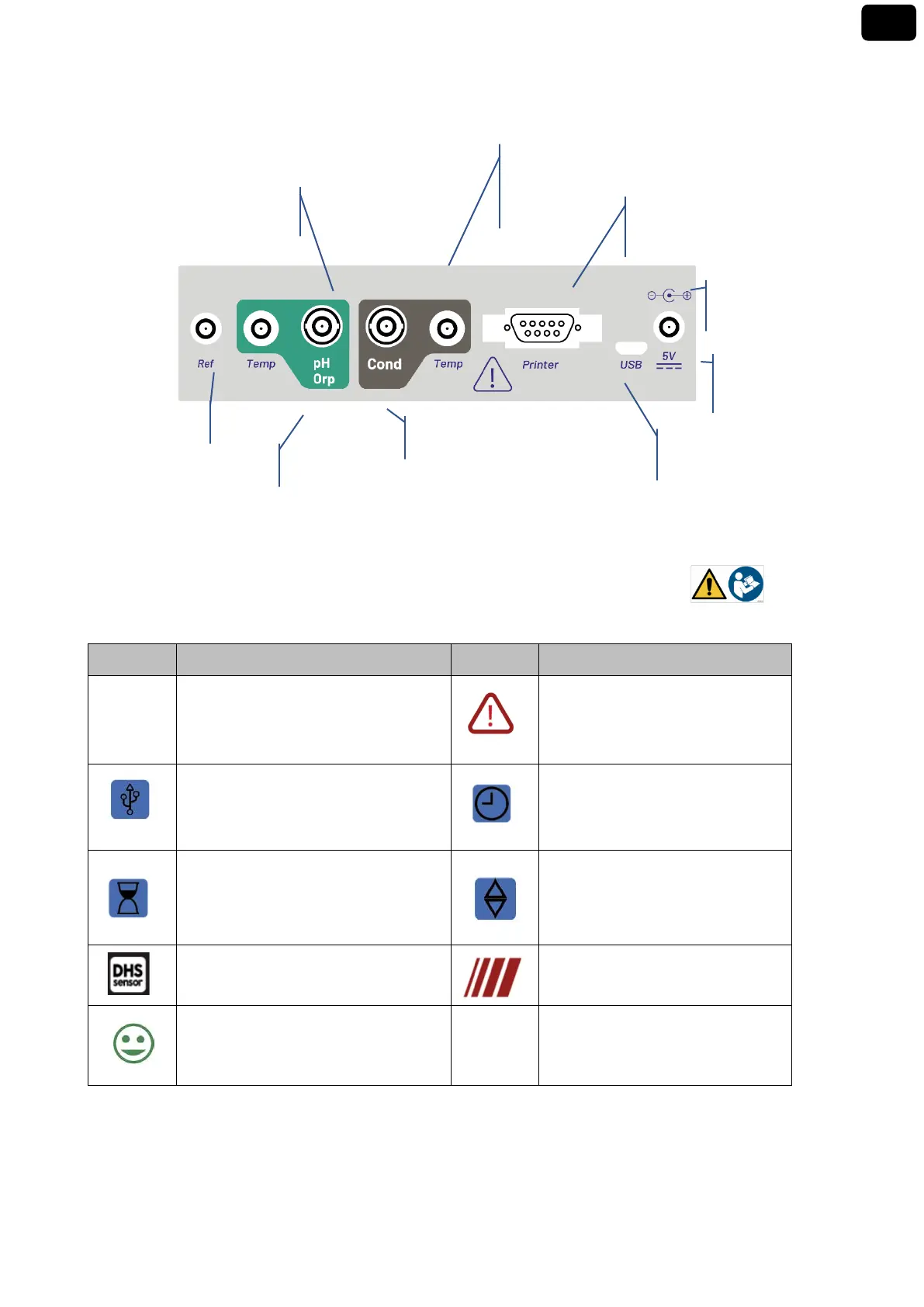

PC 60 VioLab top panel
READ THE MANUAL BEFORE PROCEEDING TO CONNECT PROBES OR ANY OTHER OUTPUT
Symbols and icons on the display
Symbol
Description
Symbol
Description
M+
Number of data stored in Data Logger
mode on instrumental memory
Error in measurement or calibration
Instrument connected to the DataLink+
software
FIXED: Automatic Data Logger set
INTERMITTENT:
Automatic Data
Logger in running
FIXED: Calibration deadline set for that
parameter
INTERMITTENT: Calibration deadline
active for that parameter
Press the directional keys to change
the parameter or value on the
display
DHS digital sensor connected
The bars scroll if the measurement
is not stable
Measurement stability indicator
4mm banana for reference
electrode
BNC for pH and ORP electrodes
RCA for pH temperature
probe
RCA for Conductivity
temperature probe
BNC for conductivity cell
Connection to the power grid through
a 5V power supply
Warning symbol no 1
Table 1 EN 61010-1: 2010
RS-232 for connection to
printer
MICRO - USB for connection to PC
