ERG500 Rower

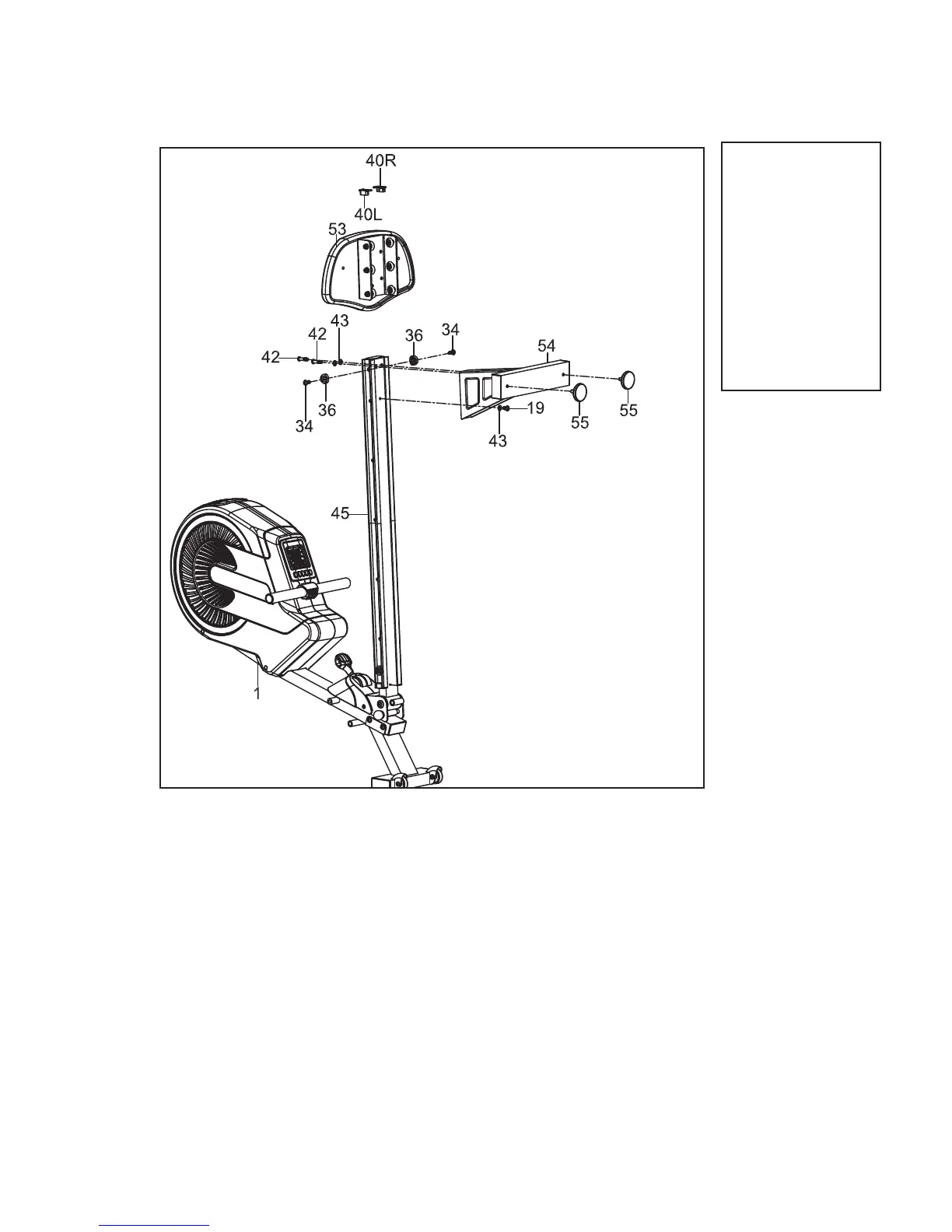

1. Insert the seat (53) to the slide rail (45).
2. Insert two cushion rubbers (36) to the slide rail (45), slightly
fasten with two allen bolts (34).
3. Fasten two foot mats (55) on the rear support tube (54).
4. Attach the rear support tube (54) to the slide rail (45), fasten
with one allen bolt (19), three at washers (43) and two allen
bolts (42).
5. Then insert two end caps for side rail (40L/R) to the end of
slide rail (45).
2 Cushioned Rubbers
(#36)
2 Allen Bolts (#34)
1 Allen Bolt ((#19)
3 Flat Washers (#43)
2 Allen Bolts (#42)
2 End Caps (#40)
Attaching the Seat and Rear Stabilizer
3
Hardware Step 3
To Next Page
