Xterra TRX4500 User Manual

6

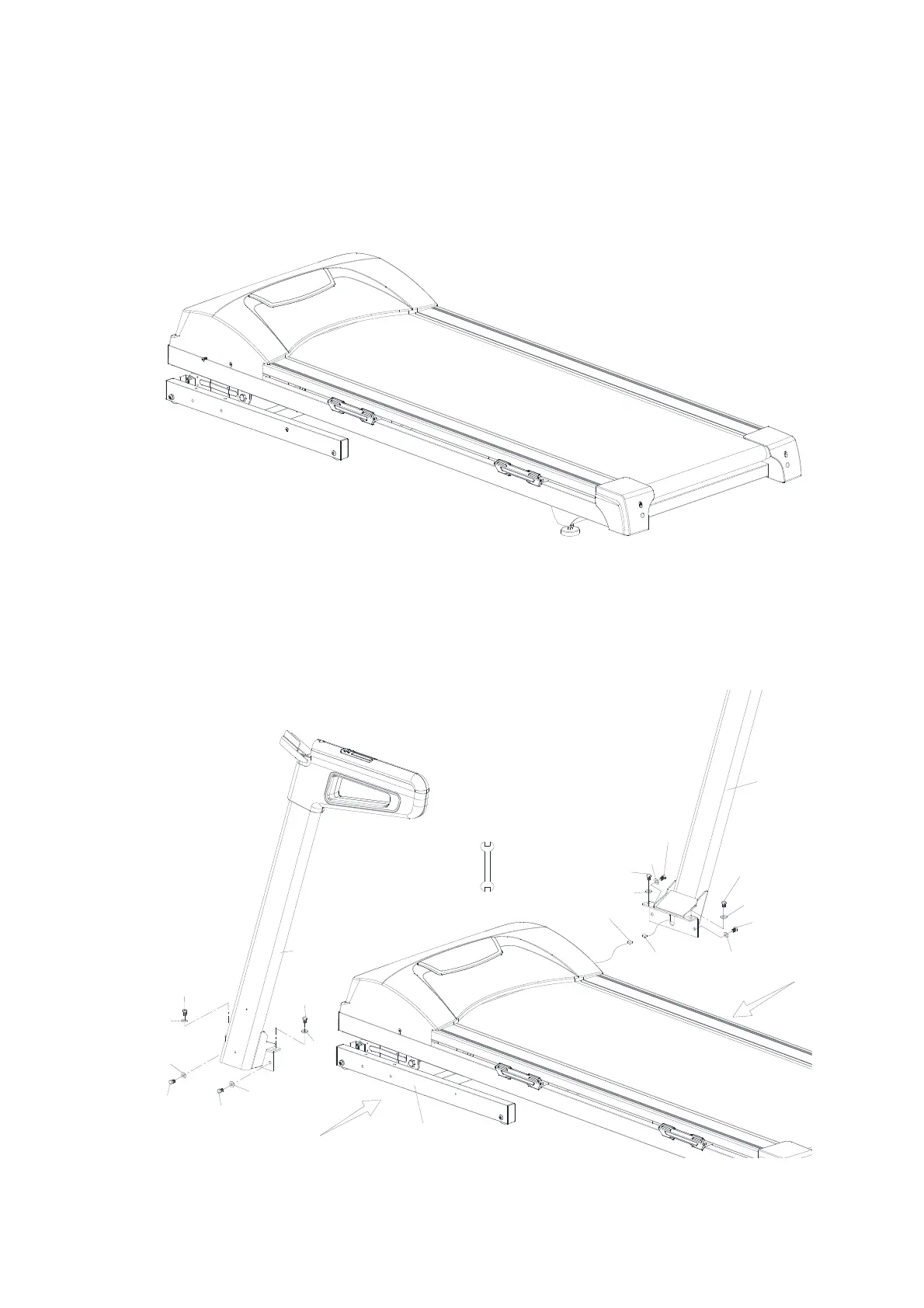

ASSEMBLY INSTRUCTIONS
STEP 1
Take out the treadmill from the carton and lay it aside on the smooth ground.
STEP 2
Connect Computer Cable (Middle) (54) with Computer Cable (Lower) (55) then insert
Right and Left Uprights (4) and (5) into the Frame Base (2) and use 13m/m Wrench (90)
to tighten 8 pcs of 5/16" × 1/2" Hex Head Bolts (99) and 8pcs of Ø5/16" × Ø18 × 1.5T
Flat Washers (100).
99
55
99
99
100
100
99
99
100
100
100
100
100
99
99
99
54
90
4
5
2
