Xterra TRX4500 User Manual

8

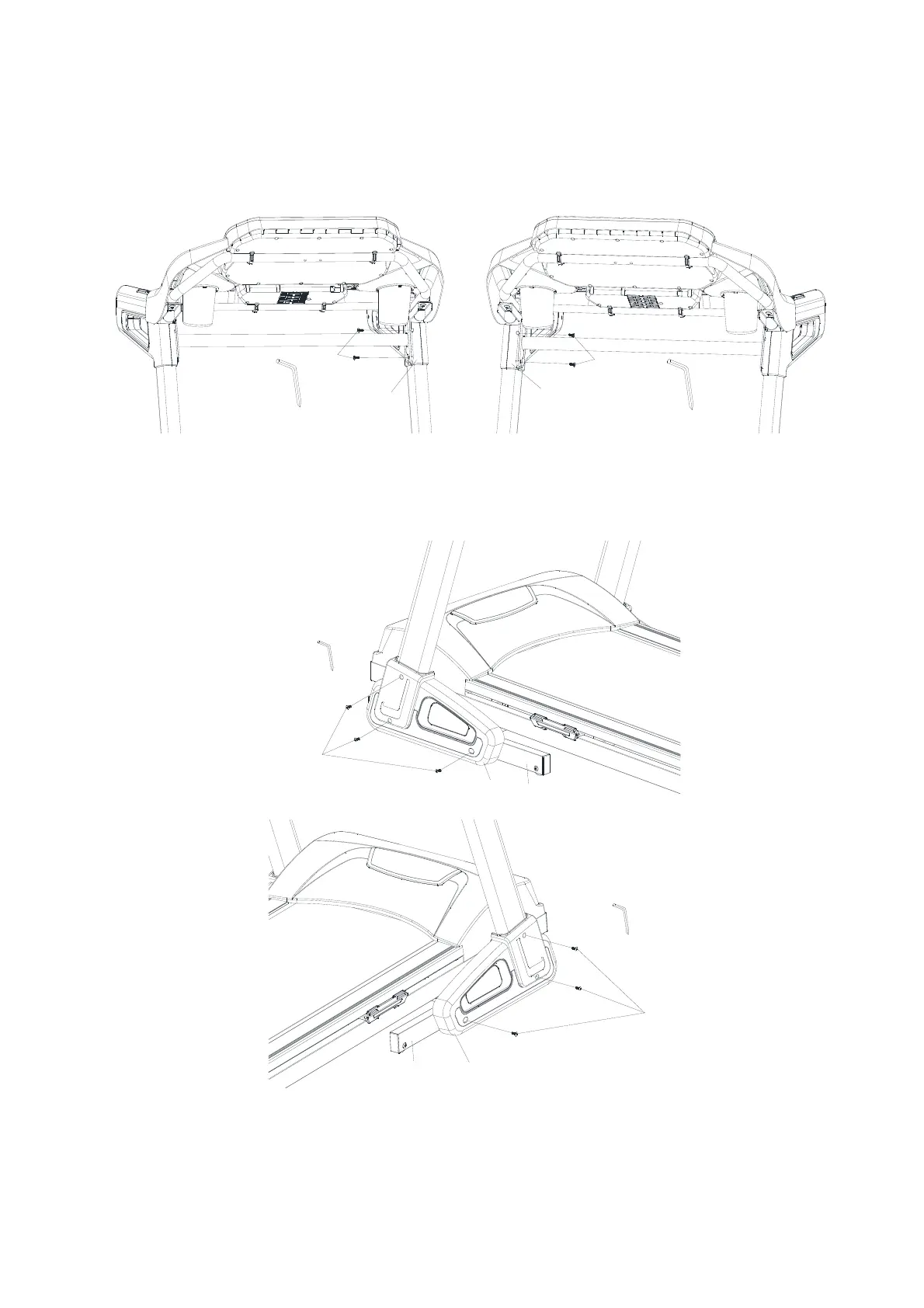

STEP 5
Install the Front Inner Handlebar Cover (L,R)) (107,110) and Right and Left Uprights with
the 4pcs of 3.5 × 12m/m_Sheet Metal Screws (74) by by using Combination M5 Allen
Wrench & Phillips Head Screw Driver (102) and tighten them.
74
102
107
102
74
110
STEP 6
Use Combination M5 Allen Wrench & Phillips Head Screw Driver (102) to tighten 6 pcs
M5 × 15m/m Phillips Head Screws (126) to secure right and left Frame Base Covers (39 ,
38) on theFrame Base (2).
126
102
38
2
126
39
102
2
NOTE: Please Tighten All Screws After All Components Assembly Complete.
