STEP 7: FRONT UPPER SUSPENSION ARMS
(149491) Turnbuckle 5 x 25mm -- 2
149292
149491
10.2mm
STEP 8: FRONT LOWER SUSPENSION ARMS AND AXLES
149499
149292
149499
149489
Step 6
148558
149499
149499
149289
Step 7
148647
148567
(148558) Lock Nut 3mm -- 4
(148567) Grub Screw 4 x 10mm -- 2
(149499) Cap Screw w/Threadlock 4 x 12mm -- 4
(148647) Cap Screw 3 x 40mm -- 4

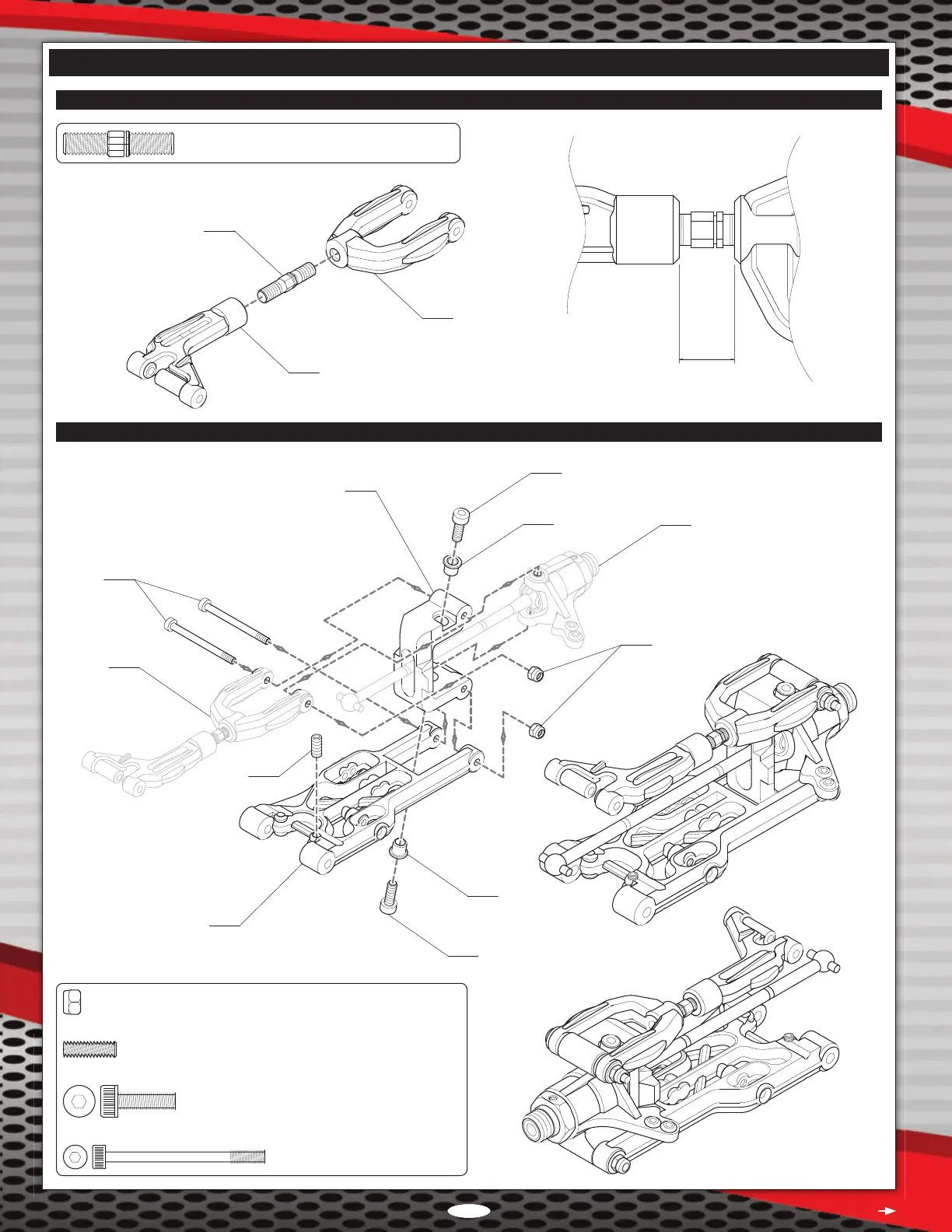

ExpLODED vIEW ASSEmBLY DRAWINGS
Continued On Next Page
To Next Page
