STEP 9: FRONT SUSPENSION
(148558) Lock Nut 3mm -- 2
(148638) Button Head Screw w/Threadlock 4 x 12mm -- 2
(149901) Hinge Pin 4 x 67.2mm -- 2
(148650) Cap Screw 3 x 42mm -- 2
STEP 10: REAR GEARBOX
(148647) Cap Screw 3 x 40mm -- 2
(148657) Button Head Screw 4 x 8mm -- 2
Step 5
149915
148638
148558
Step 8
149901
148650
Step 8
149911
Step 3
149911
149916
148657
148647
148647

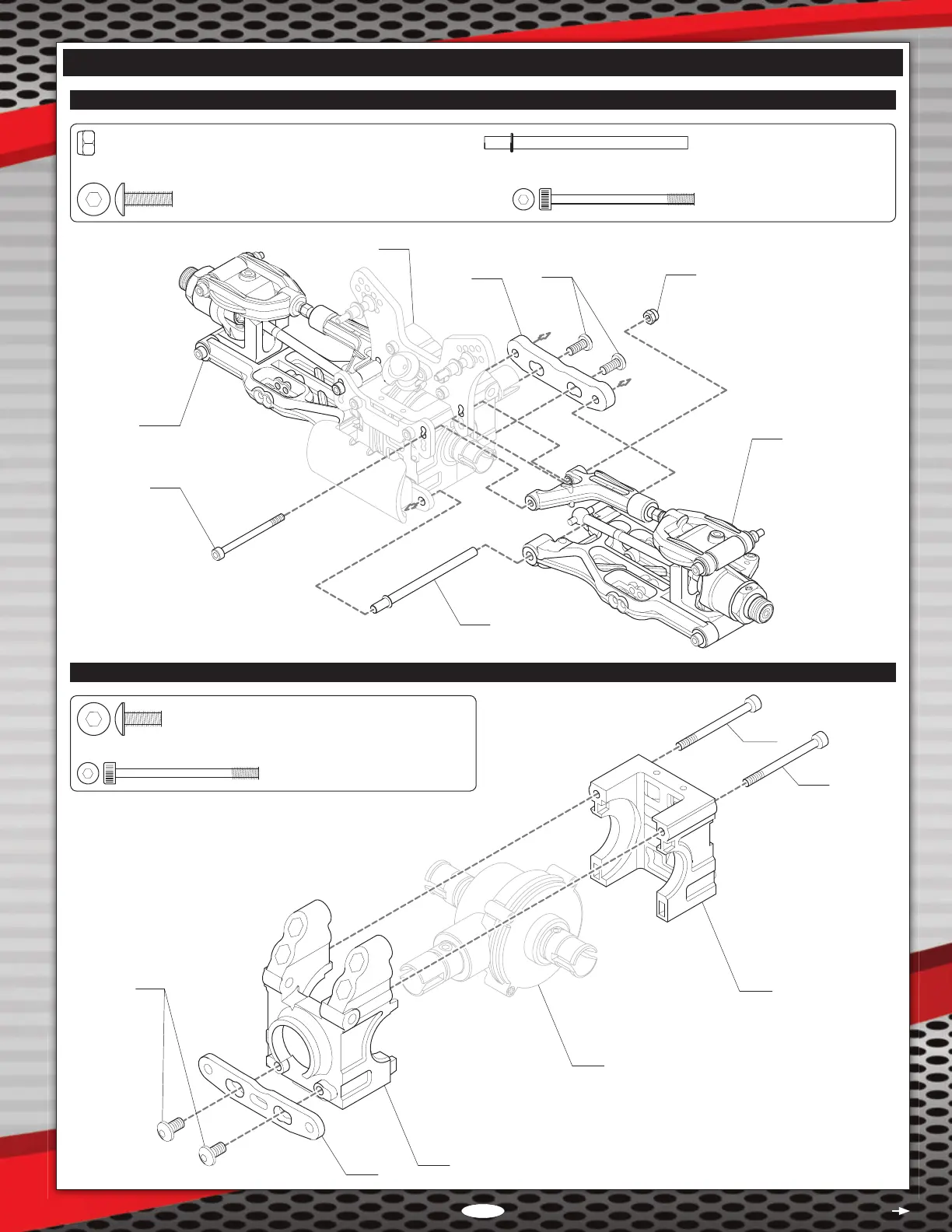

ExpLODED vIEW ASSEmBLY DRAWINGS
