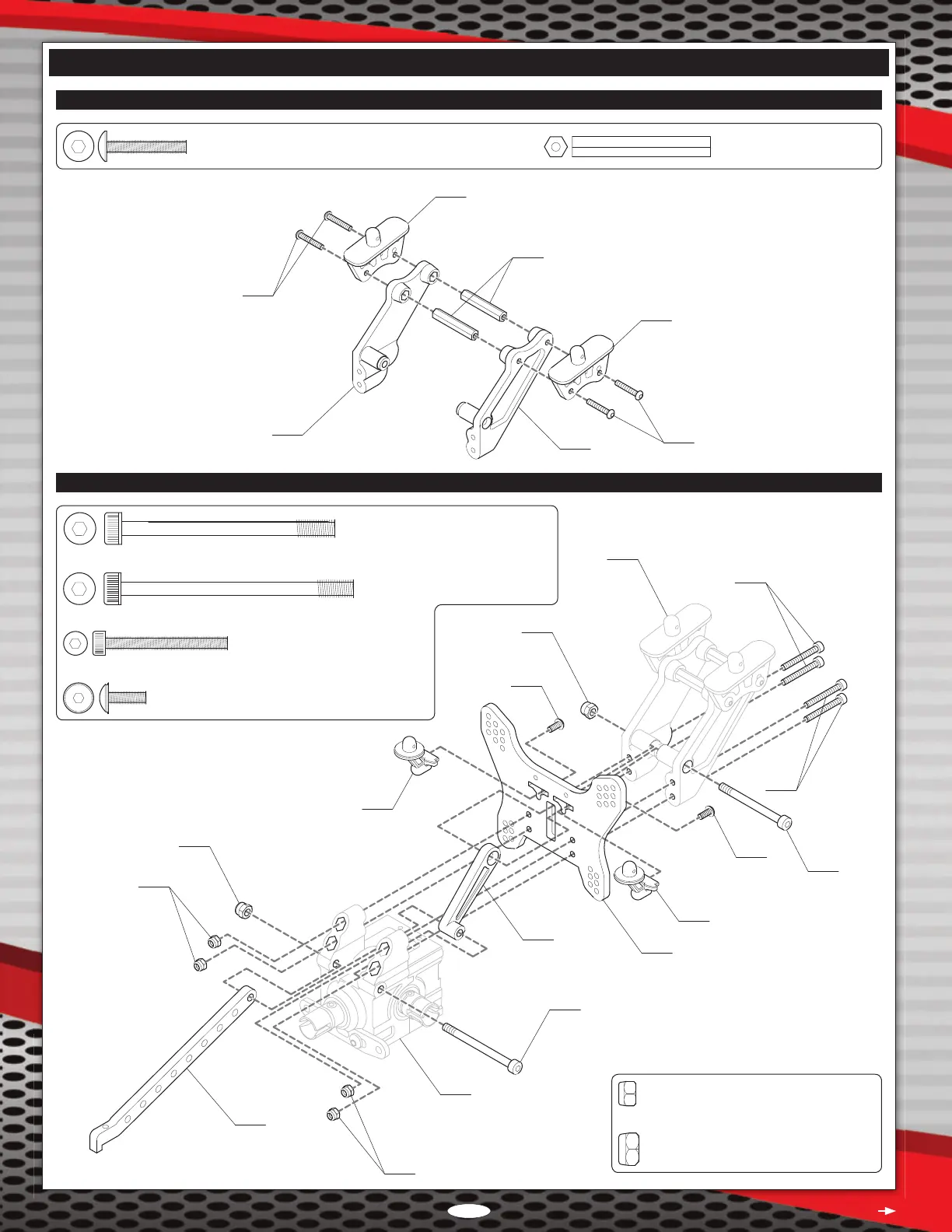

STEP 11: WING MOUNT
(148635) Button Head Screw 3 x 18mm -- 4
STEP 12: REAR SHOCK TOWER
(149271) Post 6 x 32mm -- 2
149271
149271
148635
149271
149271
149271
148635
(148558) Lock Nut 3mm -- 4
(148559) Lock Nut 4mm -- 2
(148649) Cap Screw 4 x 45mm -- 1
(148507) Cap Screw 4 x 50mm -- 1
(148632) Button Head Screw 3 x 10mm -- 2
(148511) Cap Screw 3 x 25mm -- 4
149272
148632
148559
Step 11
148511
148511
148632
148649
149272
149342
149907
148507
Step 10
148558
149274
148559
148558
