X100 PAD2 Diagnosis System
23

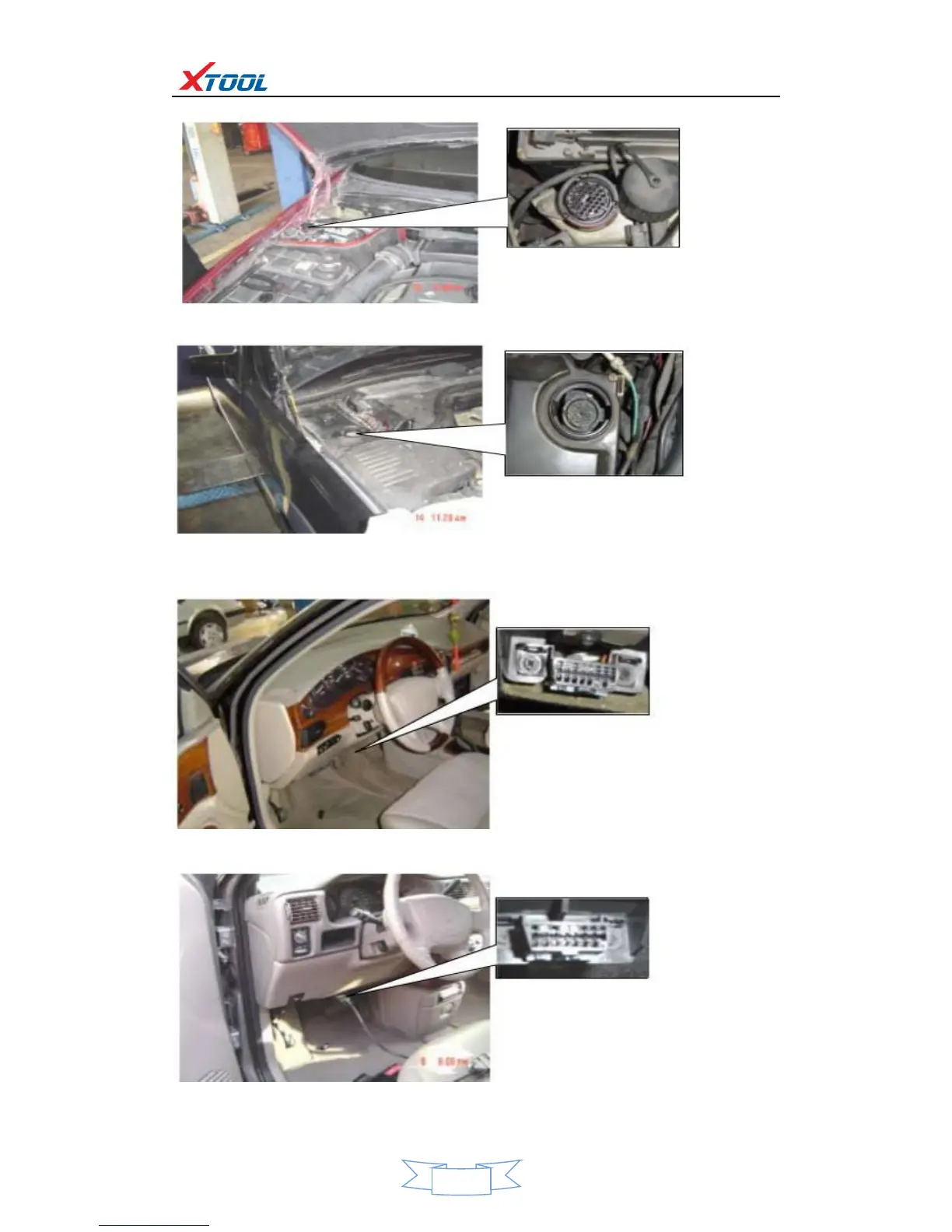

*Benz C180: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector.
*Benz 300SEL 140 chassis: the OBD plug is on the left hand side of the engine bay, use Benz-38
connector.
*GM Buick: the OBD plug is below the dashboard, use SMART OBDII-16 connector.
*GM Buick GL8 : the OBD plug is below the dashboard, use SMART OBDII-16 connector.
