Xtracer 1152 - 1152-420-000 A Clutch Shaft

© Xtrac 2015 Page 1 of 2

Product:
P1152 Gearbox
Date:
05/05/2015
To:
All 1152 customers
Ref:
1
152
-
00
01
From:
Angelo Wilson
Position:
Design Engineer

Technical Bulletin Action Level
Requires Immediate Action
For Information Only
Ref Description
1 1152-420-000A CLUTCH SHAFT
Following initial testing and racing of the 1152-900-000A gearbox in the LMP3
application, it has been determined that the diameter of the ground nose journal on the
1152-420-000A Clutch Shaft requires amendment to optimise the fit inside the engine
crank bush.
Clutch shafts with issue number 3 or lower were manufactured with the ground nose
journal diameter measuring Ø15.938/15.927mm. These parts require modification to
reduce the diameter to Ø15.799/15.773mm (ref. Figure 1.1).


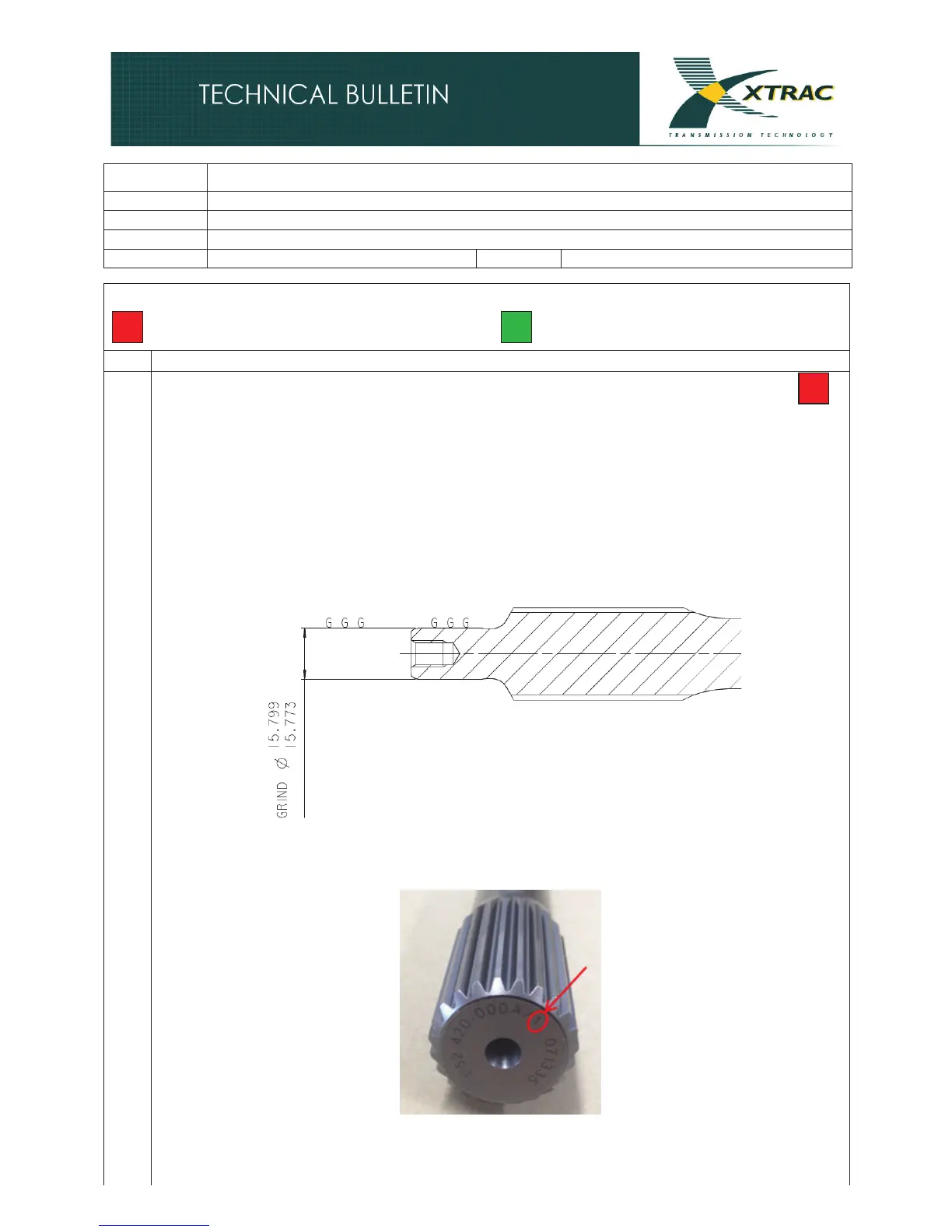

Figure 1.1: Clutch Shaft Nose Journal Size
Figure 1.2: Issue number identification
1
2
1
