This change will be phased in imminently on new builds and rebuilds.
3 1152-903-000A PUMP HOUSING ASSEMBLY
The 1152-903-000A Pump Housing Assembly has been up-issued to revision 2 to
replace the 00P-161-0042 Oil Filter and 102-0271 O Ring Viton 16 x 2 (ref. Figure
3.1), for an alternative specification 161-0032 Oil Filter and 102-0825 O Ring Viton 30
x 1 (ref. Figure 3.2).

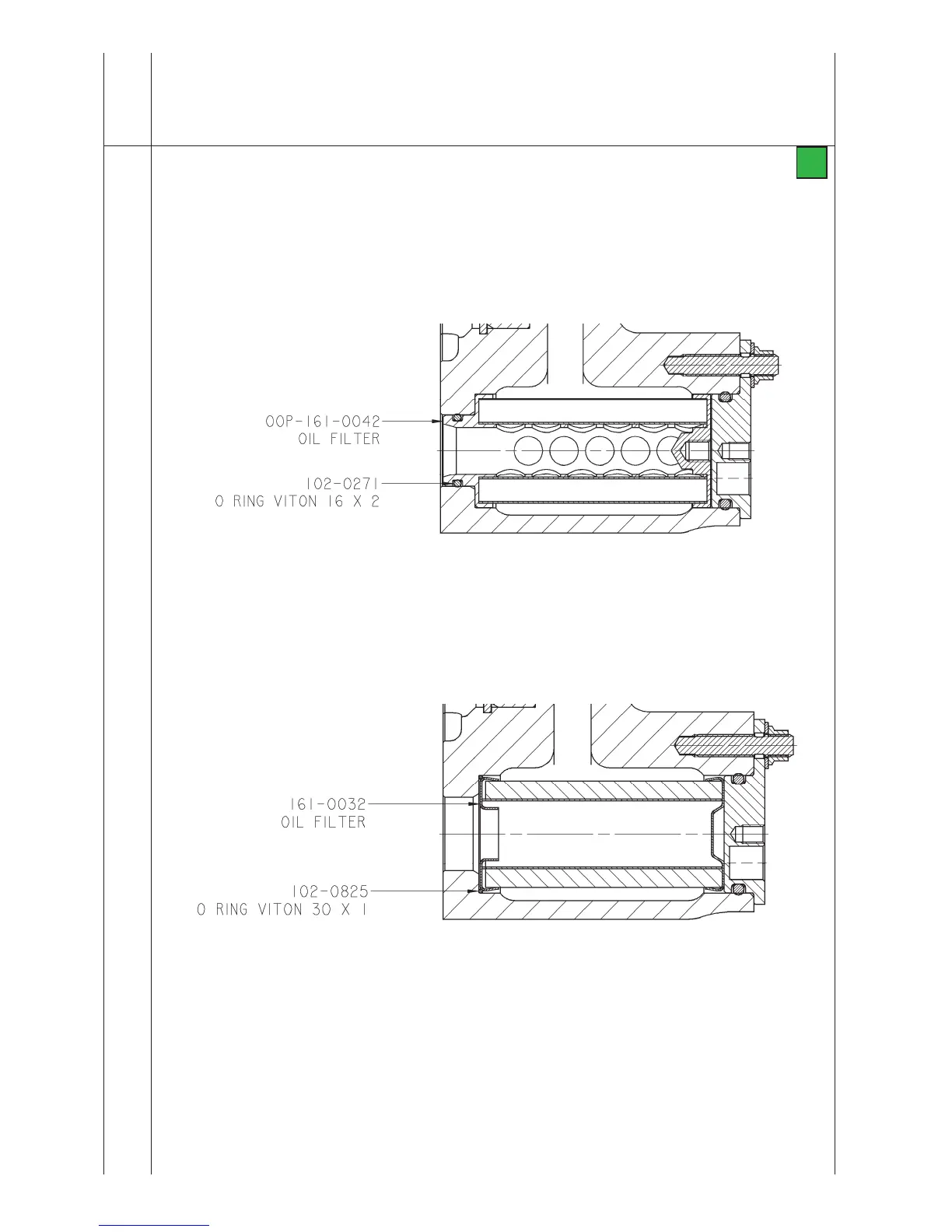

Figure 3.1: Revision 1 Pump Housing Assembly
Figure 3.2: Revision 2 Pump Housing Assembly
This change will be phased in imminently on new builds.
All gearbox rebuilds from 07/07/15 onwards will feature the new Oil Filter and O Ring
as standard, unless otherwise notified.
