Xtracer 1152 - Page 54

© Xtrac 2015 Page 2 of 5
Figure 1.2: Bellhousing Updates
These changes will be phased in imminently on LMP3 transmission builds.
2 1152-401-000A MAINCASE

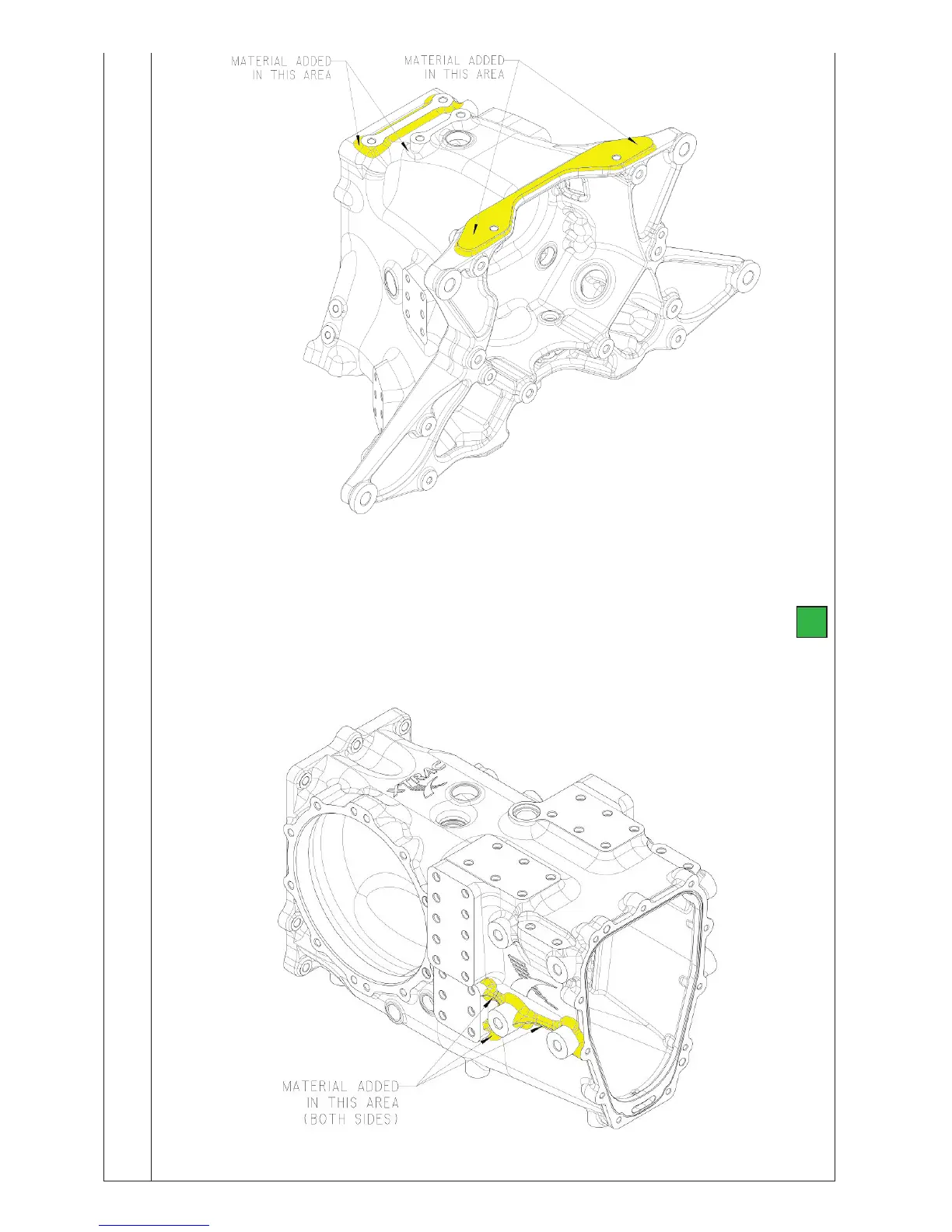

The 1152-401-000A Maincase has been up-issued to revision 5 to add material
around the rear wing fixings to increase casing strength (ref. Figure 2.1).

Figure 2.1: Maincase Update
2
