VESDA-EVEU-A00 Product Guide
A B C
D
E
F
mm inch
A 17.5 0.69
B 315.0 12.4
C 17.5 0.69
D 144.99 5.71
E 77.2 3.04
F 3.5 0.1

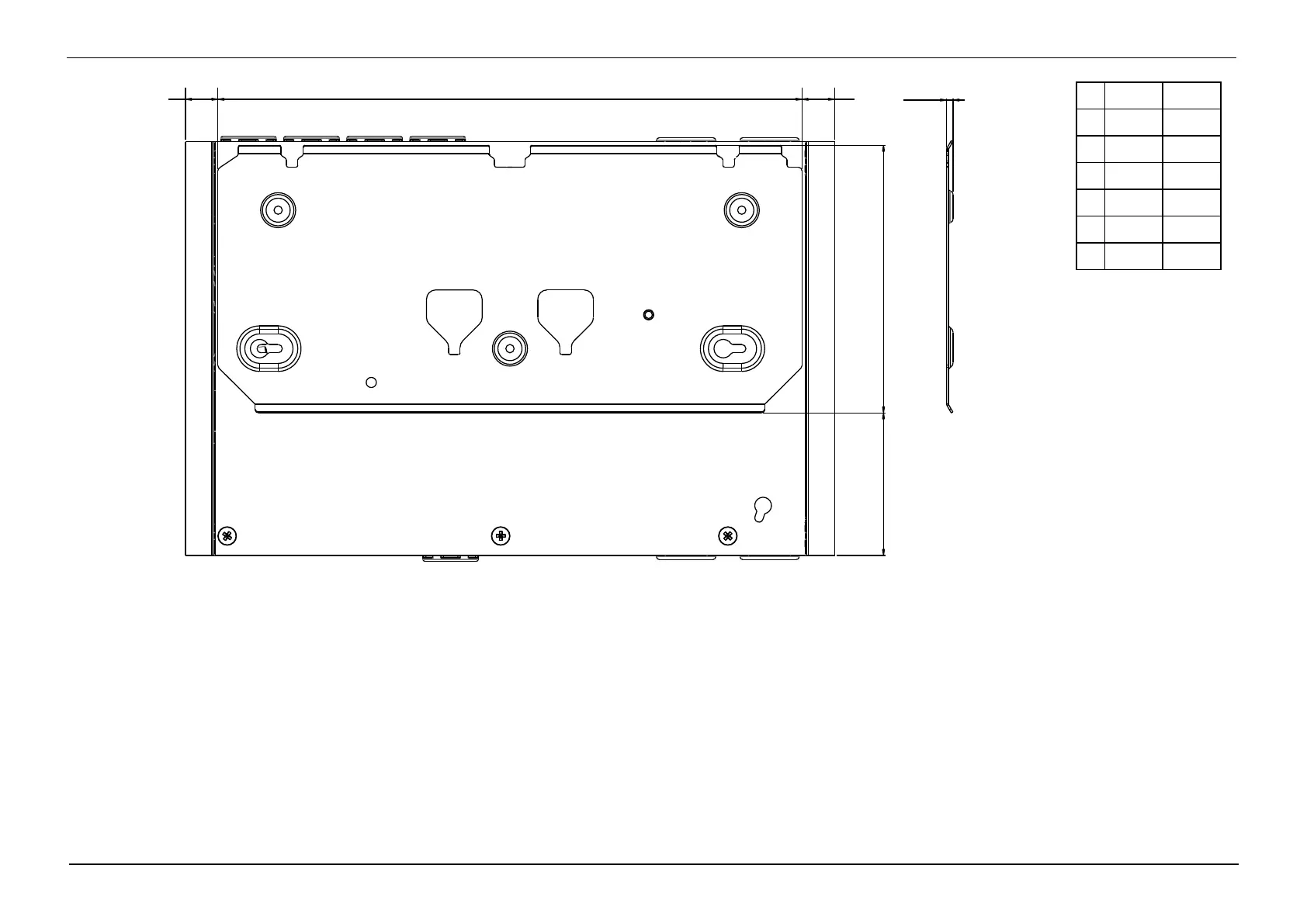

Figure2-5: Rear dimensions with Mounting Bracket
12 www.xtralis.com
