VESDA-EVEU-A00 Product Guide
www.xtralis.com 21

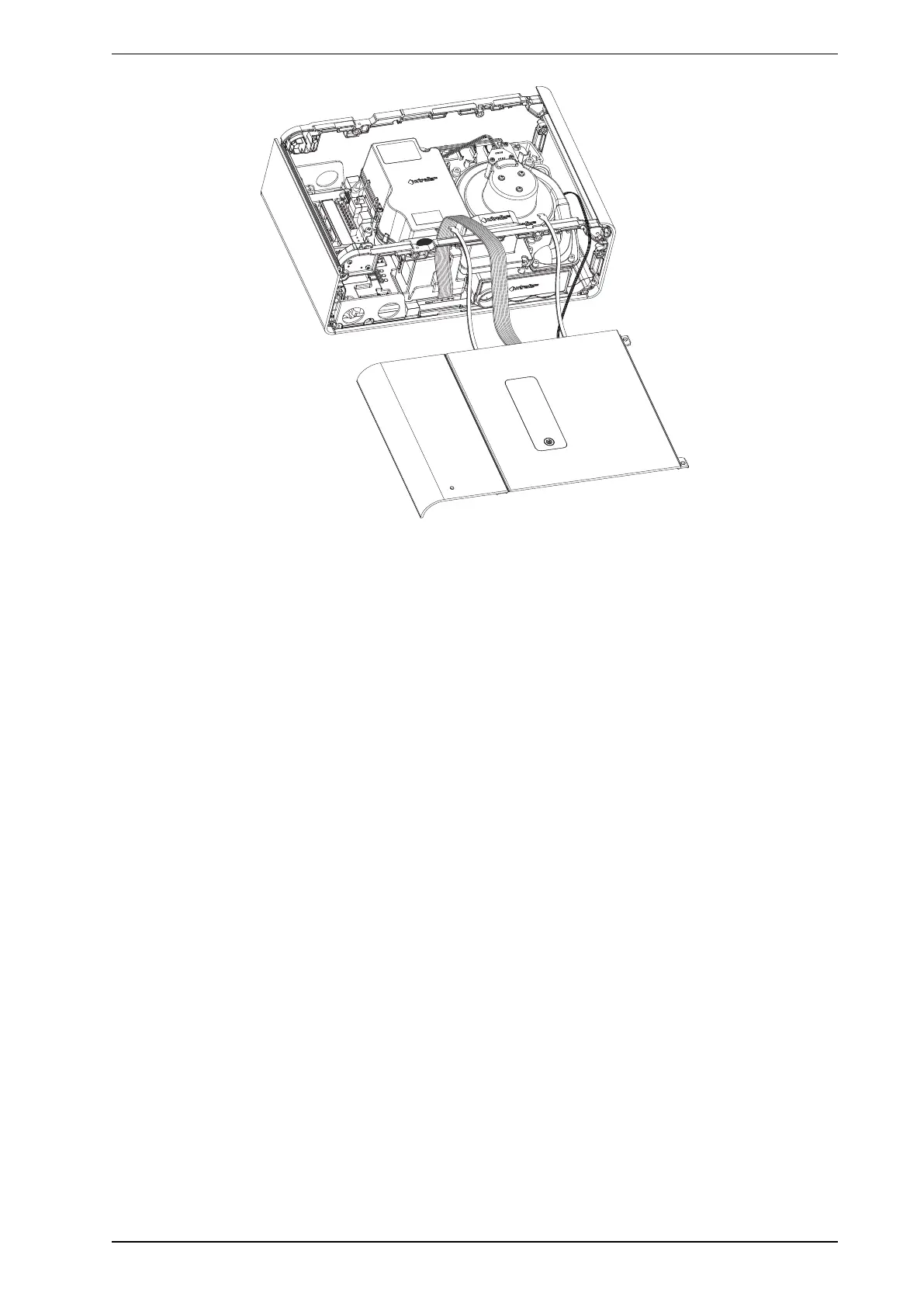

Figure4-8: Detector with tethers detached
5. Detach the front door from the fascia by removing pin A from the hinge (Figure4-9, Figure4-10). Leave
pin B in place – do not remove it.
