VESDA-EVEU-A00 Product Guide
32 www.xtralis.com

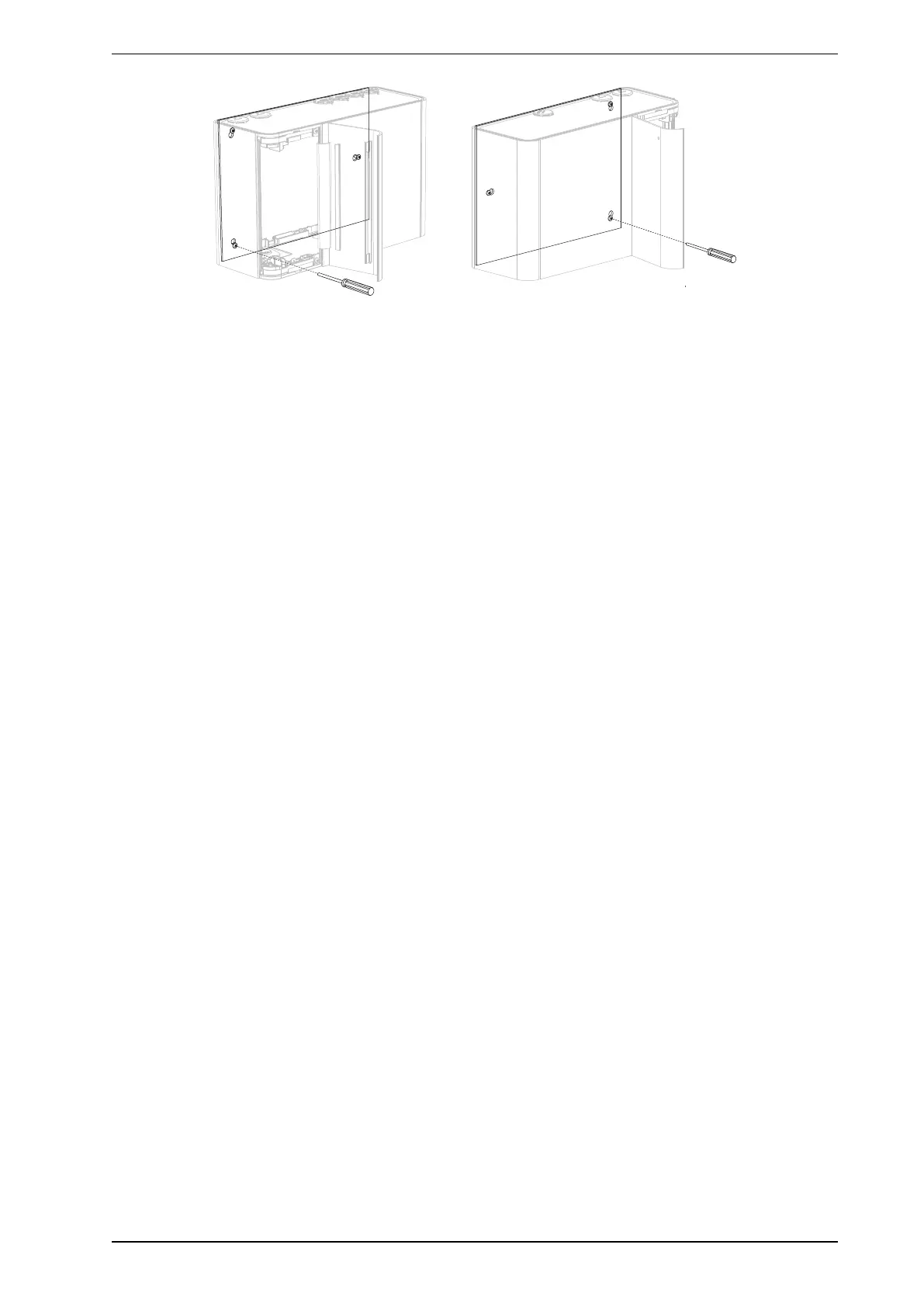

Upright
Detector
Inverted
Detector
Figure4-31: Locking screw
13. Tighten the top and bottom screws.
14. Insert the pipes and electrical conduit.
