DIGITAL CONTROL INTERFACE
10
Entering Password
1. Press any button (besides the speed button) to prompt the screen for a password.
2. To enter password, use the “Speed” button to input the number 1-4 and then press the Enter button to
conrm.

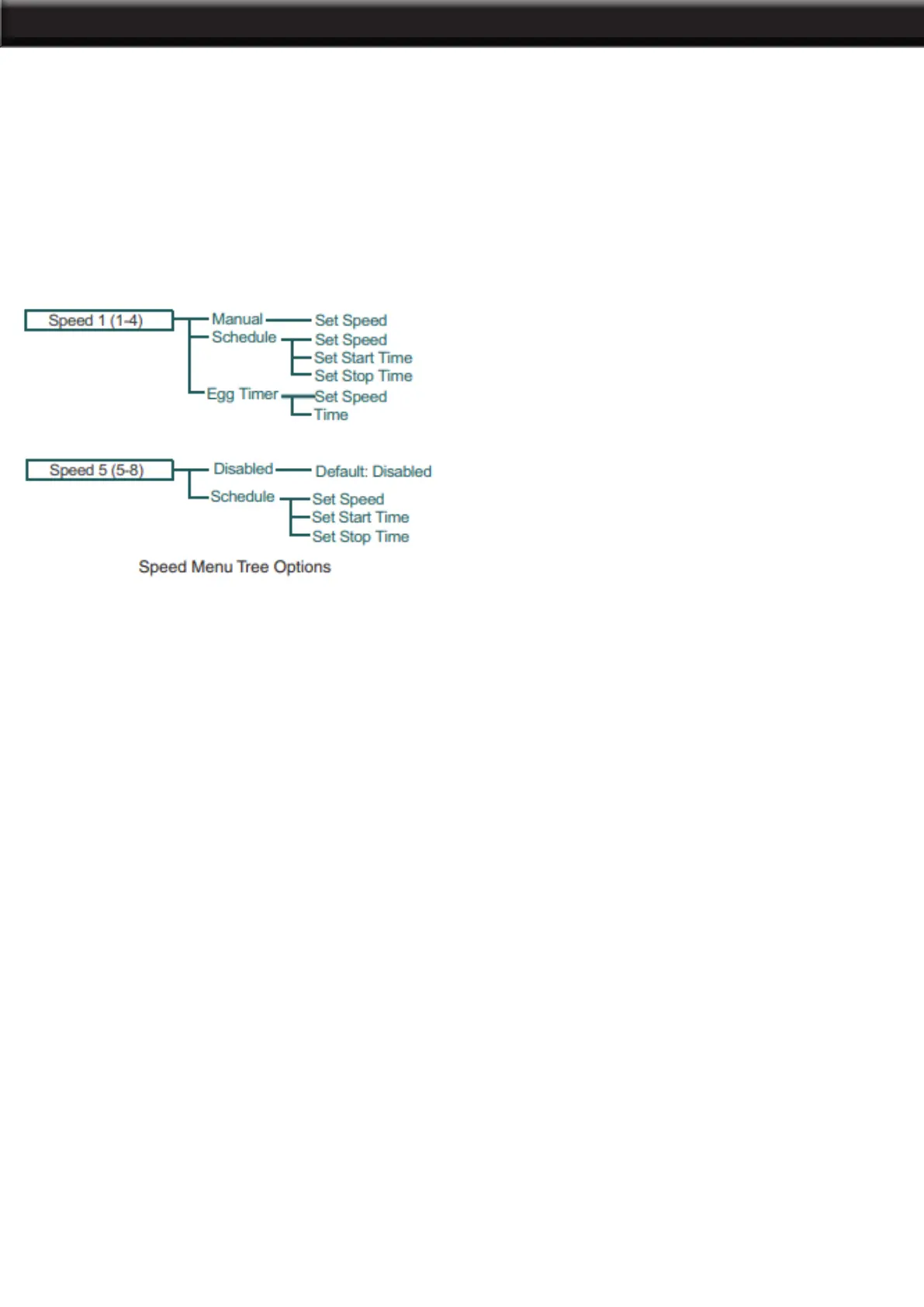

PUMP OPERATING MODES
The Variable Speed Pump can be programmed in three different modes: Manual, Schedule, and Egg Timer.
Speeds 1-4 can be programmed in all three modes. Speeds 5-8 can only be programmed in Schedule
mode since there are no buttons on the control panel for Speeds 5-8. The default setting for Speeds 5-8 is
“Disabled”.
MANUAL
Assigns a speed to one of the four Speed buttons on the control panel. This mode can only be used for
speeds 1-4. To operate in Manual mode, press one of the four speed buttons and then press the Start/Stop
button. The pump will run the assigned speed for that speed button.
EGG TIMER
Menu - Setting - Egg timer, egg timer speed is displayed, use the or arrow button to move the cursor, and
use the arrow button to change the number. The range of the speed is 450RPM-3450RPM. Press Enter to
save settings. Press Select, egg timer time is displayed, use the arrow button to set time. The time range is
00:01-19:59.
SCHEDULE
Program speeds 1-8 start and stop at a specic time during a 24 hour period. Speeds programmed in
Schedule mode will override any manually selected speed (Schedule program preset in factory, can be
changed manually).
SET SPEEDS IN MANUAL MODE (SPEEDS 1-4 ONLY)
1. Press Menu.
2. Use Up or Down arrows to scroll to “Manual”, then press Select.
3. Use Up or Down arrows to nd the speed (1-4) you wish to program, then press Select.
4. Press Slect, access manual speed setting change, Use Left or Right arrow button to change the
cursor highlight the number which will be changed. And use Up or Down arrow button to change the
numbers.
5. Press Enter to save the new speed setting.
