DIGITAL CONTROL INTERFACE
LED:
On: Green light when pump is powered on.
Warning: On if warning condition is present.
Alarm: Red LED on if alarm condition occurs.
Control Panel LCD Screen:
• Line 1: Key icon indicates password protection mode is active. If password protect is not enabled,
no key icon is displayed. Also shows current time of day. Active cursors display when arrow key input is
available.
• Line 2: Displays current pump speed (RPM)
• Line 3: Countdown time and watts
• Line 4: Current pump status and current feature.
NOTE: Always close the keypad cover after using the keypad.
NOTE: Using screwdrivers or pens to program the pump will damage the keypad overlay. Use your
ngers only when programming the pump.
STOPPING AND STARTING THE PUMP
Starting the Pump
1. Be sure the pump is powered on and the green power LED is on.
2. Select one of the speed buttons, then press the Start/Stop button (LED on) to start the pump. The
pump will go into priming mode if priming feature is enabled.
Stopping the Pump
1. Press Start/Stop to stop the pump. When servicing equipment (lters, heaters, chlorinators
etc.), disconnect the communication cable, and switch OFF on the circuit breaker to remove power from the
pump.
Adjusting and Saving a Pump Speed
1. While the pump is running, press the Up or Down arrow to adjust to desired speed setting.
2. Press and hold down a Speed button (1-4) for three (3) seconds to save speed to the button or press
Save to save the speed.
Operating the Pump at Preset Speeds

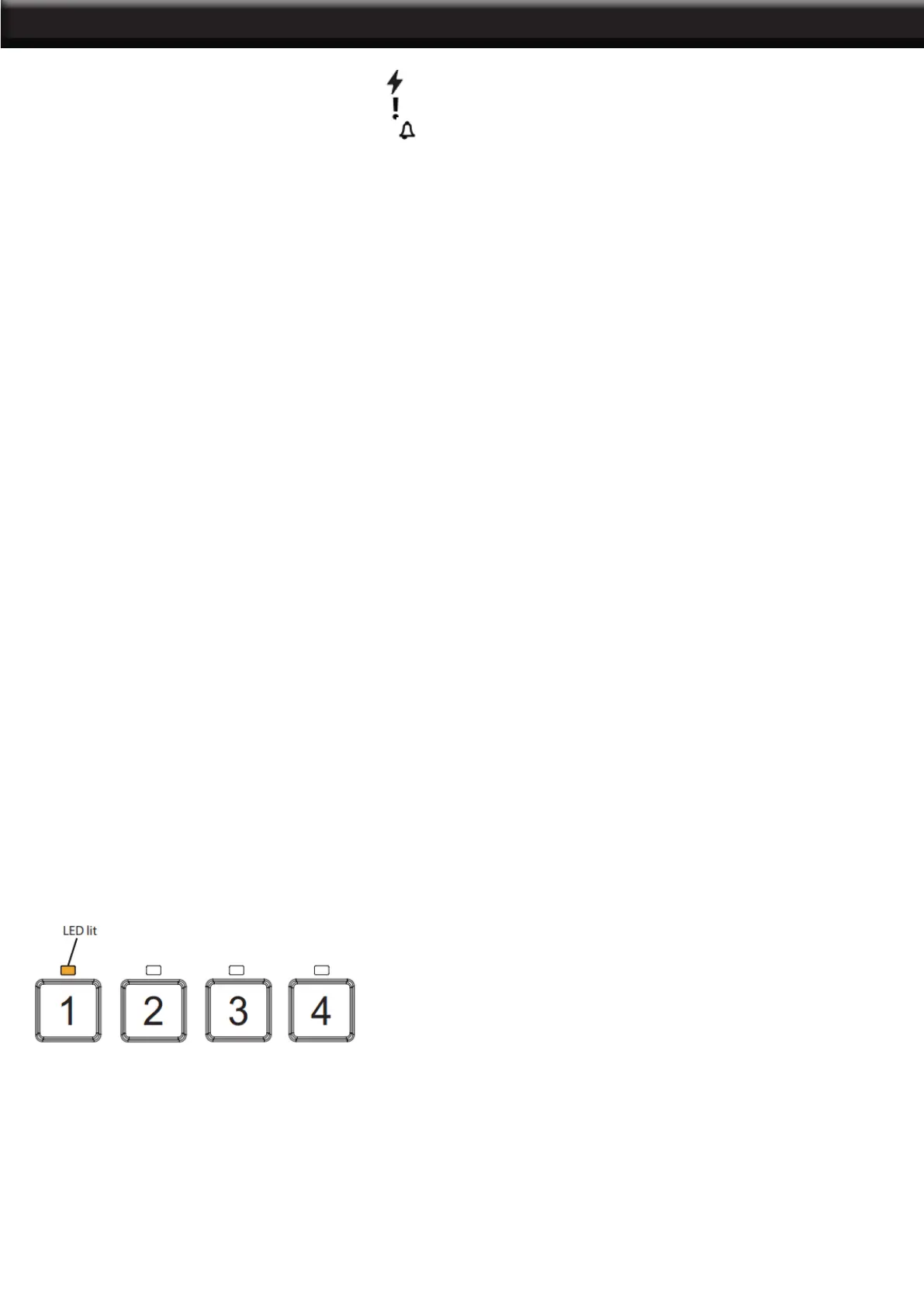

The pump is programmed with four default speeds of 750, 1500, 2350 and 3110 RPM. Speed buttons 1-4
are for each of the preset speeds as shown below.
1. Be sure the pump is powered on and the green power LED is on.
2. Press the Speed button (1- 4) corresponding to the desired preset speed and release quickly. The
LED above the button will turn on.
3. Press Start/Stop. The pump will quickly change to the selected preset speed.
Manual, Schedule, and Egg Timer.
Speeds 1-4 can be programmed in all three modes.
Speeds 5-8 can only be programmed in Schedule Mode since there are no buttons on the control panel
for Speeds 5-8 The default setting for Speeds 5-8 is “Disabled”
