2. Raise the quick attach lock lever.

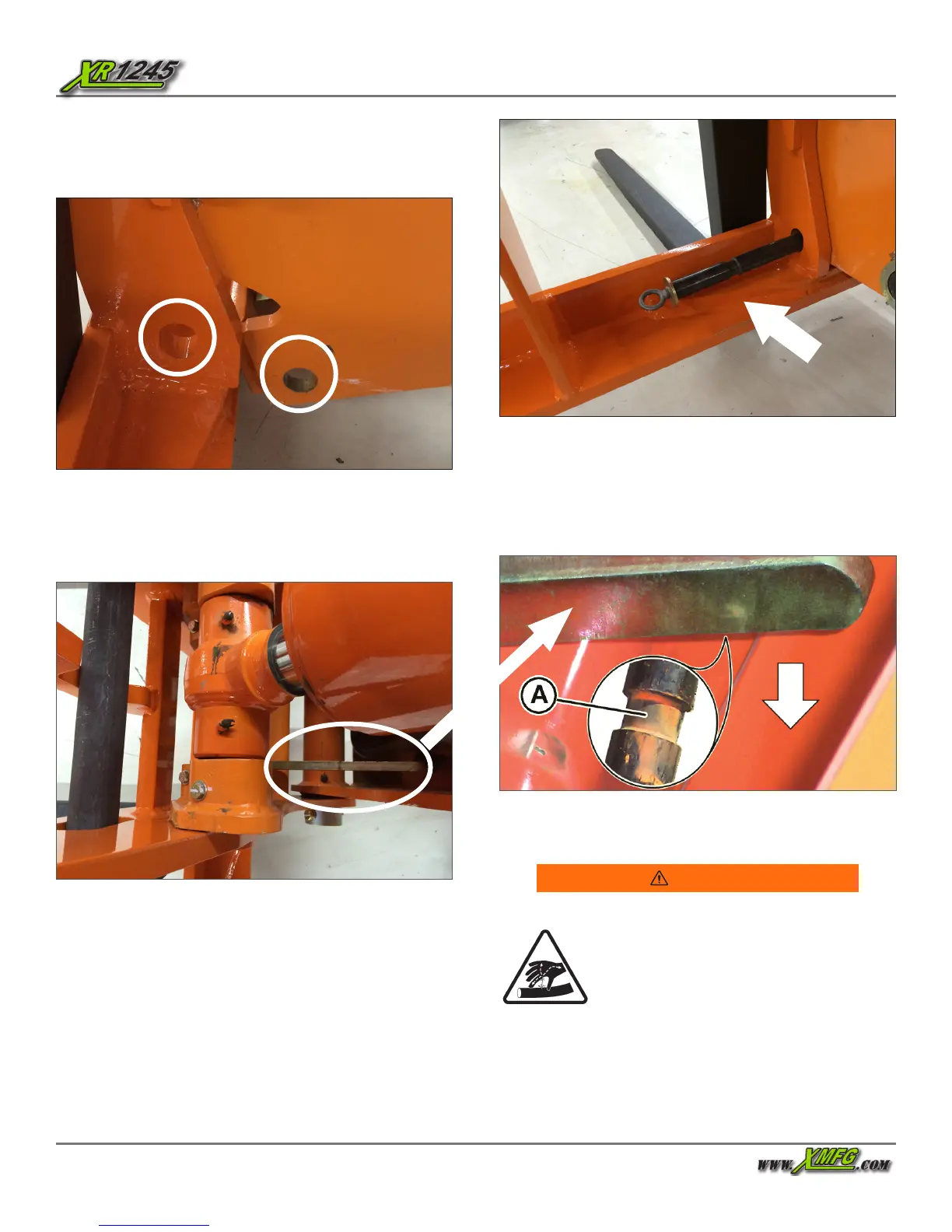

Figure 73. Quick Attach Lock Lever.
3. With lock lever raised, insert quick attach pin completely
through the attachment and quick attach adapter.
Figure 74. Insert Quick Attach Pin Through Attachment and Quick Attach
Adapter.
4. Release the quick attach lock lever and make sure it has
lowered and seated itself in groove (A) of the quick attach
pin.
Hydraulic attachments have a maximum
hydraulic pressure rating. Failure to make
sure the attachment is equipped with a
pressure reducing valve, or is rated to be
equal or greater than 3,900 psi, which is the
maximum pressure of the forklift auxiliary hydraulic system
at the quick-disconnect couplers, could result in death or
serious injury.
Warning
Figure 75. Quick Attach Lock Lever and Quick Attach Pin.
Figure 72. Tilt Attachment To Align Holes (B) and (C) Between Attachment
and Quick Attach Adapter.
B
C
1. Tilt the attachment up slightly. The quick attach adapter
should be tight against the rear of the attachment. Align
the holes between the quick attach adapter (C) and
attachment (B).
