Operation
Operation Manual63

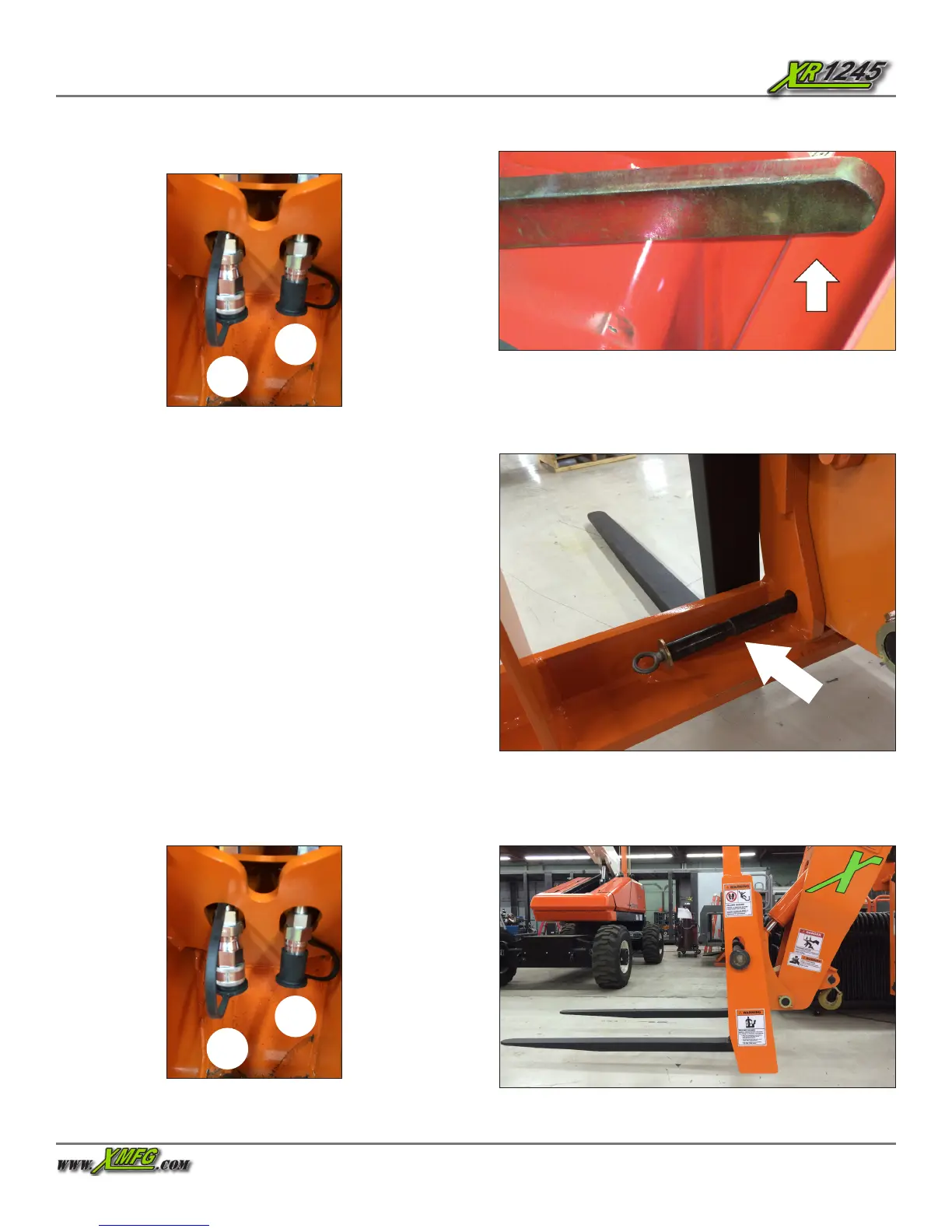

5. Connect the quick attach couplers (this only applies to
attachments with a quick attach hydraulic system).
A
B
Figure 76. Quick Attach Couplers For Hydraulic Systems.
(A) Female Coupler. (B) Male Coupler.
A
B
Figure 77. Quick Attach Couplers For Hydraulic Systems.
(A) Female Coupler. (B) Male Coupler.
Figure 78. Quick Attach Lock Lever
7. Raise the quick attach lock lever.
Attachment Removal
NOTE: To remove a standard carriage with forks, spread the
forks apart on the carriage shaft. This provides adequate sup-
port for the carriage to stand alone.
8. Pull out the quick attach pin at the bottom of the quick
attach adapter.
Figure 79. Pull Quick Attach Pin from Attachment and Quick Attach
Adapter.
Figure 80. Lower Attachment to Ground in Level Position
9. Lower the attachment to the ground in a level position.
1. Bring the forklift to a complete stop.
2. Move the travel select lever to NEUTRAL (N).
3. Set the parking brake switch to ON (engaged).
4. Extend the boom approximately 18 to 20 inches .
5. With attachment 10 to 12 inches o of the ground, tilt the
attachment backward.
6. Disconnect the quick attach couplers (this only applies to
attachments with a quick attach hydraulic system).
