Xycom 9460 - Page 25

Chapter 3 – Installation
3-11

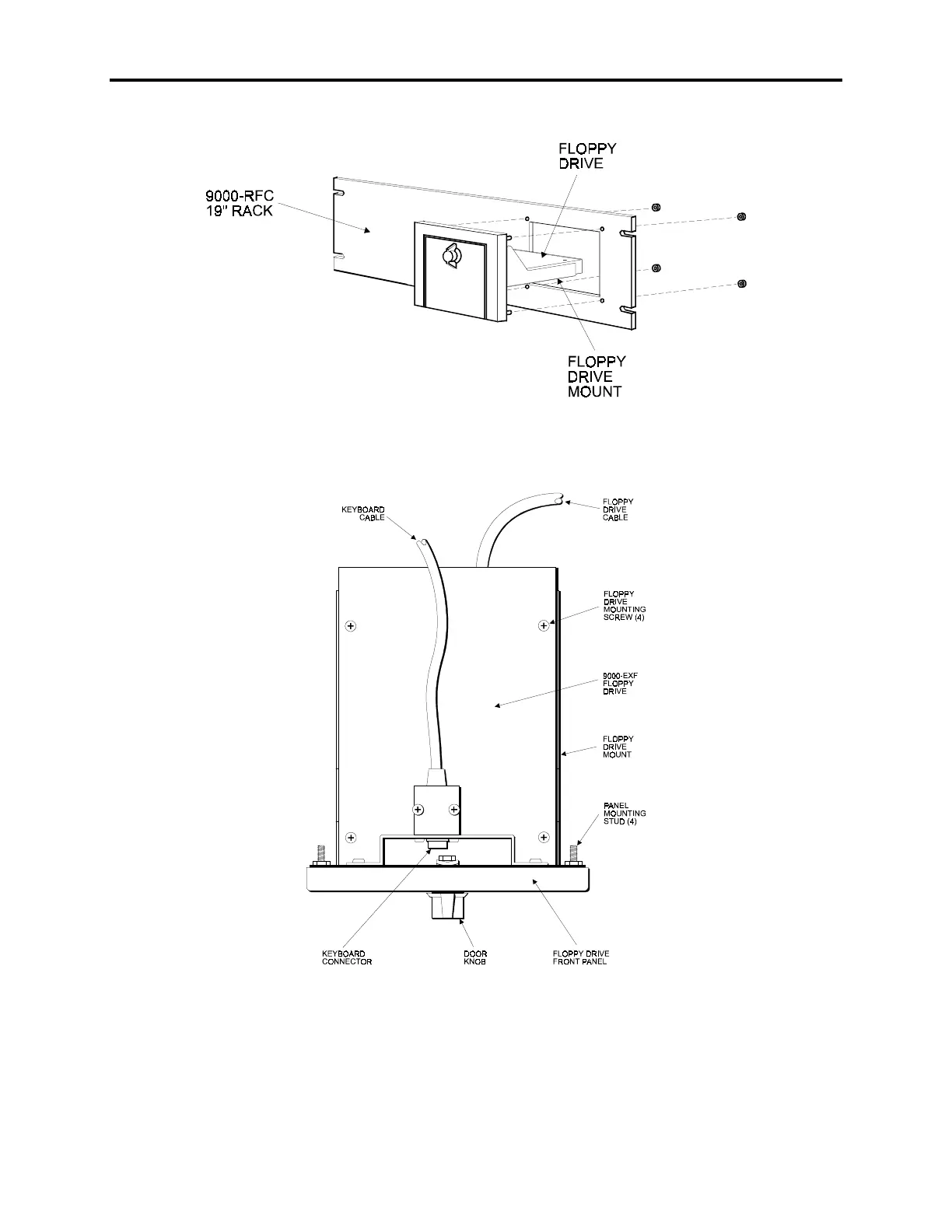

Figure Chapter 3 -7. Floppy Drive - Front Mounting Option
Figure Chapter 3 -8 shows an overhead view of the Front Floppy Kit with the floppy
drive mounted.
Figure Chapter 3 -8. Floppy Drive - Front Mounting Option (top view)
