Xylem CCD 401 User Manual

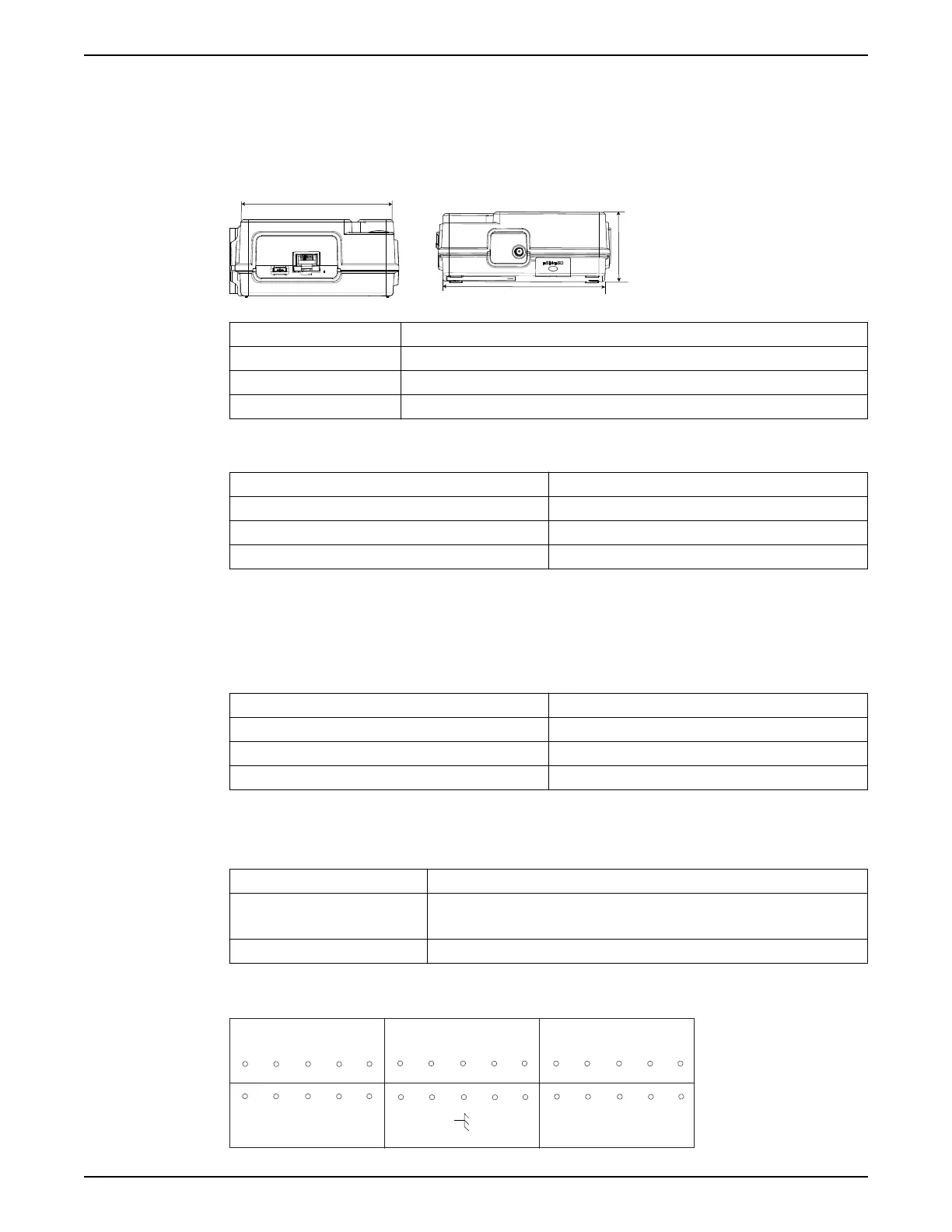

5 Technical Reference
5.1 Dimensions
1
3
2
WS012381A
Part Dimension
1 101 mm (4.0 in)
2 127 mm (5.0 in)
3 46 mm (1.8 in)
5.2 Environmental requirements
Feature Value
Operating temperature -30°C to +55°C (-22°F to +131°F)
Storage temperature -50°C to +85°C (122°F to +185°F)
Operating humidity 95% relative humidity, non-condensing
5.3 Material
• Plastic, blend of polycarbonate (PC) and acrylonitrile butadiene styrene (ABS)
5.4 Electrical data
Feature Description
Supply voltage 24 VDC
Current Maximum 200 mA at 24 VDC
Degree of protection of enclosure IP40
5.5 Radio data
The unit has a radio modem that supports the following bands:
CCD 401 version Network (Frequency/band)
CE (European version) LTE Cat 1 bands 3, 7, and 20
GPRS 900/1800 MHz Fallback
NA (North America version) LTE Cat 1 bands 2, 4, and 12
5.6 Terminals
E01 E02
GND
A
B
GND GNDGND
GND
E06 E07 E09 E10
E21 E24 E26 E27
DC+
DC-
DI1
DI2 DI3 DI4
485
232
TX RX
+24 AI2 AI1
WS012383A
GND
5 Technical Reference
CCD 401 Installation, Operation, and Maintenance Manual 11
