Xylem CCD 401 User Manual

2 Product Description
2.1 Product design
CCD 401 is a wireless unit that is used in pumping stations.
The unit sends data over the Long Term Evolution (LTE) network with fall-back to the 2G or
3G depending on geography and supported radio standard.
The unit allows remote monitoring and data collection from any location.

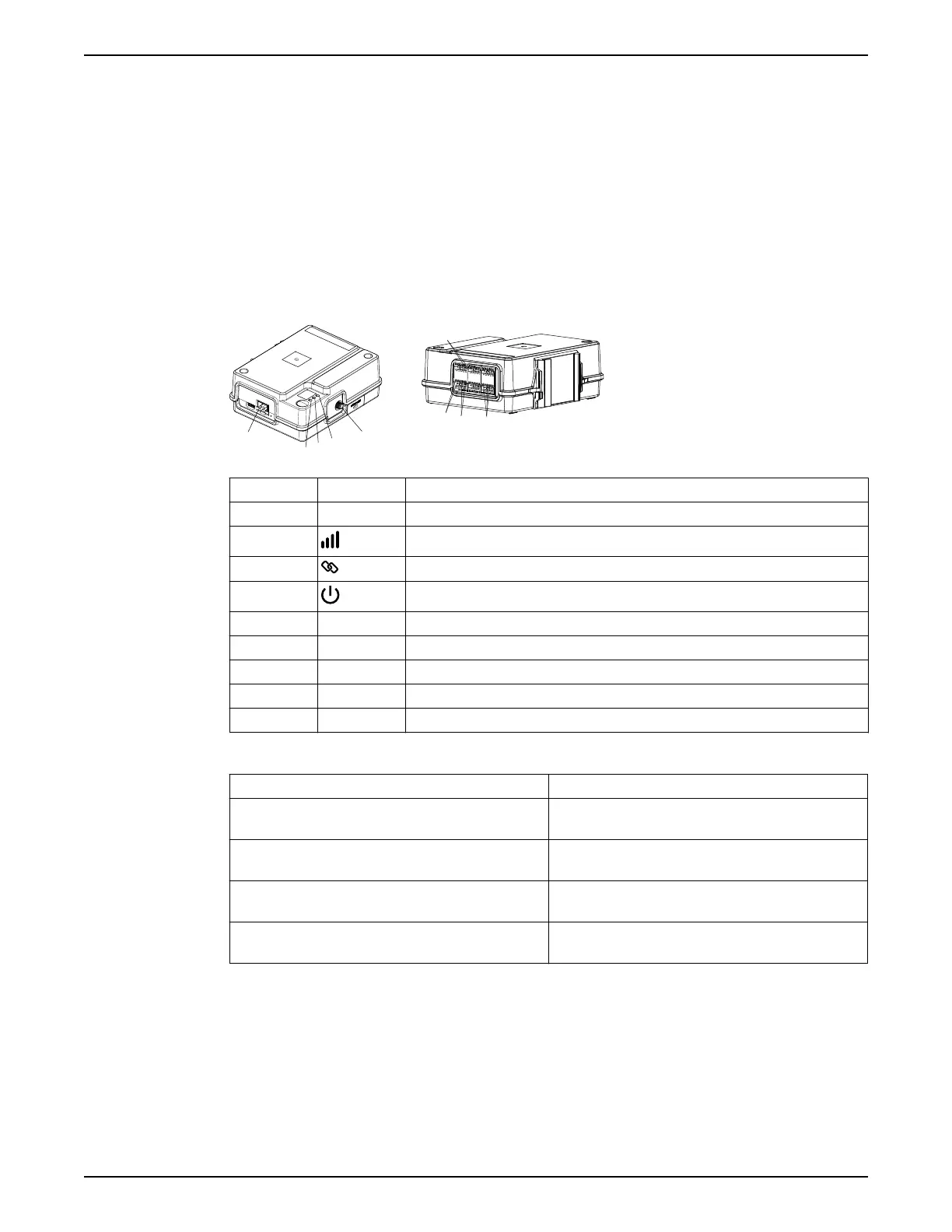

2.2 Parts
1
2
3
5
WS012379A
4
7
8
6
9
Part LED Description
1 - Antenna
2 Network signal strength
3 Yellow shows connection to the cloud service
4 Green shows power is on
5 - Ethernet terminal
6 - Digital and analog input
7 - RS-232 terminals
8 - Input power
9 - RS-485 terminals
Extra parts
Part number Description
851062 2G/3G/4G LTE Antenna wall mount 1.5 m cable
SMA-m
851063 2G/3G/4G LTE Antenna wall mount 4 m cable
SMA-m
851064 2G/3G/4G LTE Antenna cabinet mount 0.5 m cable
SMA-m
851065 2G/3G/4G LTE Antenna cabinet mount 1.5 m cable
SMA-m
2 Product Description
CCD 401 Installation, Operation, and Maintenance Manual 5
