Xylem Flygt 2190 User Manual

WS001348A

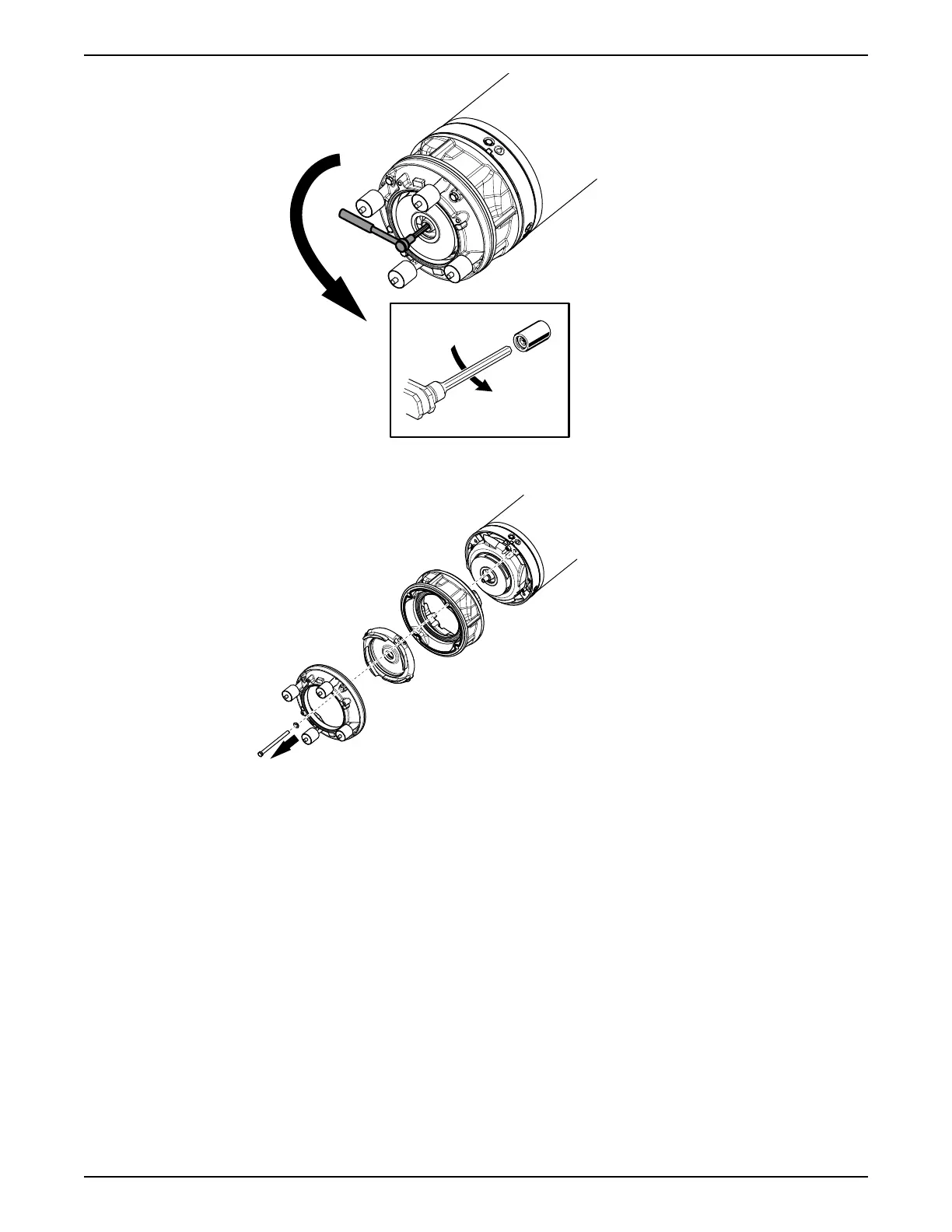

c) Pull off the impeller.
6. Remove the lower diffuser.
WS001345B
7. Remove the inner diffuser.
8. Remove the upper diffuser.
9. Remove the impeller:
a) Lock the impeller to prevent rotation.
Use pliers, a screwdriver, or similar.
b) Turn the adjustment screw counterclockwise until the impeller breaks free from
the shaft.
Use a 12 mm hexagon bit adapter (Allen socket) with a 100 mm (4 in) extension.
6 Maintenance
38 Flygt 2190, 2201 Installation, Operation, and Maintenance Manual
