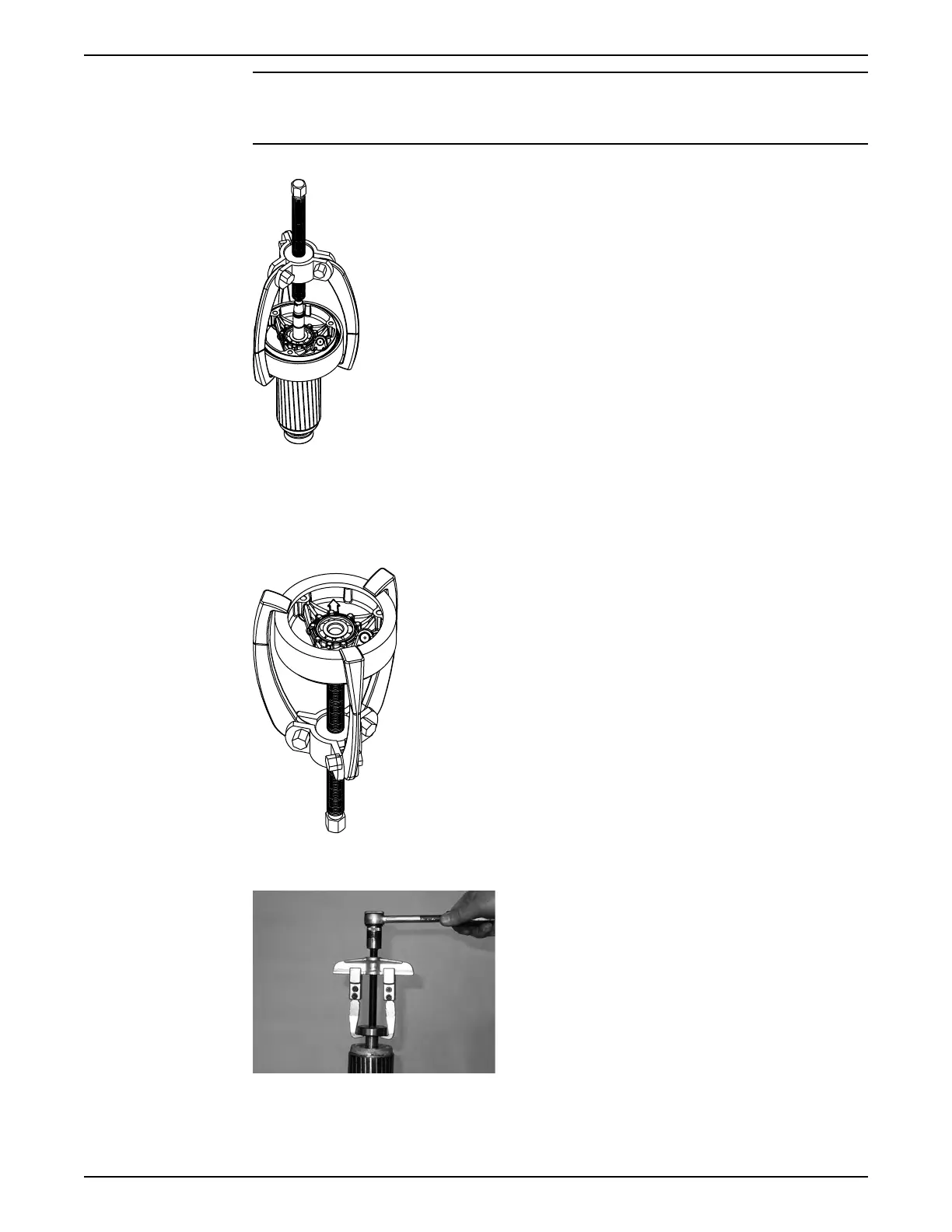

NOTICE:
Only use a puller with three claws. Otherwise, the intermediate piece can be
damaged.
For more information about the tool, see Tools on page 68.
3. Remove the large retaining ring.
Use pliers.
4. Remove the main bearing from the intermediate piece.
Use a press or the dismantling tool and make sure that the intermediate piece is evenly
supported during the removal of the main bearing.
5. Remove the support bearing.
Use a bearing puller.
4.5.9 Remove the pump top: Standard version only
1.
Put the pump in an upright position.
2. Remove the handle:
4 Maintenance
34 2620.172/.281 Service and Repair Instructions
