3.3 Design and layout
Booster set in standard configuration

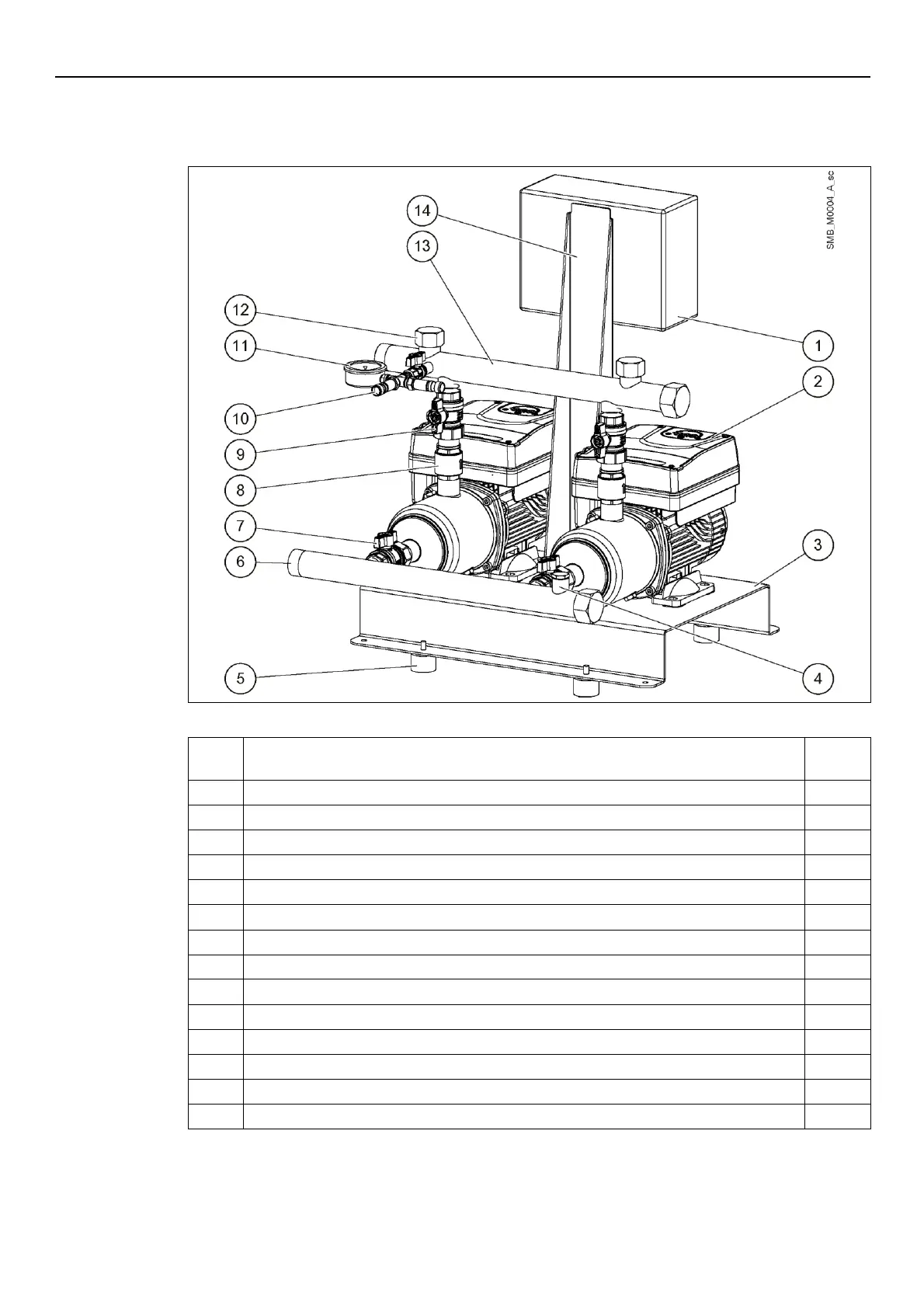

Figure 5: Booster set
Position
number
Description
Q.ty
1.
Distribution panel
1
2.
E series pump units (e-SM units)
n
3.
Base
1
4.
Priming connection
1
5.
Anti-vibration foot
2 x n
6.
Suction manifold
1
7.
On-off valve on suction line
n
8.
Non-return valve
n
9.
On-off valve on delivery line
n
10.
Pressure sensor
n
11.
Pressure gauge
1
12.
Diaphragm pressure tank connection
1/2/3
13.
Delivery manifold
1
14.
Mounting bracket
1
Frequency converter
Refer to the Installation, Operation and Maintenance Manual of the pump units in the Smart Pump Range.
