3. Installation Instruction

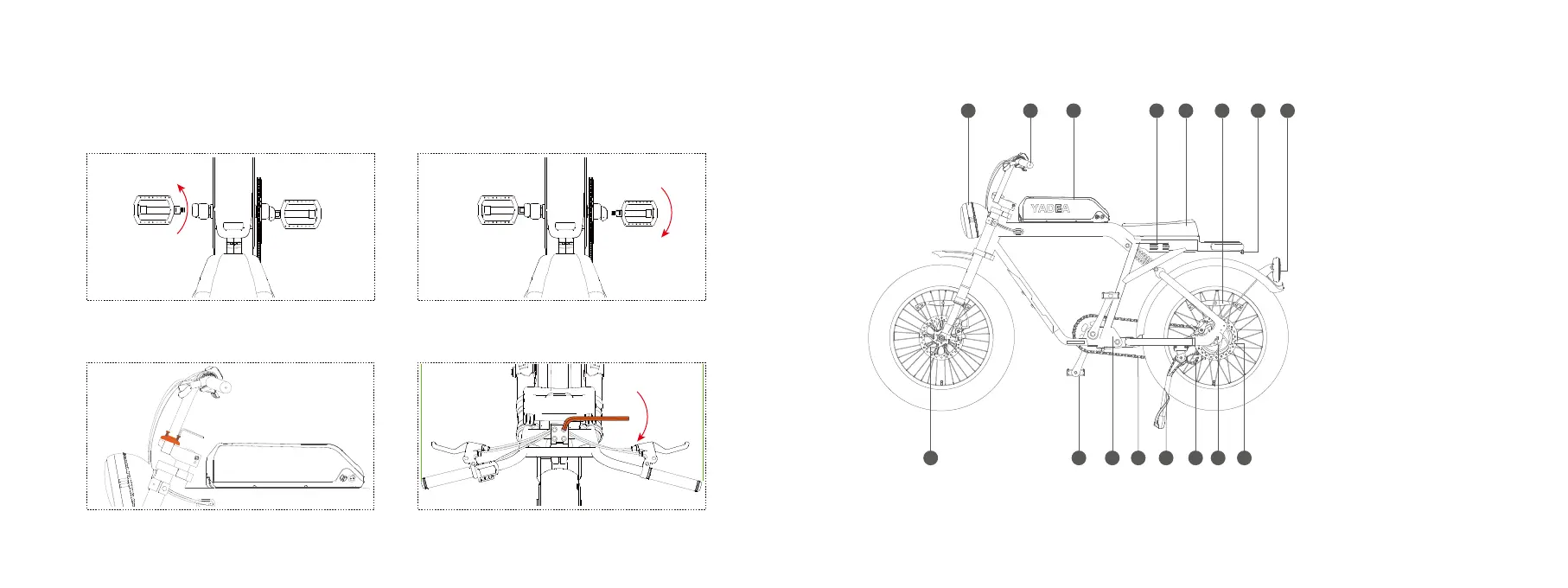

Pedal Installation
Handlebar Installation
Put the handlebar on the stem, align the fixing block with the holes on the stem.
Install 4 bolts with a hex wrench.(locking torque 18-25N.m)
There is an L mark on the left pedal.Turn the left pedal
counterclockwise to install it, tighten it with a 15mm
wrench.
There is an R mark on the right pedal. Turn the right
pedal clockwise to install it, tighten it with a 15mm
wrench.
1 2 3
4 5 6 87
9
1011
14 131516
4. Parts info
12
1.Headlight
2.Handlebar
3.Battery
4.Controller
5.Saddle
6.Wheel reflector
7.Taillight
8.Rear reflector
9.Rear brake disc
10.Motor
11.Chain tension adjuster
12.Side stand
13.Chain
14.VIN
15.Pedal
16.Front brake disc
