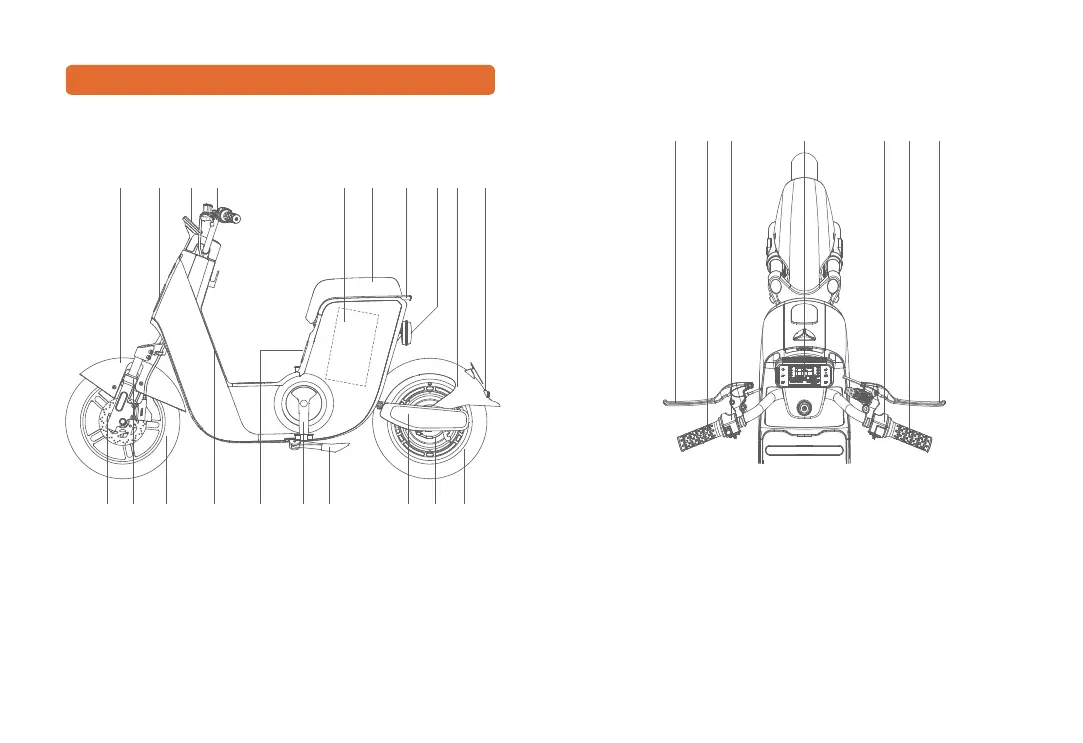

Scooter structure diagram
1.Front fender 2. Headlight 3. Speedometer 4. Handlebar 5. Battery
6. Seat cushion 7. Armrest 8. Taillight 9. Rear fender 10. Rear reflector
11. Rear tire 12. Motor 13. Rear fork protective board 14. Side stand
15. Pedal crank 16. Charging hole 17. VIN number 18. Front wheel
19. Front fork absorber 20. Front disc brake
1.Left rear brake lever 2. Left grip 3. Left switch group
4. Speedometer 5. Right switch group 6. Throttle
7. Right front brake lever
11 12
3.SCOOTER STRUCTURE
