Yakima Baseline Tower - Exploded View: Parts G-T

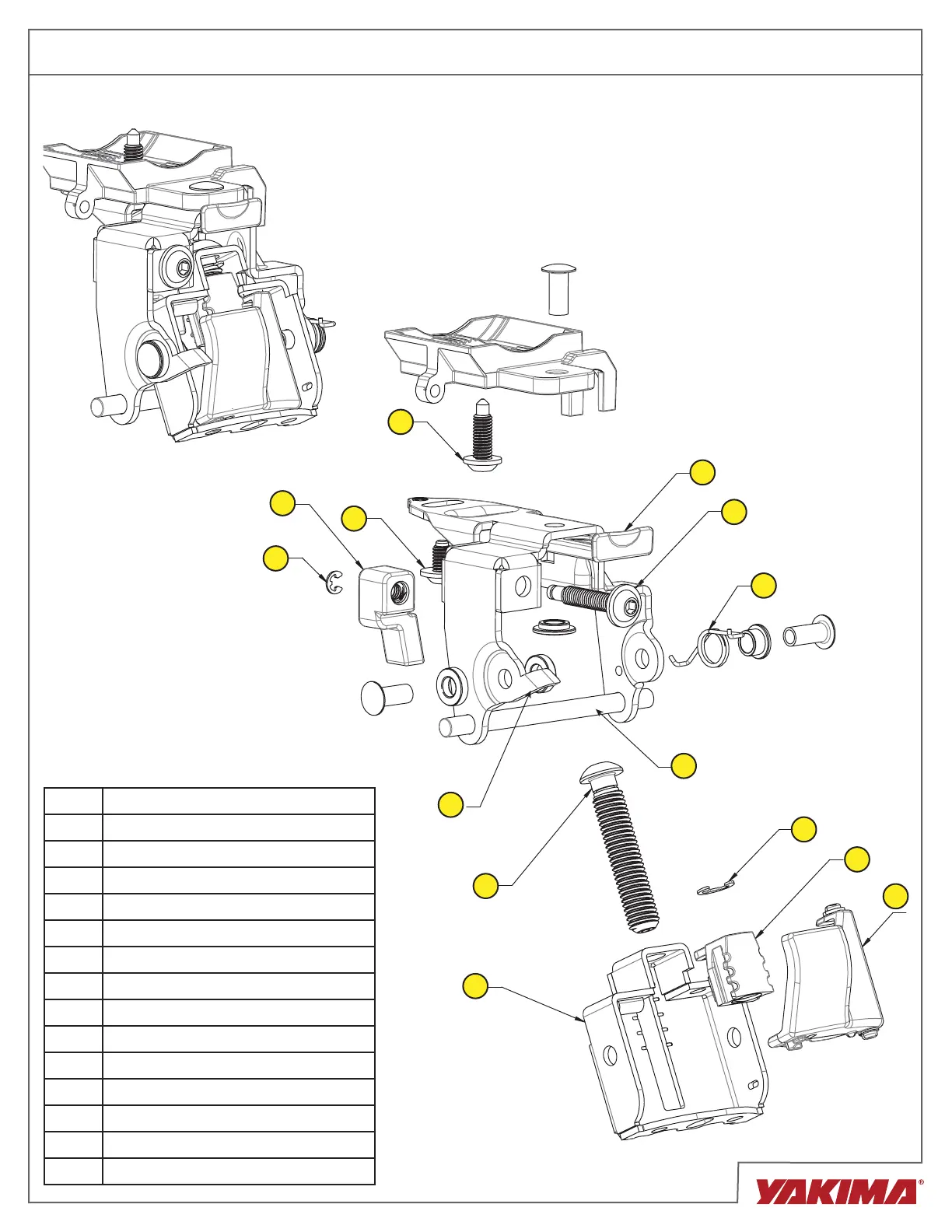

BaseLine Tower Exploded
LETTER DESCRIPTION
G
Pitch / Bar Connection Bolt, BaseLine
H
Toe Adjustment Bolt
I
Clip Swing Nut
J
“E” Clip, Clip Swing Bolt
K
Clip Carrier Swing Bolt
L
Clip Drive Bolt
M
Clip Carrier Body
N
Clip Drive Bolt Security Door
O
Clip Nut with DropHook
™
P
“E” Clip, Clip Drive Bolt
Q
Foot Mounting Post, BaseLine
R
Clip Carrier Spring
S
Clip Swing Bolt
T
Pitch/Bar Connection Security Bolt
