Yale 680F - Trim Assembly Instructions; 681 F Nightlatch Function Offset Pull Trim Assembly; 684 F Mortise Nightlatch Function Offset Pull Trim Assembly

2
R
Cylinder
684F
Mortise Nightlatch Function
Offset Pull Trim
681F
Nightlatch Function
Offset Pull Trim

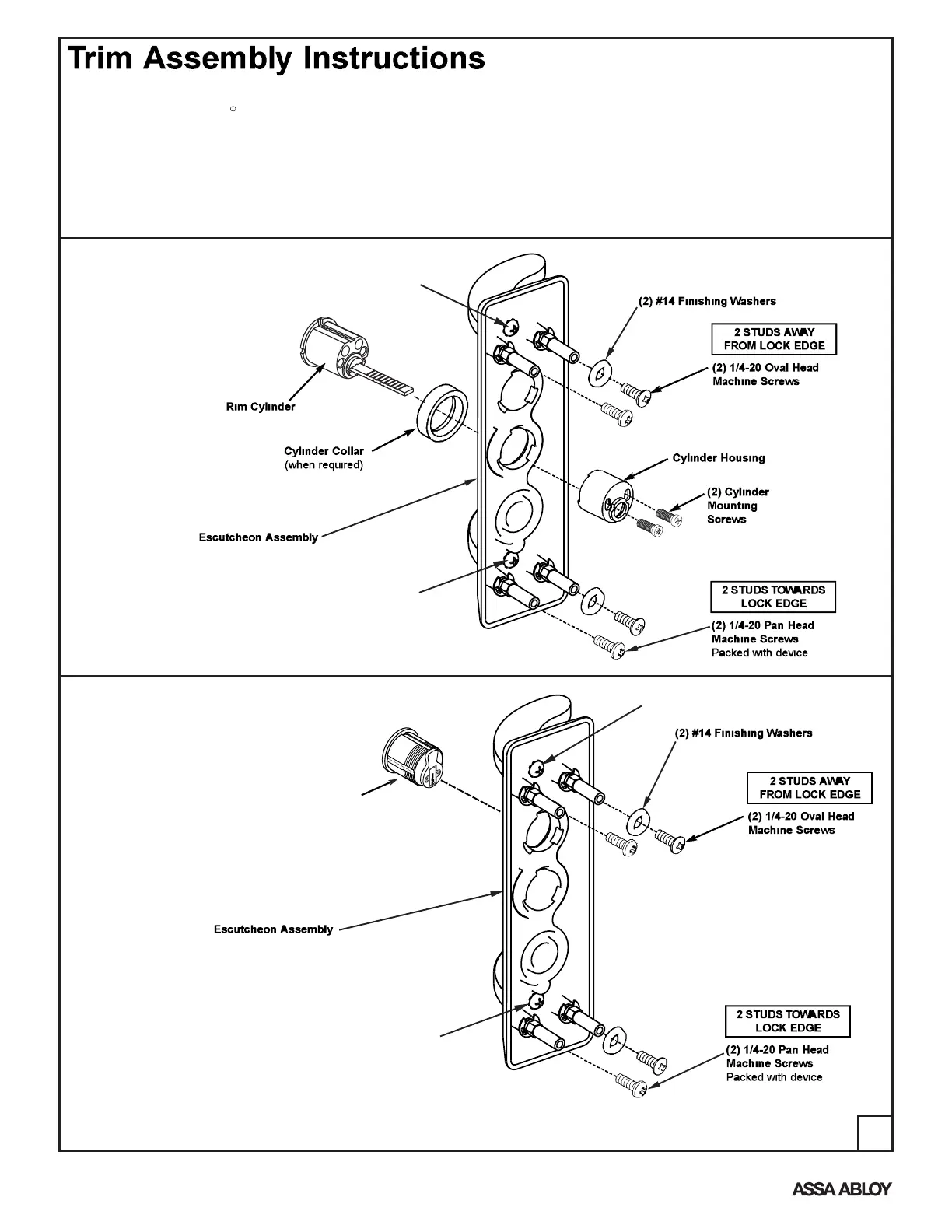

1. Check cylinder components.
NOTE: Refer to Yale cylinder chart in catalog for collar sizing.
2. Assembly cylinder.
Insert cylinder housing prongs into matching notches of escutcheon.
Pass cylinder tailpiece thru cylinder collar (when required) and hole
in cylinder housing.
Fasten cylinder using (2) mounting screws. DO NOT OVERTIGHTEN SCREWS.
LHR Shown
To change handing, remove
screws labeled “A” and rotate
Handle Assembly 180°
LHR Shown
To change handing, remove
screws labeled “A” and rotate
Handle Assembly 180°
“A”
“A”
“A”
“A”
