3
VERTICAL
REFERENCE
C
L
(Device and Trim)
2-1/16
(52)
680F
684F
681F
C, X
HORIZONTAL
REFERENCE
C
L
(Device and Trim)

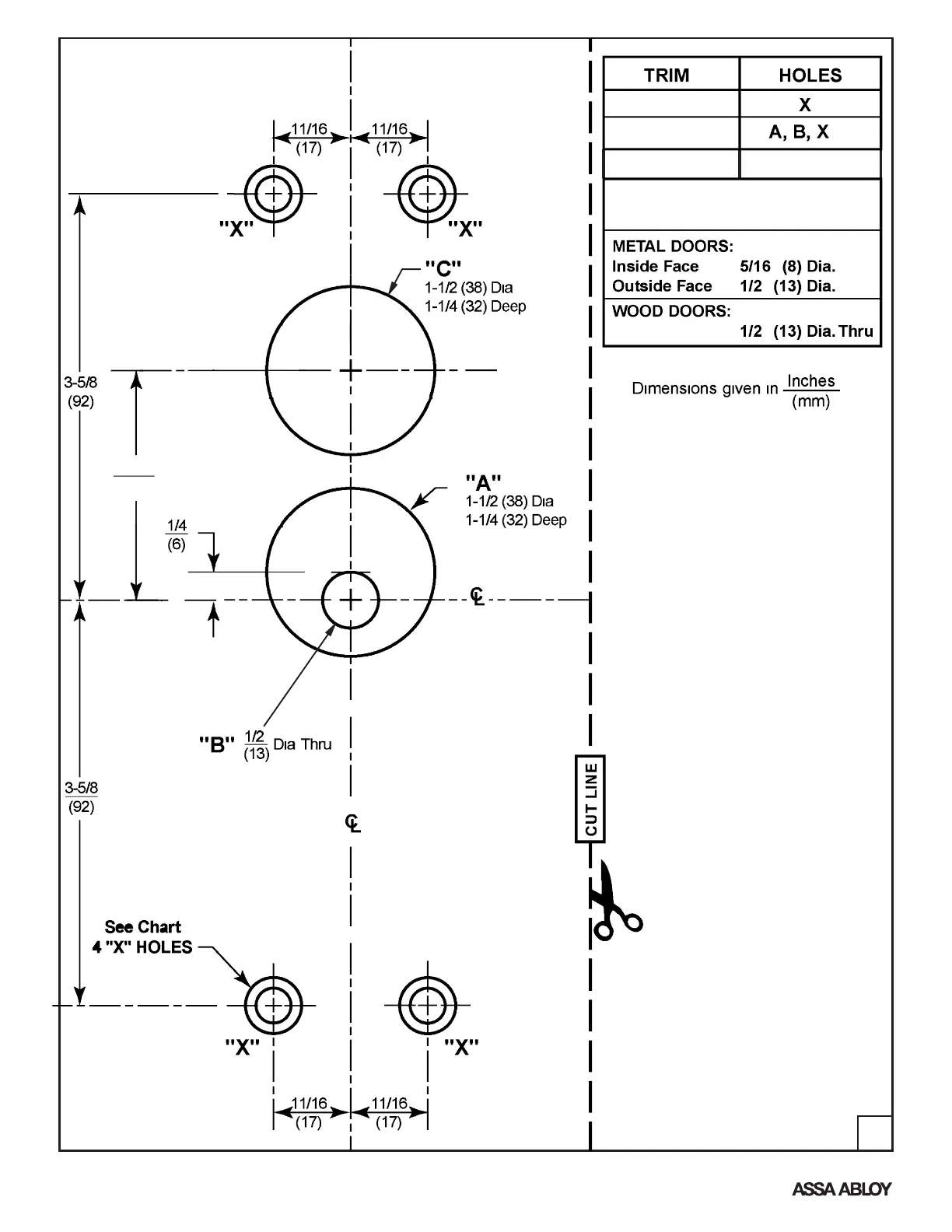

Outside Door
Face Trim
Template
For Holes Marked “X”
See Below
CAUTION: Office copiers and facsimile mach-
ines may change the size of a drawing and make
the template inaccurate to use as a door marker.
If this is not the original template packed with the
trim, use only the holes on the door (do not use
template as a door marker).
"
"
"
An ASSA ABLOY Group brand
80-8470-0680-000 (01-13)
