Flywheel Repair 600 YRM 496
Flywheel Repair
NOTE: This flywheel repair is for GP/GLP/
GDP16-20AF/BF (GP/GLP/GDP030-040AF/BF),
GC/GLC030-040AF, and GLP/GDP16-20AF
(GP/GLP/GDP030-040AF) models.
REMOVE
1. Remove capscrews for flywheel. Then remove fly-
wheel and flange. See Figure 51.
2. If necessary, remove adapter plate.
INSTALL
1. If adapter plate for the torque converter housing
was removed, install it on engine. See Figure 51.
Tightencapscrewsto43to51N•m (32 to 38 lbf ft).
2. Install flange and flywheel on crankshaft.
3. Apply thread-locking adhesive on threads of cap-
screws. Then install capscrews and lockwashers.
Tighten capscrews to 96 to 103 N•m (71 to 76 lbf ft).
NOTE: EARLIER MODEL TORQUE CONVERTER HOUSING IS SHOWN. LATER MODEL IS SIMILAR.
1. FLANGE
2. FLYWHEEL
3. DRIVE PLATE
4. TORQUE CONVERTER
5. ACCESS COVER
6. TORQUE CONVERTER HOUSING

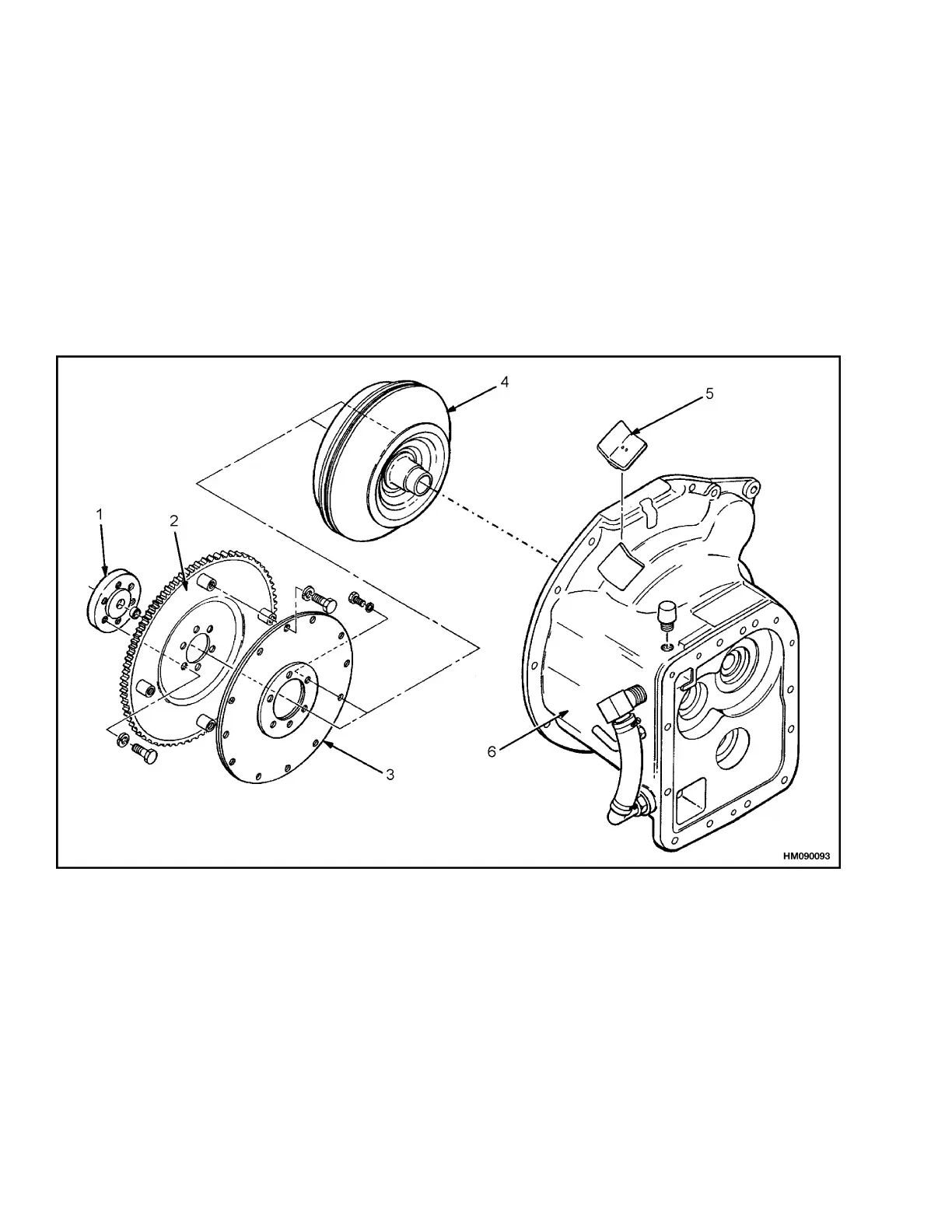

Figure 51. Flywheel and Torque Converter
