1300 YRM 1330 Maintenance and Repair
CAUTION
Make certain to use the proper magnetic plug for the
drain plug. The drain plug is not interchangeable
with the fill and check plugs.
14. Fill transaxle with fluid to proper level:
a. Install drain plug with new sealing ring and
tighten to 22 N•m (192 lbf in).
NOTE: Each transaxle requires approximately 0.60 liter
(0.63 qt) of transmission fluid.
b. Filltransaxleuntilfluidbeginstoemergefrom
check hole.
c. Install check and fill plugs with new sealing
rings and tighten to 22 N•m (192 lbf in).
15. Connect battery connectors, turn key switch to ON
position, and test lift truck for proper operation.
1. PRESSURE PLATE
2. BRAKE DISC (OUTER
SPLINED)
3. BRAKE DISC (INNER
SPLINED)
4. PLUG
5. SEALING RING
6. SCREW
7. INPUT SEAL
8. SNAP RING
9. COVER
10. O-RING
11. SPRING
12. PISTON
13. RING
14. PIN
15. BLEEDER VALVE
16. PLUG
17. SPEED SENSOR
18. SCREW

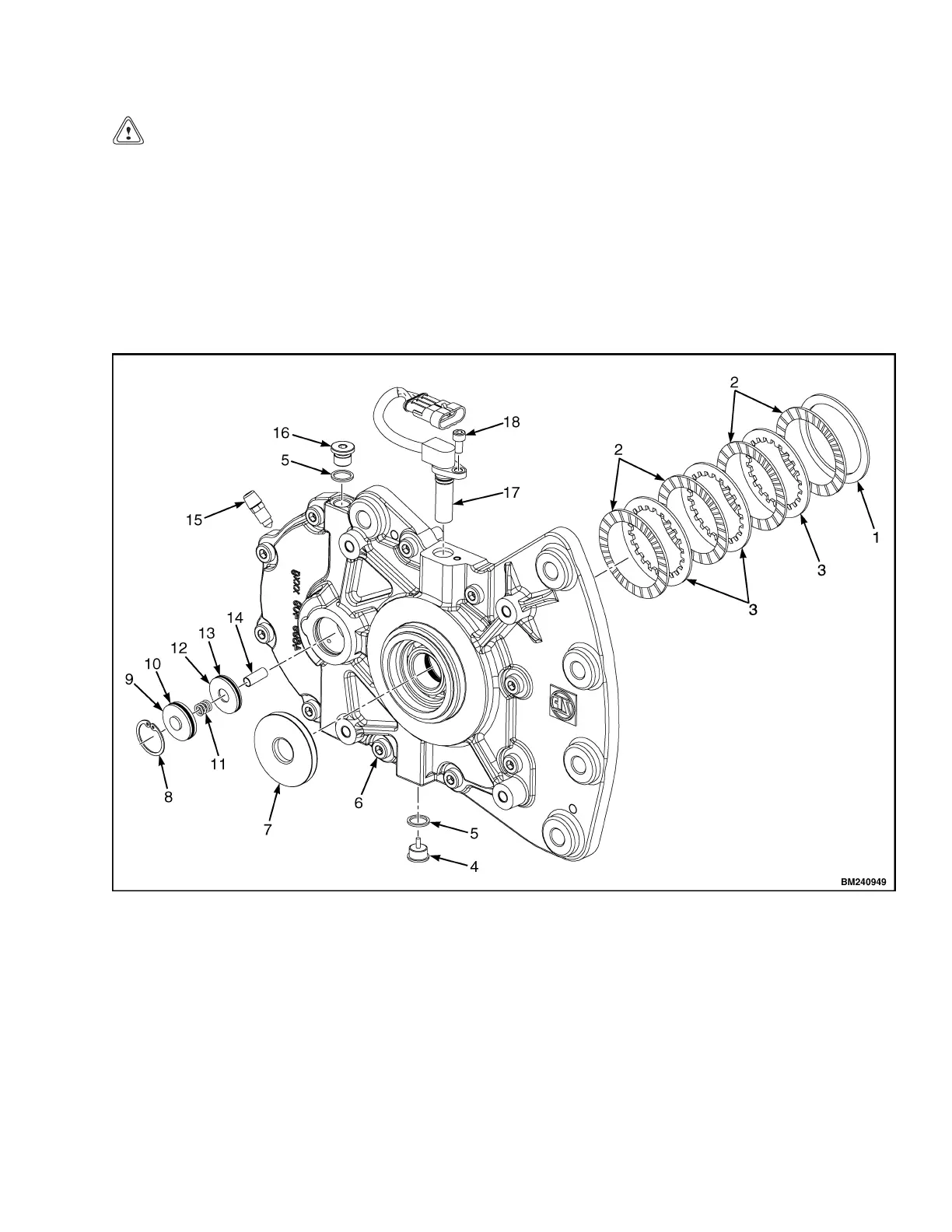

Figure 21. Brake Discs
