Description
The frame is one weldment and includes the hydraulic
tank and fuel tank for gasoline or diesel fuel. See Fig-
ure 1 or Figure 2.
There is a counterweight for each capacity of lift truck.
The counterweights are similar in appearance, but are
different weights. See Table 2.
The muffler is fastened to the frame inside the coun-
terweight.
The overhead guard, cowl, and hood are installed on
the frame. The hood is connected to the frame with
hinges. Two gas-controlled springs provide assis-
tance when raising the hood and hold the hood in the
open position. The floor plate and side covers can be
removed for access to the engine, transmission, and
other components.

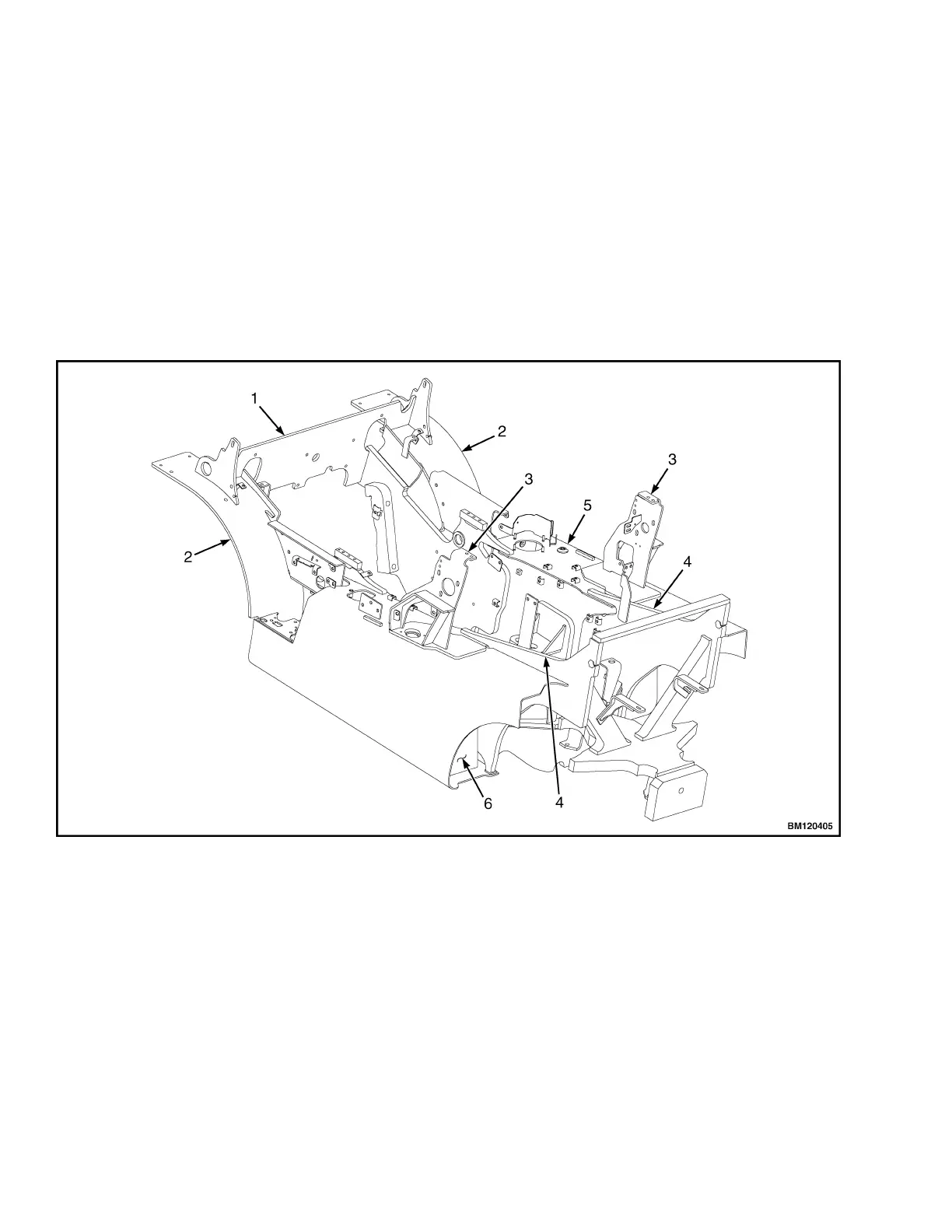

1. COWL PLATE
2. FENDERS
3. HOOD MOUNTS
4. COUNTERWEIGHT MOUNTS
5. HYDRAULIC TANK
6. FUEL TANK (GAS OR DIESEL)
Figure 1. Frame for Lift Trucks with Single Hydraulic Tank
Description 0100 YRM 1243
2
