1. RAIN TOP

2. CAPSCREW

3. WHEEL NUT

4. LOCKNUT

5. WASHER

6. LEFT BRACKET

7. RIGHT BRACKET

8. CENTER BRACKET

9. BUSHING

10. SEALER

11. OVERHEAD GUARD

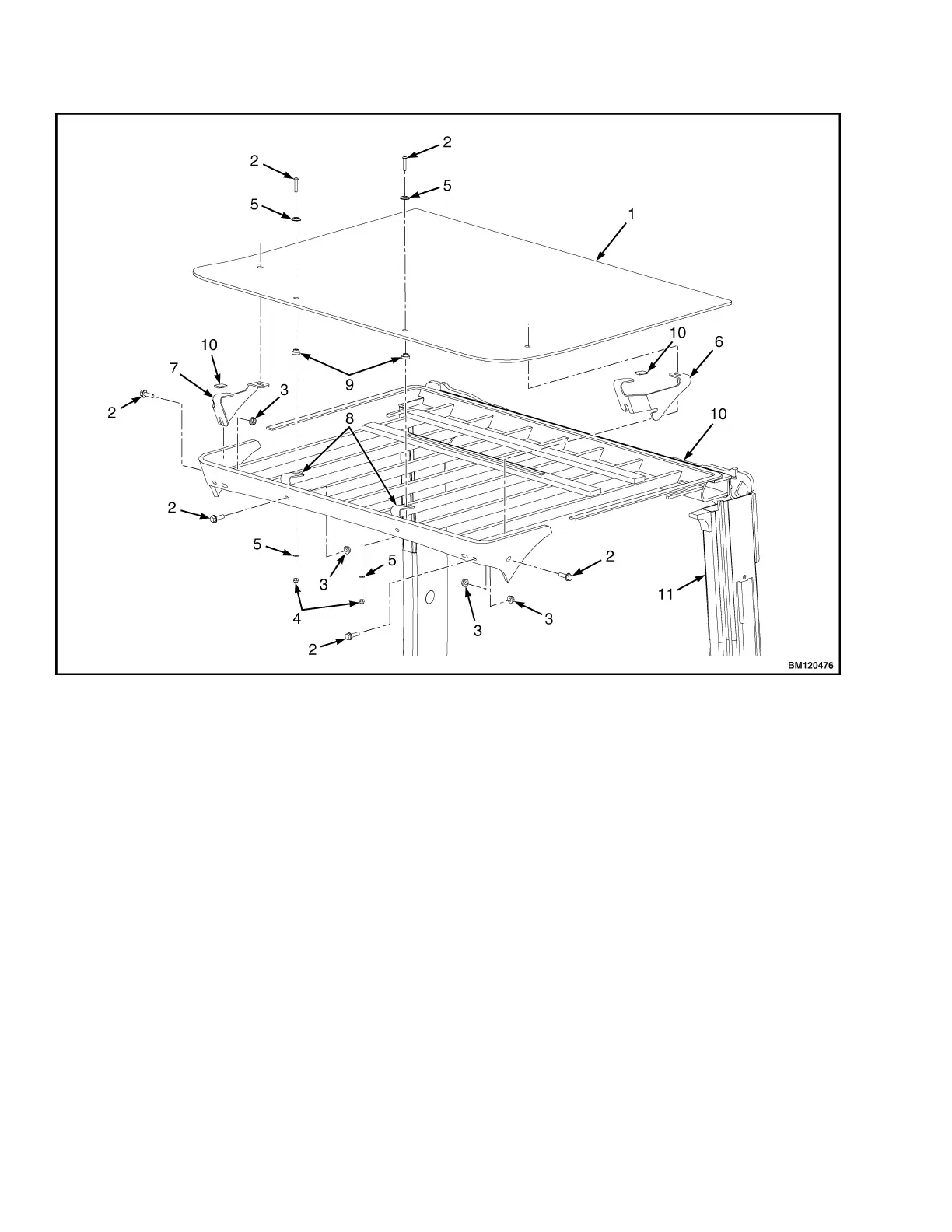

Figure 19. Overhead Guard Rain Top

Overhead Guard Replacement 0100 YRM 1766
