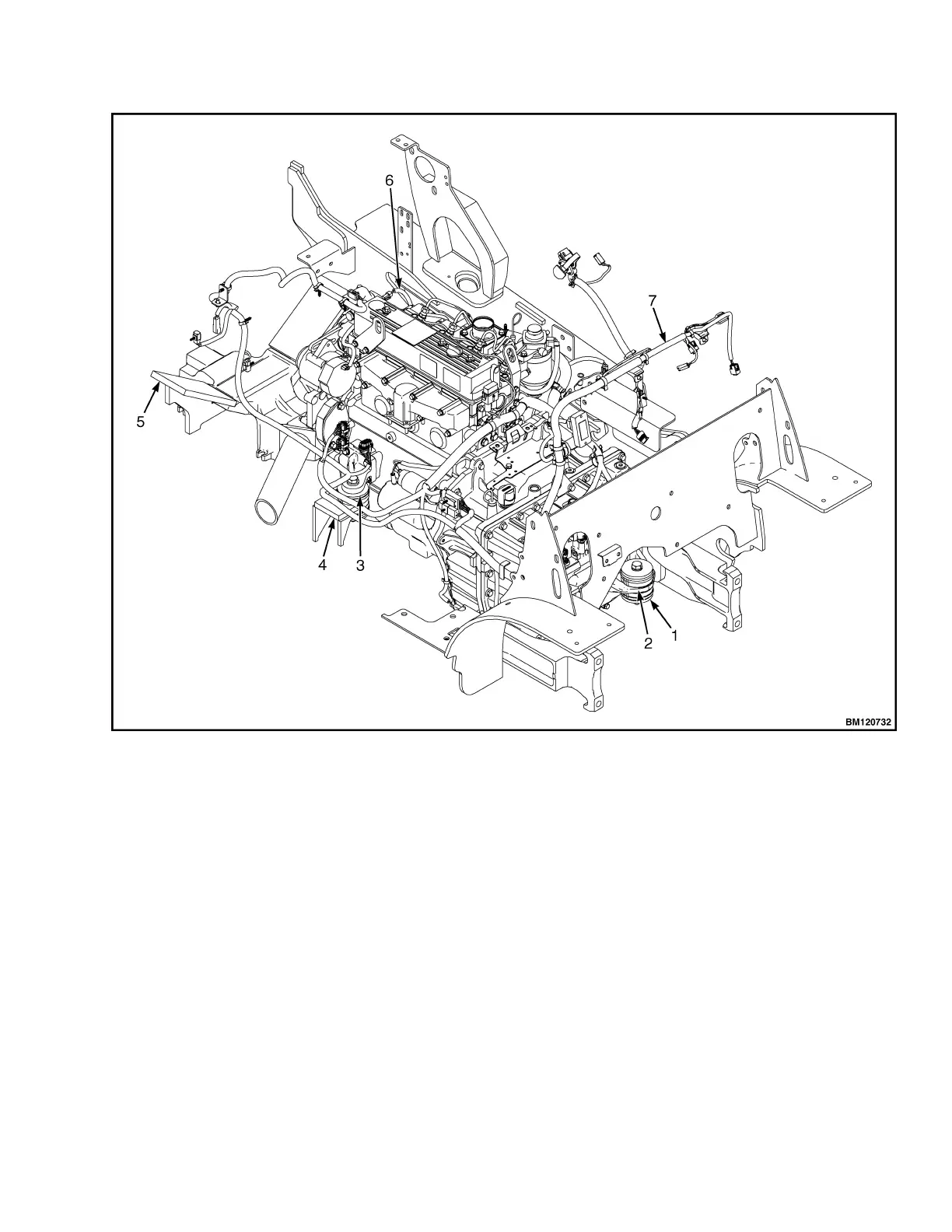

NOTE: PART OF THE FRAME NOT SHOWN FOR CLARITY. LIFT TRUCK MODELS GDP25LX (GDP050LX)
(B974) SHOWN.
1. TRANSMISSION ISOLATOR
2. TRANSMISSION MOUNTING BRACKET
3. ENGINE ISOLATOR
4. ENGINE MOUNTING BRACKET
5. FRAME
6. ENGINE WIRING HARNESS
7. CHASSIS WIRING HARNESS
Figure 29. Yanmar Diesel Engine and Transmission Mounting Arrangement
0100 YRM 1766 Engine Replacement
31
