NOTE:
TOP VIEW OF DASH SHOWN.
A.
INDICATES TO PULL UP TO UNLATCH
1.
ALLEN SCREWS
2.
COWL
3.
UPPER STEERING COLUMN COVER
4.
LOWER STEERING COLUMN COVER

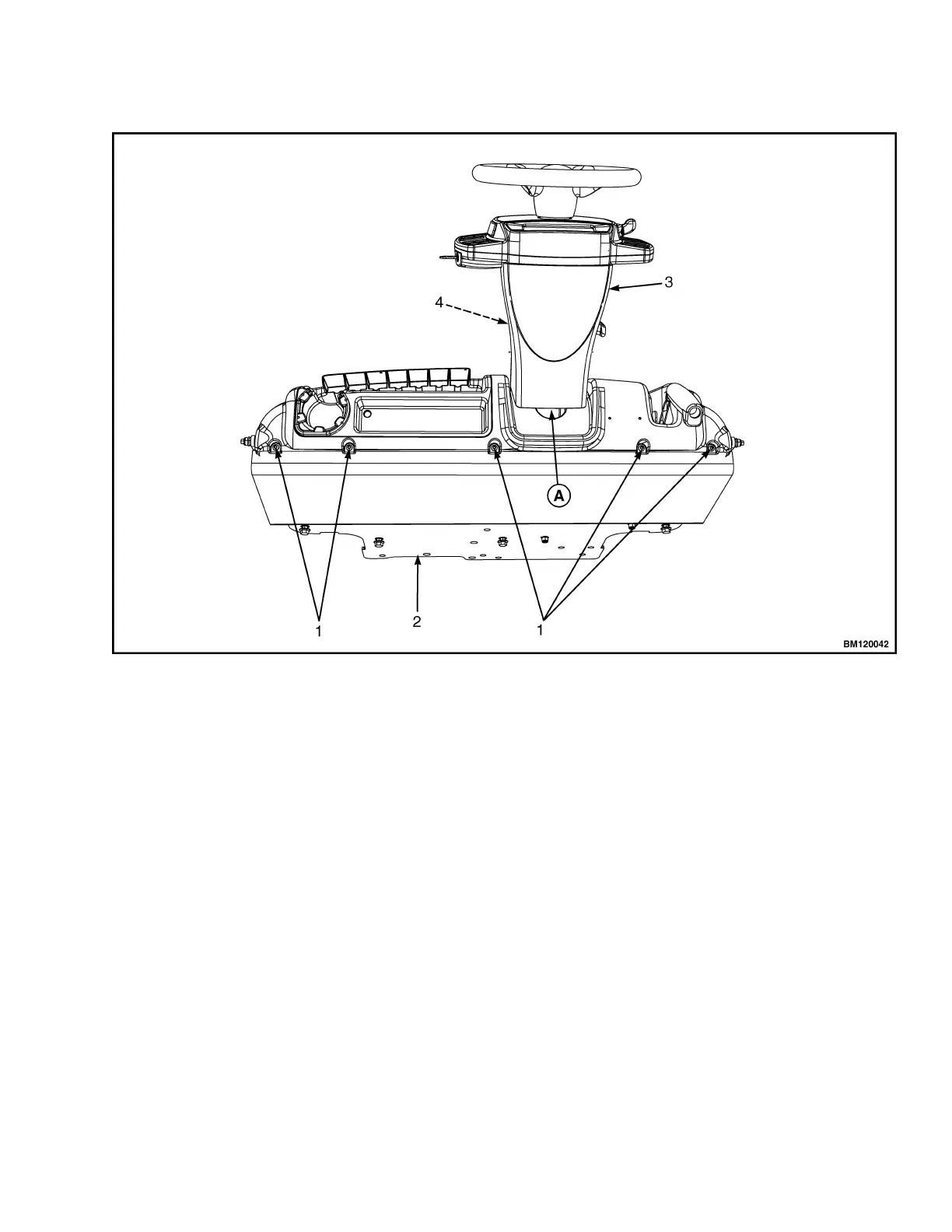

Figure 5. Remove Dash From Cowl
0100 YRM 1243
Hood, Seat, and Side Covers Replacement
7
10
12
Table of Contents
Service Manual Contents
1
Safety Precautions
2
Maintenance and Repair
2
Table of Contents
3
General
5
Frame for Lift Trucks with Single Hydraulic Tank
6
Description
6
Frame for Lift Trucks with Dual Hydraulic Tanks
7
Hood, Seat, and Side Covers Replacement
8
Remove
8
Install
8
Hood and Seat Arrangement
9
Side Covers, Floor Plate, and Cowl Components
10
Remove Dash from Cowl
11
Remove Seal Plate from Dash
12
Gas Spring Installation
13
Gas Spring Installation, Holes for Installing Rod Ends
14
Hood Latch Adjustment
15
Steering Column Repair
16
Steering Column and Cowl
16
Steering Wheel Remove/Install
16
Description
16
Disassemble
17
Steering Column Remove/Install
17
Steering Column Assembly, Lift Trucks Manufactured before January
18
Steering Column Assembly, Lift Trucks Manufactured after January
19
Assemble
20
Clean
20
Inspect
20
Install
20
LPG Tank and Bracket Replacement
21
Counterweight Replacement
21
Remove
21
Counterweight Installation
23
Install
24
Weight of Counterweights
24
Counterweight Replacement
28
Tow Pin
28
Remove and Install for Lift Truck Models GLP/GDP40VX5/VX6; GLP/GDP45SVX5, GLP/ GDP45VX6; GLP/GDP50-55VX (GP/GLP/GDP080, 090, 100, 110, 120VX) (F813, G813, H813)
28
Remove and Install for Lift Truck Models GLC55SVX
28
GLC100VXBCS; GC/GLC120SVX; and GC/GLC120VXPRS) (E818, F818) and GLP
28
Gdp40Vx5/Vx6; Glp/Gdp45Svx5, Glp/Gdp45Vx6; Glp/Gdp50-55Vx (Gp/Glp/ Gdp080, 090, 100, 110, 120Vx) (J813)
28
Disconnect Air Intake Hose
29
Install
29
Remove
29
LED Tail, Backup, and Brake Lights, Replace
30
Overhead Guard Replacement
29
Description
30
Overhead Guard
30
Operator Restraint System
31
Operator Restraint System Replacement
30
Engine Replacement
32
Remove Engine Only
32
Engine and Transmission Mounting Arrangement for Kubota Engines
34
Glp/Gdp45Vx6; Glp/Gdp50-55Vx (Gp/Glp/Gdp080, 090, 100, 110, 120Vx) (F813)
34
GM 4.3L LPG Engine and Transmission with Single Hydraulic Tank
36
Top View
37
Left Side View
37
GM 4.3L LPG Engine and Transmission with Dual Hydraulic Tanks
38
Cummins QSB 3.3L Diesel Engine and Transmission
40
Power Distribution Module
