Yale IA-230

9
9

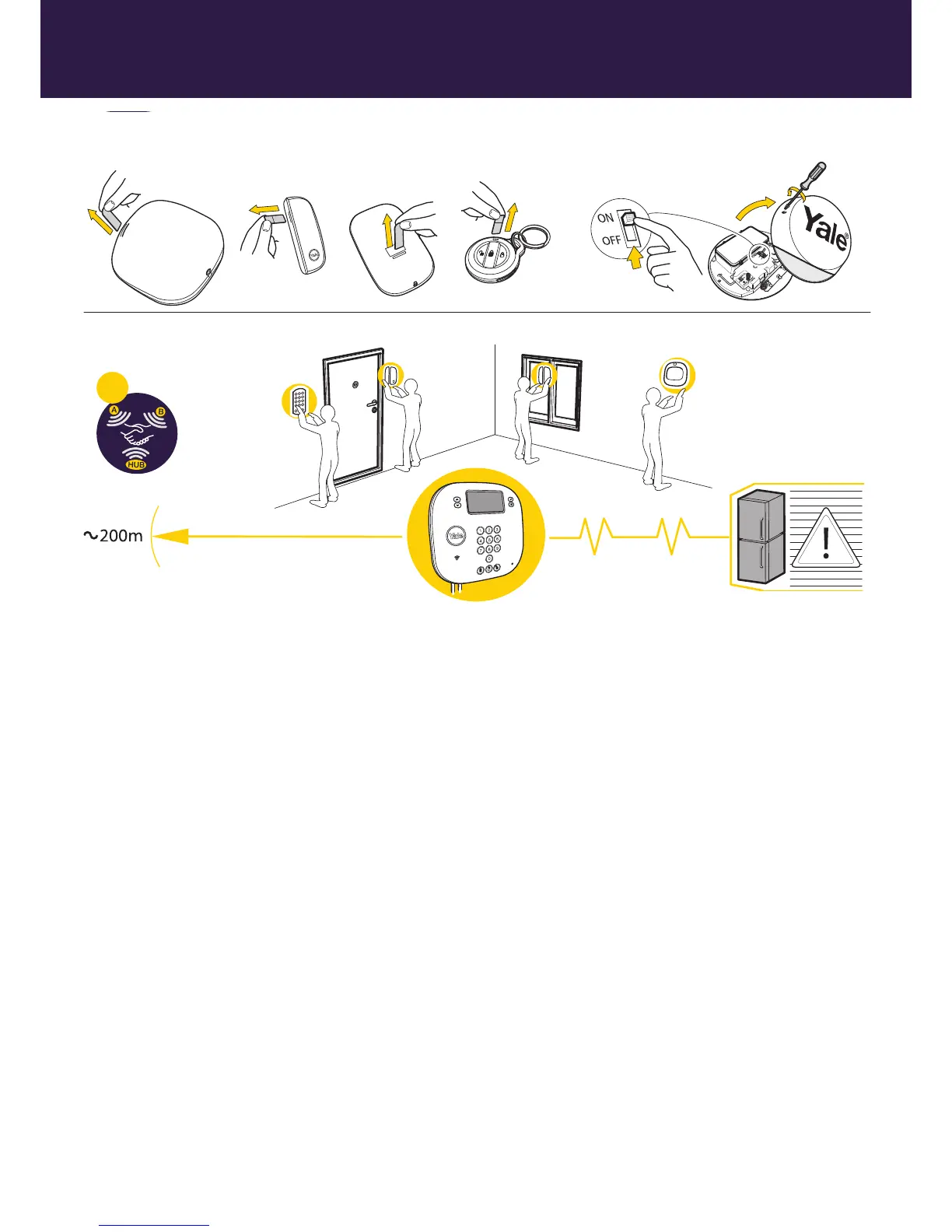

Test your planned location of devices and check the signal strength on the panel screen.
Activate the devices by removing the battery strips. All devices in the kit are pre linked, If you have
purchased extra accessories in addition to the kit, you’ll need to pair them to the system, following
the instructions on page 18
Device Installation: Test device signal
(10)
PIR Zone03 E
T:9 PIR 1
If signal strength is below 2 please try
to move the device to a different
location and repeat connection test.
After all devices have been tested in the desired location -
Press to exit Test mode
Press or button and enter your
PIN code to access the main menu
Scroll down using button and select
“Test” and press
Select “Device” and press to enter the
panel into learning mode
Press button to test connection
4
5
8 9
page 25.
4.Device Installation
•
