An ASSA ABLOY Group brand
80-9510-0070-000 (03-16)
13
3
2
1
14

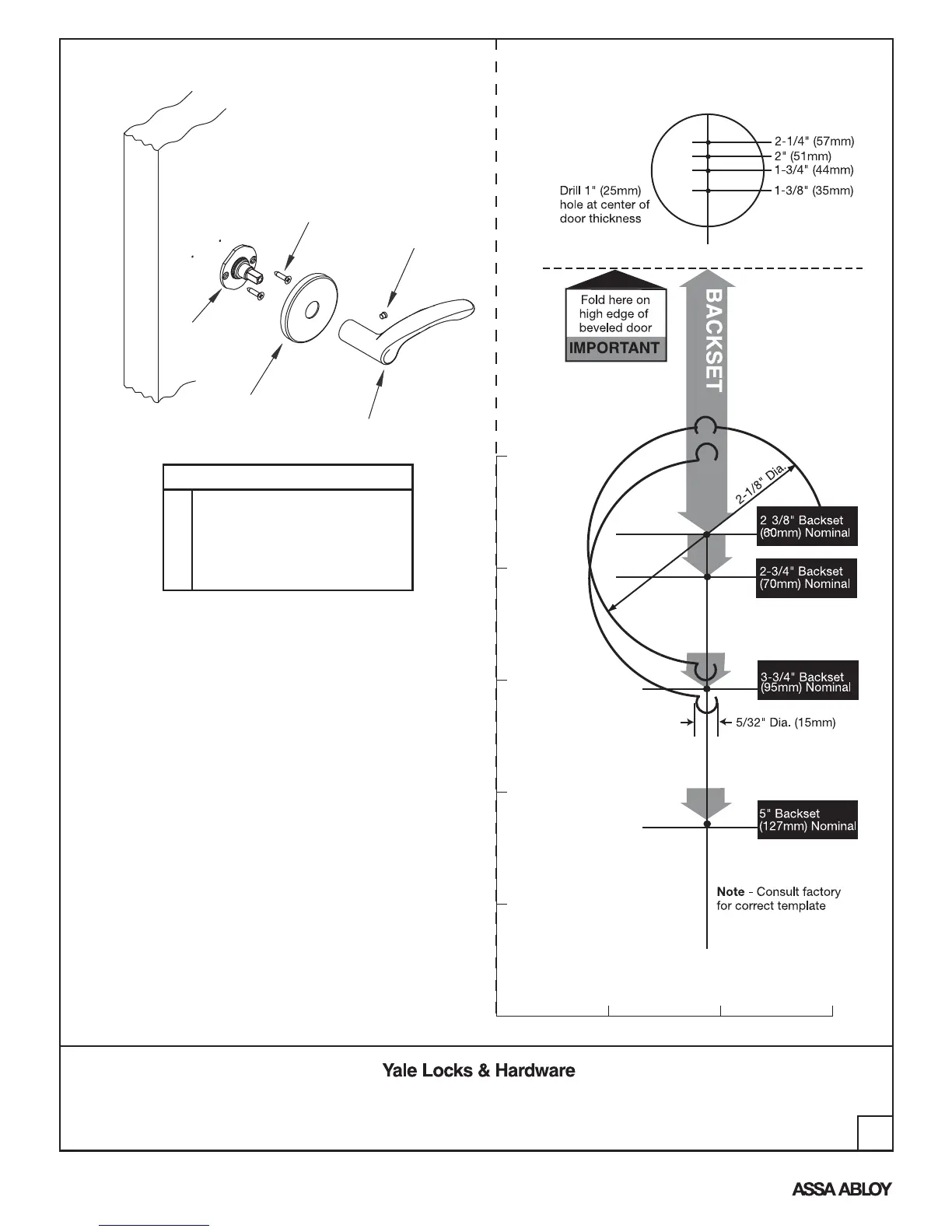

1. Prepare Door
A. Select proper backset on door marker
(page 3) and locate 38" from finished
floor.
B. Center punch 2 places as noted on
door marker.
2. Install Mounting Plate Assembly
A. Locate holes in mounting plate assembly
over center punch marks.
B. Install (2) screws and tighten to
secure mounting plate assembly to door.
3. Install Rose and Lever
A. Install rose onto mounting plate assembly
and rotate clockwise to tighten.
B. Install lever onto spindle. Insert set screw
into hole.
Install RL255S Surface
1 Lever
2 Set Screw
3 Rose
13 Screws
14 Mounting Plate Assembly
Parts List
(1)
(1)
(1)
(2)
(1)
Note: See Door Marker for Dummy Functions on page 3.
4
1" 2" 3"
5"
4"
3"
2"
1"
Copyright © 2016, Yale Security Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Support Tel 800.438.1951 • www.yalelocks.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
