Yale SDA16 User Manual

An ASSA ABLOY Group brand
80-9470-0330-000 (01-13)

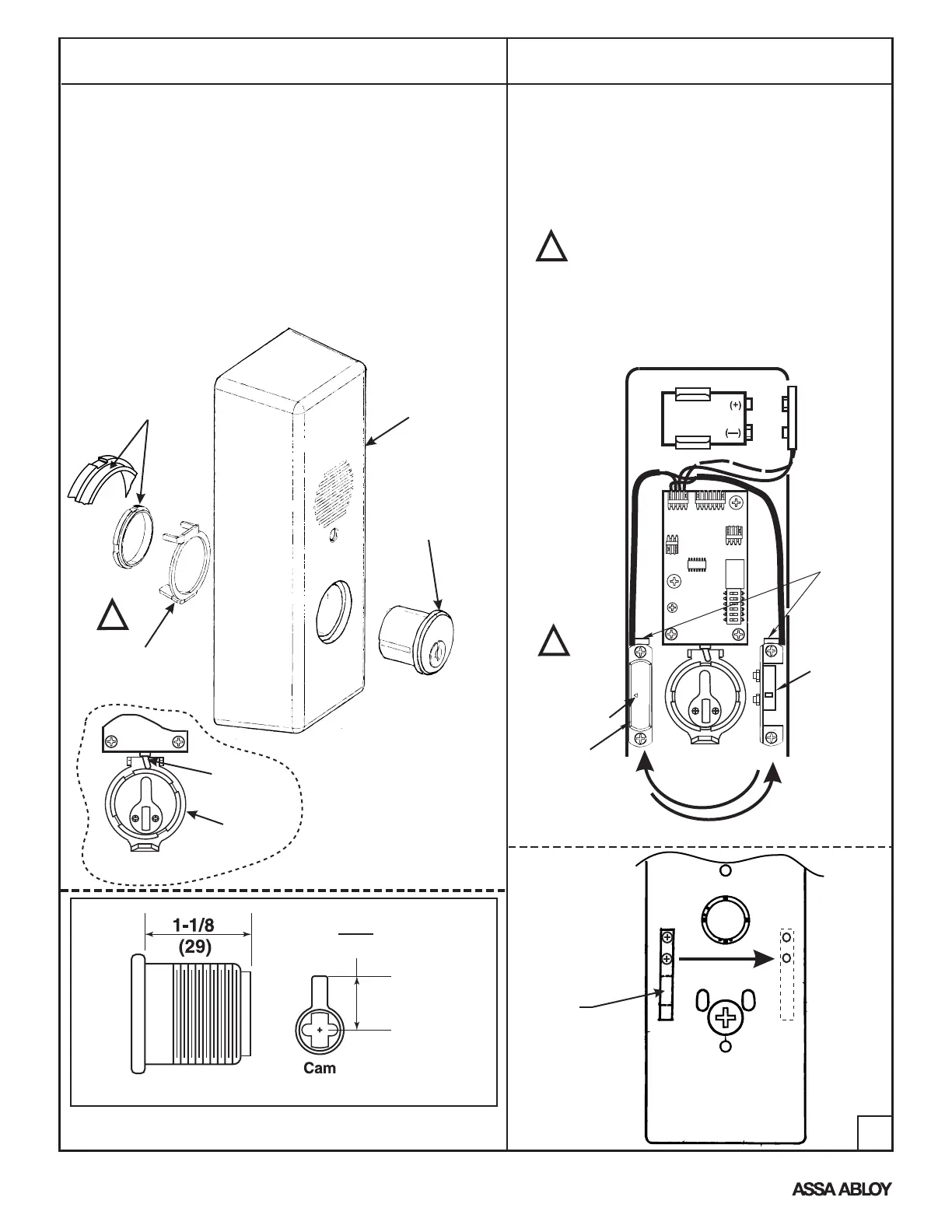

TYPICAL MORTISE CYLINDER
Use standard 1-1/8" mortise cylinder with cam.
Cylinder Collar is not required.
Cylinders
3. Device Handing Change2. Installing Cylinder
1. Insert mortise cylinder through hole in the Housing.
2. Orient keyway to the 6 o’clock position, adjust as needed.
3. Assemble cylinder actuator onto the cylinder from inside
as shown below. The split tabs should be oriented towards
the controller board (12 o’clock position), trapping the
toggle switch on the printed circuit board. Fig. 4
Caution: Carefully install Actuator without damaging the
Toggle Switch.
4. Attach cylinder nut to cylinder, rotate clockwise until secure.
NOTE: Actuator should be free to rotate, by installing in
position shown.
Orient
Arrow
towards
Door Edge
1. Remove (2) screws retaining the magnet sensor
and set components aside.
2. Remove (2) screws retaining the Tamper Switch and
exchange locations of both components (See Figure 5).
3. Reattach components with the screws.
NOTE: a.The arrow on the magnet sensor should face outward,
towards the edge of the door (See Figure 5).
b. Replace wires behind ribs in cover to protect them
from moving parts.
4. Remove and relocate tamper switch contact from mounting
base to opposite location as shown below (See Figure 6).
5. Reattach with (2) screws.
Tamper Switch
Contact
Figure 6
3/4
(19)
J1
J2 J4
ON
J3
1 2 3 4 5 6
(+)
(—)
Figure 5
Tamper
Switch
Magnet
Sensor
±1/16
Rib
(Note Position)
Cylinder Nut
Cylinder
Actuator
Mortise
Cylinder
Alarm
Housing
Figure 3
Toggle
Switch
Cylinder
Actuator
Figure 4
!!
!!
!!
3
