Remote Key Fob*
30m working distance.
Siren
Plan the location of the Siren to be on an external wall, where
it would be most prominent, as high as possible and out of
reach.
Door/Window Contact
Ensure Door/Window Contact & magnetic
sensor strip are within 8mm of each other.
Can be positioned horizontally or vertically on
doors or windows.
Work out the best places to locate the devices for maximum protection. Having chosen the
locations, do not mount at this stage.
Battery
saver tab
Gap no more
than 8mm
Magnet
Sensor
Learn/Test
button
LED
Keypad
Choose where you will position the keypad.
• Wall mounted
• Or on desk or tabletop
• The Keypad should be sited next to
the main point of entry/exit
• Keypad should not be clearly visible from the outside
• Indoor use only
PIR
Pet Friendly PIR
Door/Window Contact Panic Button Remote Keyfob
666020001001 666021001001 666010001001 663045001001 666060001001
Panic Button*
The Panic Button provides extra protection for you and your
family. When help is needed the button can activate your
alarm immediately - even when the system is disarmed.
• Easily accessible
• Out of reach of children

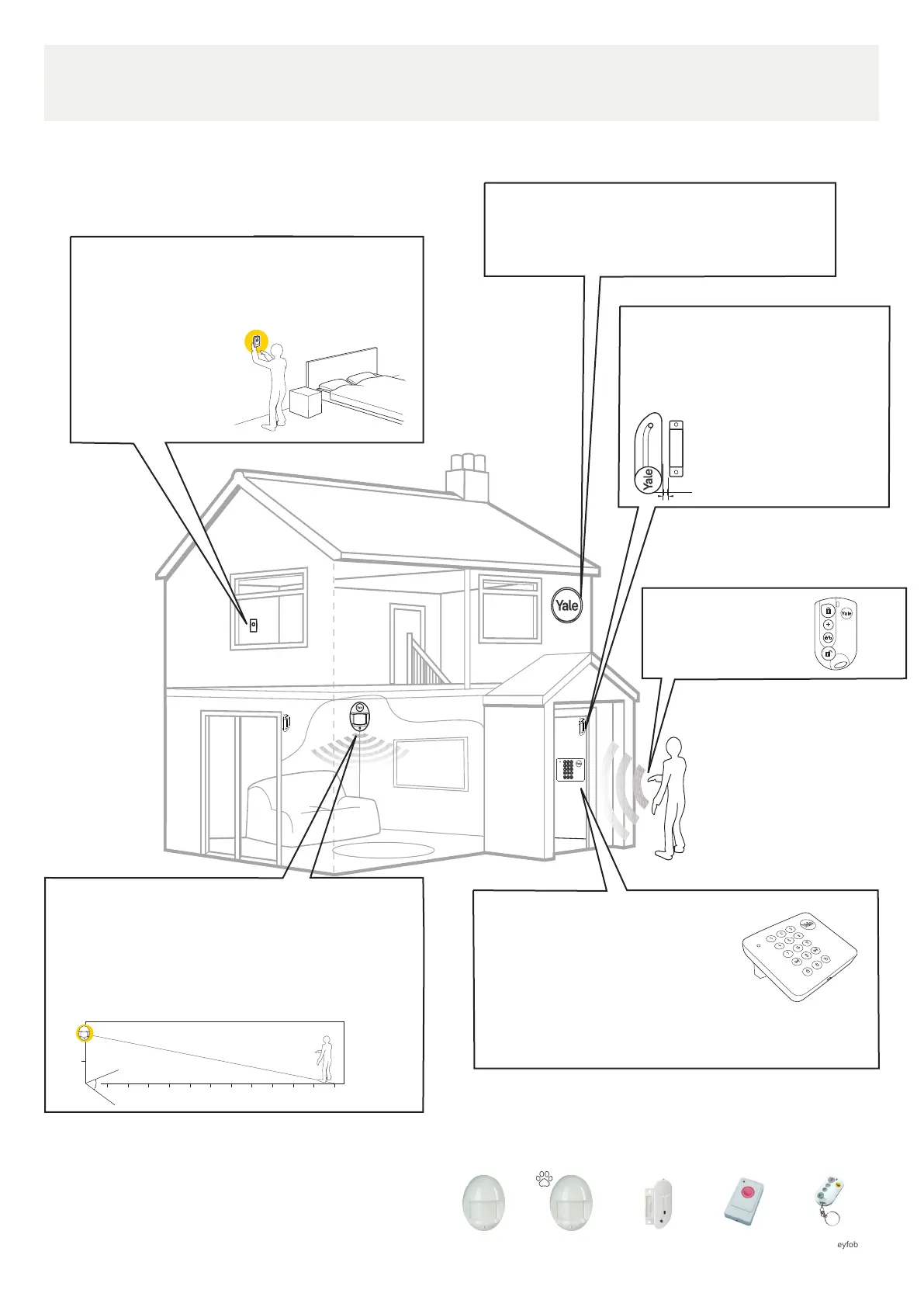

1. Location Planning
Siren x 1
PIR Motion
Detector x 2
Door & Window Sensor x 2
Keypad & Bracket x 1
Fixings
Instruction
Manual
Instruction
Manual
Max 8mm
Battery
saver tab
Gap no more
than 8mm
Magnet
Sensor
Learn/Test
button
LED
PIR Motion Detector
• Mount in a position that is inwardly facing the room and where
it has sight of most of the room.
• Do not mount a PIR where its field of view will be obstructed.
• Do not point directly at, or position directly above sources of heat.
• Avoid mounting a PIR directly facing a window.
110˚
2.1m
1.8m
10m
11m 12m9m8m7m6m
5m
4m
3m
2m1m
Extend the system
- Extend the system to increase your security as your needs change.
- Install up to 20 devices.
- Compatible with HSA 6000 series accessories ONLY
(Excluding Premium Plus Alarm Tags - 666061001001)
*Additional accessories sold separately.
