Yale YDM4109 Plus User Manual

OR
Press I button to complete.
Delete Controller

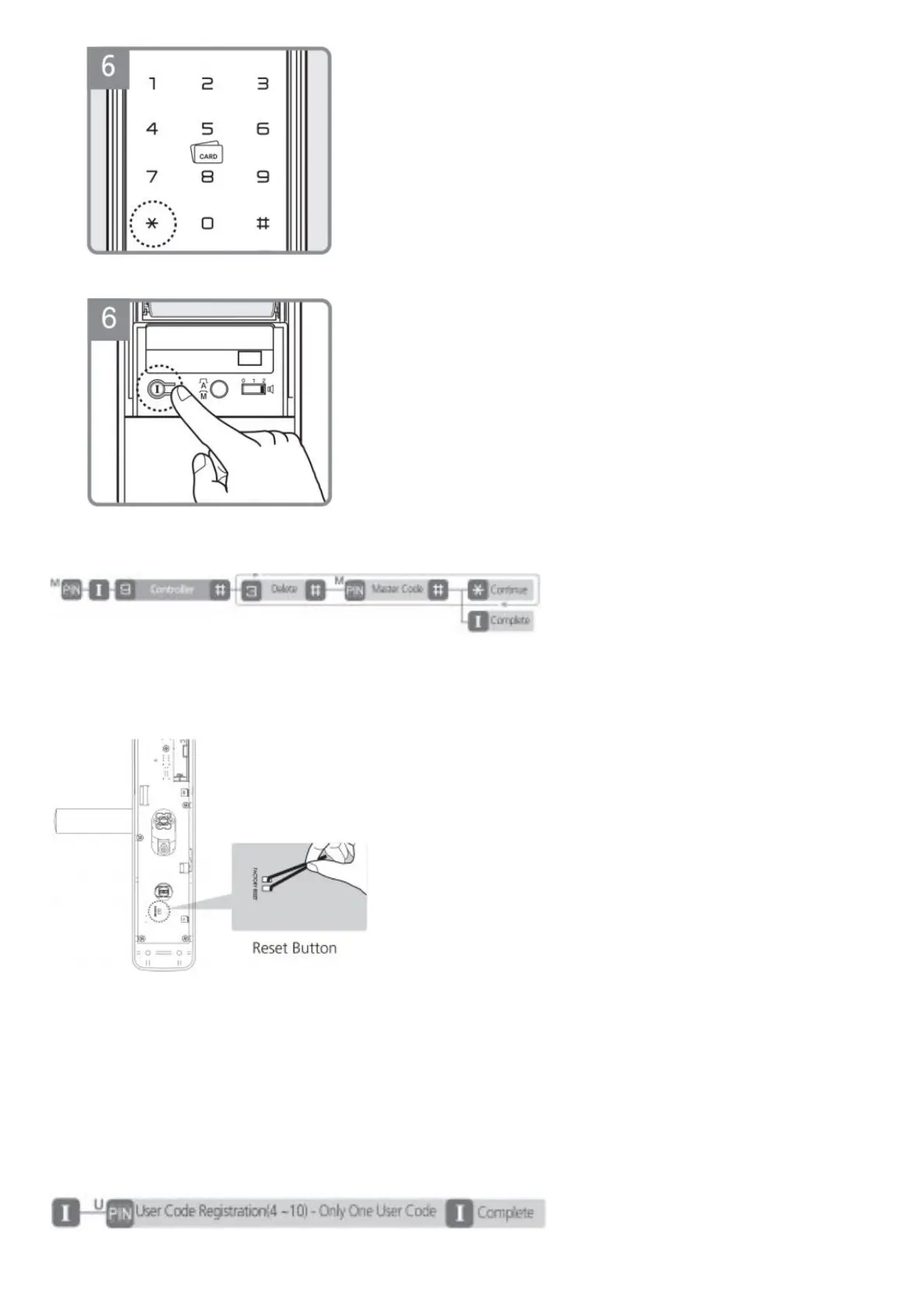

Resetting Lock to Factory Default
When lock is reset to factory defaults all user codes (including the Master Code*) are deleted and all programming features are
reset to original default settings (see below).
1. Remove the battery cover and batteries.
2. Remove the interior escutcheon to access the reset pads.
3. The reset pads are located on bottom of the PCB board (See image)
4. While pressing the reset pads with tweezer, reinstall batteries and release reset pads with tweezer.
5. Replace battery cover.
Upon reset, the Master Code creation is the only option available and must be performed prior to any other programming of the
lock.
User Code Registration (4 ~10 digits)

Yale YDM4109 Plus Specifications

General

Access Methods	Fingerprint, PIN Code, RFID Card, Mechanical Key
Material	Zinc Alloy
Color Options	Black, Silver
Fire Sensor	Yes
Auto Lock	Yes
Backup Key	Yes
PIN Code Capacity	30
Door Thickness Compatibility	35-55 mm
Power Source	4 AA batteries
Emergency Power Supply	9V Battery
Mechanical Keys	2
Keyway	Standard
Weather Resistance	Indoor use only
Fingerprint Capacity	100
Front Body Dimensions	28.5 x 68.6 x 320 mm
