Chapter 2—Console Window
Studio Manager for 01V96—Owner’s Manual
2 Console Window

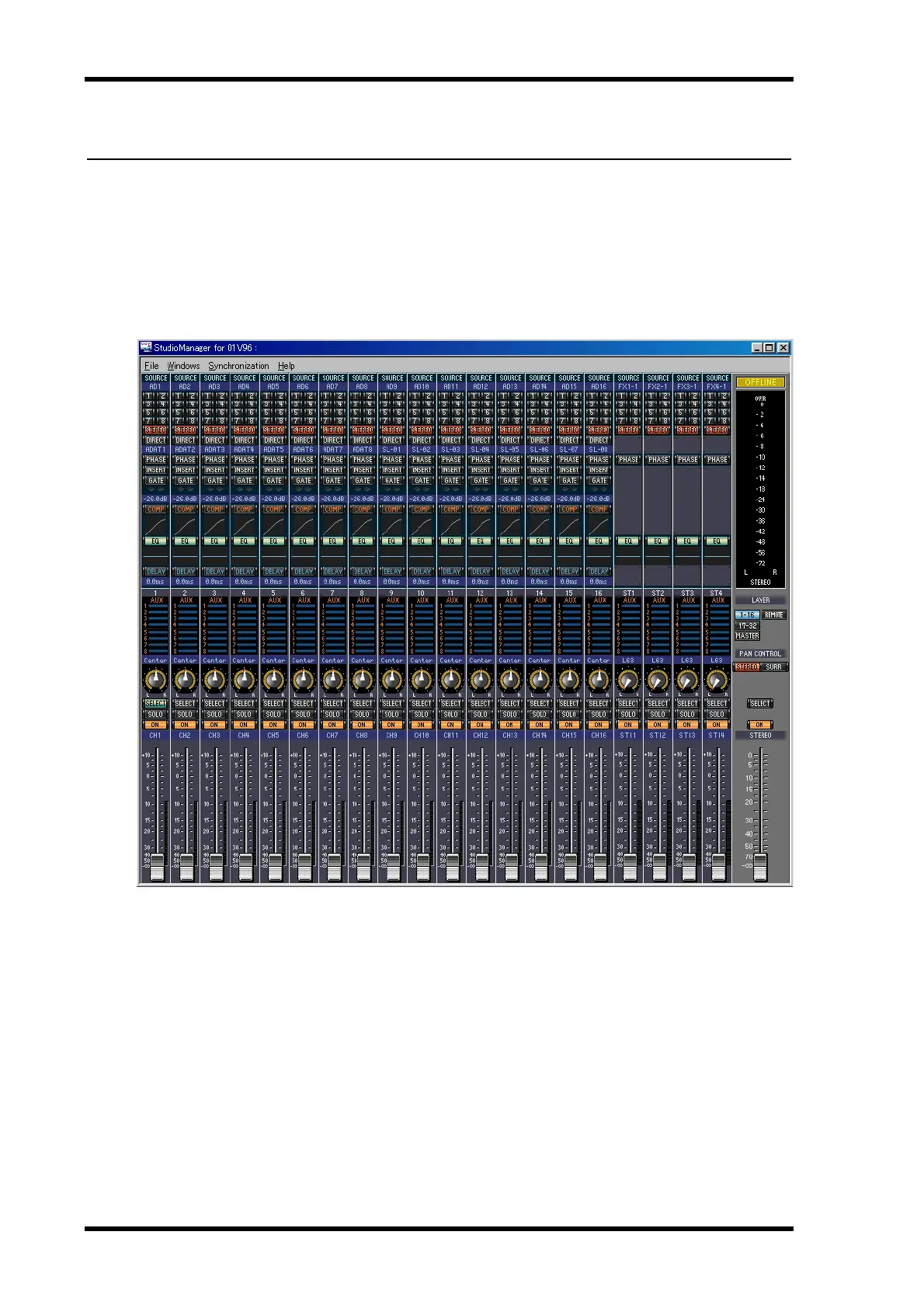

Studio Manager’s Console window displays 20 channel strips and a master section. When
an Input Channel Layer is selected, 16 Input Channels and four Stereo Input channels are
displayed. When the Master Layer is selected, the Bus Out, Aux Send and four Stereo Input
channels channels are displayed. And when the Remote layer is selected, 16 Remote Chan-
nels and four Stereo Input channels are displayed.
Many functions can be operated from here by clicking and dragging the various controls
and parameters. This is explained in the following sections.
Channels can be viewed in more detail on the Selected Channel window. See page 15 for
more information.
