Maintenance
74
Twin engines
EMU29371
Disconnecting the battery
1. Turn off the battery cut-off switch (if
equipped) and main switch.
NOTICE:
If
they are left on, the electrical system
can be damaged.
[ECM01930]
2. Disconnect the negative cable(s) from
the negative (-) terminal.
NOTICE:
Al-
ways disconnect all negative (-) ca-
bles first to avoid a short circuit and
damage to the electrical system.
[ECM01940]
3. Disconnect the positive cable(s) and re-
move the battery from the boat.
4. Clean, maintain, and store the battery
according to the manufacturer’s instruc-
tions.

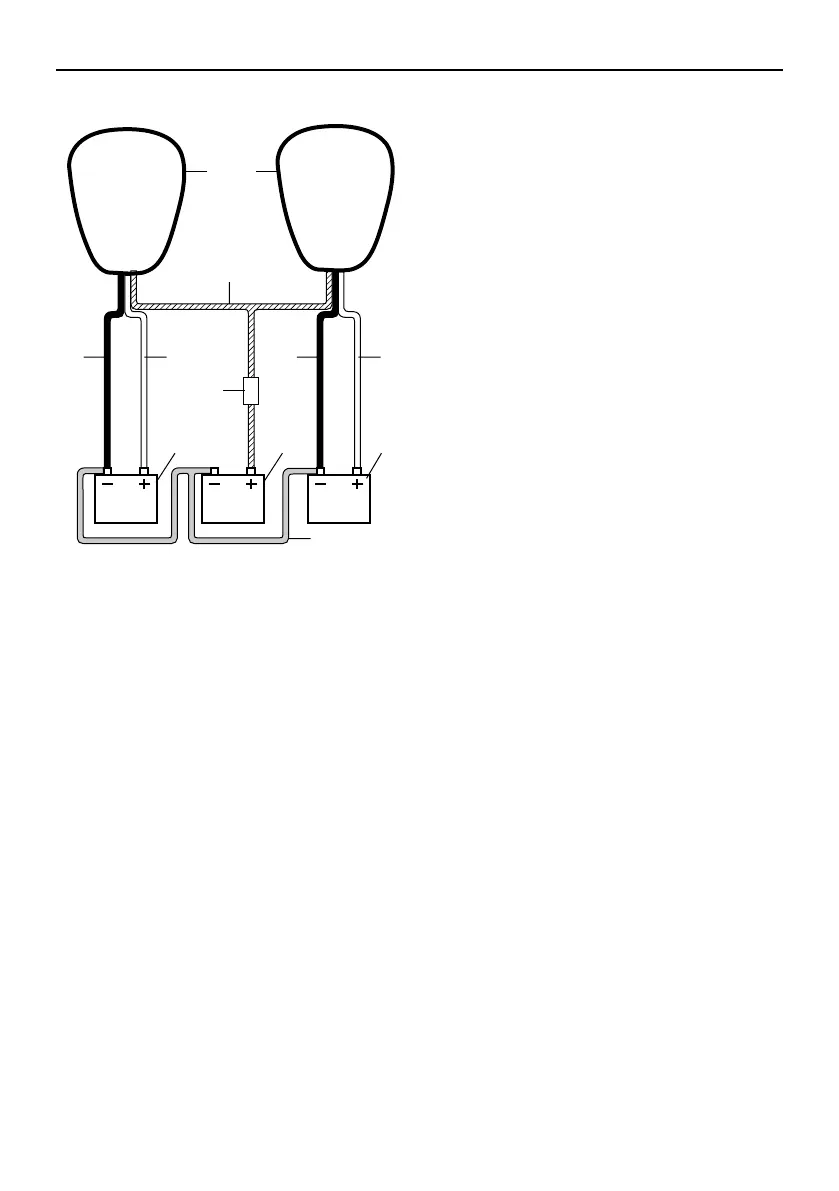

1. Starboard side engine
2. Port side engine
3. Red cable
4. Black cable
5. Isolator lead with circuit protection
6. Fuse
7. Battery for starting
8. Battery for accessories
9. Negative connecting cable
ZMU05941
1
3
9
34
6
4
2
5
7 8 7
