Yamaha 15F - Trim Angle Adjusting Rod; Tilt-Lock Mechanism; Tilt Support Bar

GB
2-11
001776
EMU01297

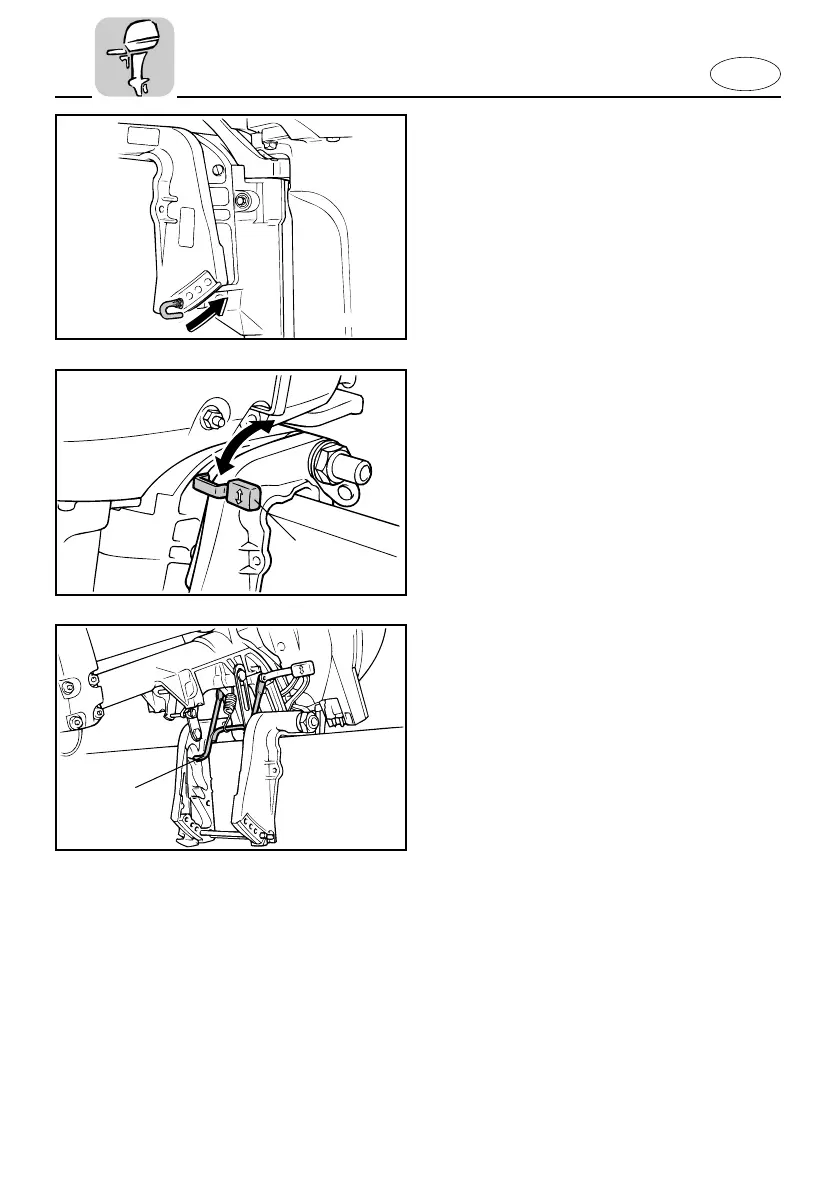

TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
402014**
q
403**2
q
EMD44110
TILT-LOCK MECHANISM (for manual
tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position. To release it, place the tilt-lock
lever in the Tilt position.
1 Tilt-lock lever
EMD48010
TILT SUPPORT BAR
The tilt support bar 1 keeps the outboard
motor in the tilted up position.
63V-9-75 (E,F,SE)-2 2/15/03 18:33 Page 24
