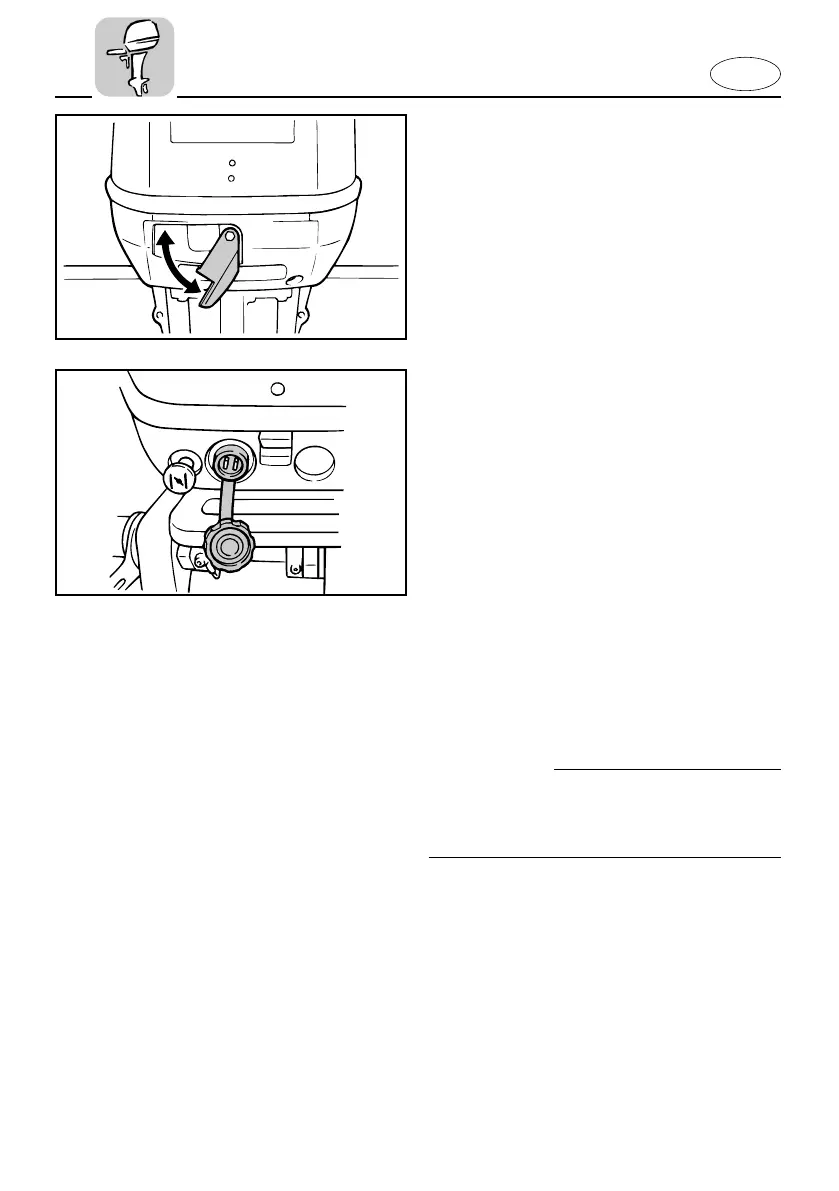

TOP COWLING LOCK LEVER
To remove the engine top cowling, push
the lock lever downward. Then lift off the
cowling. When replacing the cowling,
check to be sure it fits properly in the rub-
ber seal. Then lock the cowling again by
moving the lever upward.
314014
EMD63000
2P CONNECTOR
(for Manual start model)
AC12V-80W power is delivered through
this connector. When using it, keep in
mind the following points:
1) Use a genuine Yamaha connector.
2) Use lighting equipment only.
3) Connect a lighting equipment directly
to the 2P connector.
4) Capacity of the lighting equipment
must be more than 12V-80W; other-
wise, the bulb could be burnt out.
5) When the connector is not used,
place the cap on it.
cC
Do not connect the 2P connector directly
to the battery terminals. Otherwise, the
electrical system will be damaged.
