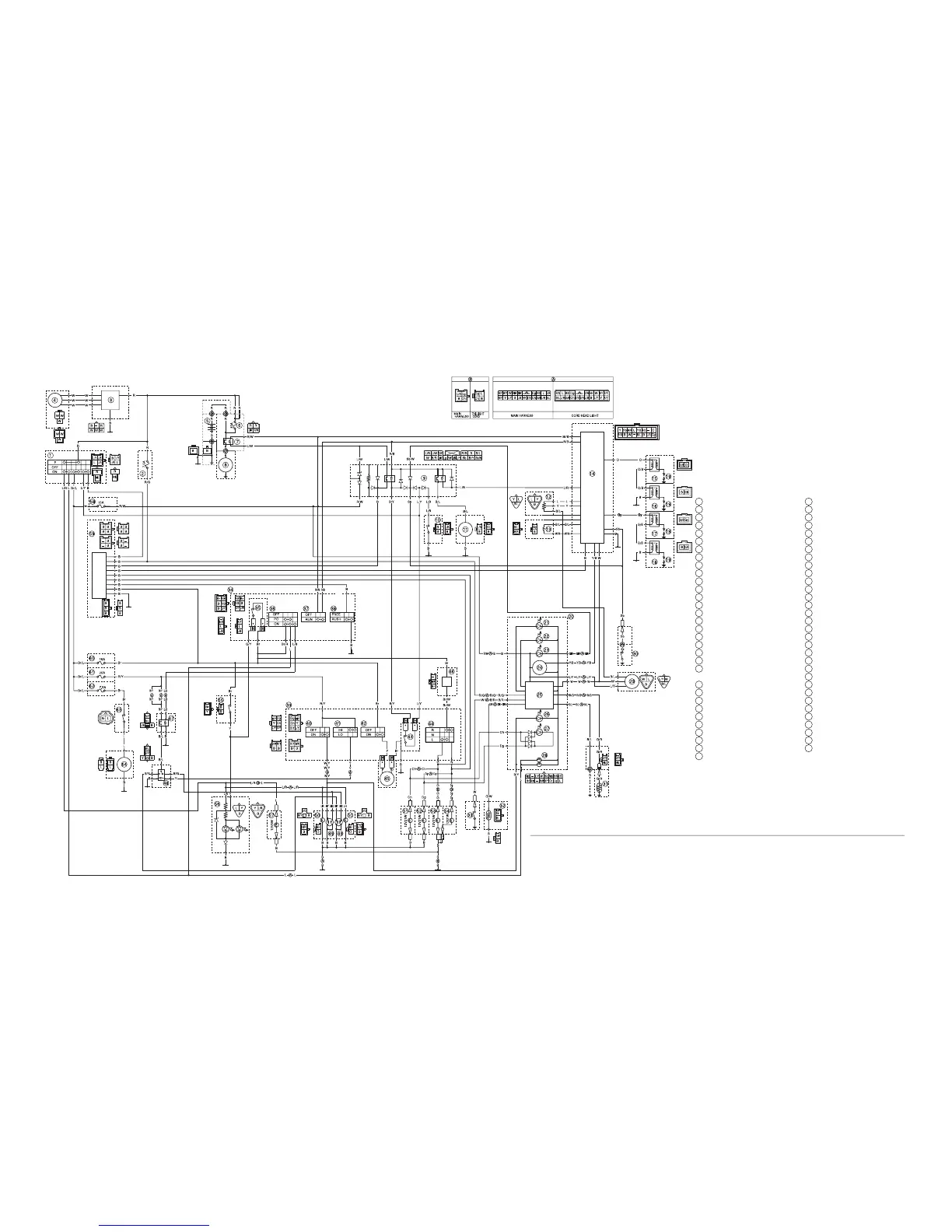

Yamaha 2001 YZF-R6 - YZF-R6 2001 WIRING DIAGRAM (for EUR); Ignition, Engine Control, and Fuel System Wiring; Lighting, Signaling, and Meter Wiring; Power, Starting, and Switch Wiring

COLOR CODE
B Black. . . . . .
Br Brown. . . . .
Ch Chocolate. . . .
Dg Dark green. . . .
G Green. . . . .
Gy Gray. . . .
L Blue. . . . . .
Lg Blue green. . . . .
O Orange. . . . .
P Pink. . . . . .
R Red. . . . . .
Sb Sky blue. . . . .
W White. . . . .
Y Yellow. . . . . .
B/L Black/Blue. . . .
B/R Black/Red. . . .
B/Y Black/Yellow. . . .
Br/B Brown/Black. . .
Br/L Brown/Blue. . .
Br/R Brown/Red. . .
Br/W Brown/White. . .
G/R Green/Red. . .
G/W Green/White. . .
G/Y Green/Yellow. . . .
Gy/B Gray/Black. . .
L/B Blue/Black. . . .
L/R Blue/Red. . . .
L/W Blue/White. . .
L/Y Blue/Yellow. . . .
O/B Orange/Black. . . .
R/B Red/Black. . . .
R/G Red/Green. . .
R/L Red/Blue. . . .
R/W Red/White. . .
R/Y Red/Yellow. . . .
Sb/W Sky blue/White. .
W/G White/Green. . .
W/R White/Red. . .
W/Y White/Yellow. . .
Y/B Yellow/Black. . . .
1 Main switch
2 Fuse (back up)
3 Rectifier/Regulator
4 AC magneto
5 Battery
6 Fuse (main)
7 Starter relay
8 Starter motor
9 Starting circuit cut-off relay
10 Sidestand switch
11 Fuel pump
12 Throttle position sensor
13 Pickup coil
14 CDI unit
15 Ignition coil #1
16 Ignition coil #2
17 Ignition coil #3
18 Ignition coil #4
19 Spark plug
20 Meter assembly
21 Fuel level indicator light
22 Oil level/coolant temperature
warning light
23 Neutral indicator light
24 Tachometer
25 Combination meter
26 Hi beam indicator light
27 Turn signal indicator light
28 Illumination light
29 Speed sensor
30 Neutral switch
31 Thermo unit
32 Fuel sender
33 Oil level switch
34 Right handlebar switch
35 Front brake light switch
36 Light switch
37 Engine stop switch
38 Start switch
39 Left handlebar switch
40 Pass switch
41 Dimmer switch
42 Horn switch
43 Clutch switch
44 Turn signal switch
45 Horn
46 Flasher relay
47 Headlight relay (Hi)
48 Headlight relay (Lo)
49 Headlight
50 Auxiliary light
51 Front turn signal light (left)
52 Front turn signal light (right)
53 Rear turn signal light (left)
54 Rear turn signal light (right)
55 Rear brake light switch
56 Tail/brake light
57 Licence light
58 Fuse (ignition)
59 Alarm
60 Fuse (signaling system)
61 Fuse (headlight)
62 Fuse (radiator fan motor)
63 Thermo switch
64 Radiator fan motor
YZF-R6 2001 WIRING DIAGRAM (for EUR)
