2-5
EMC27011

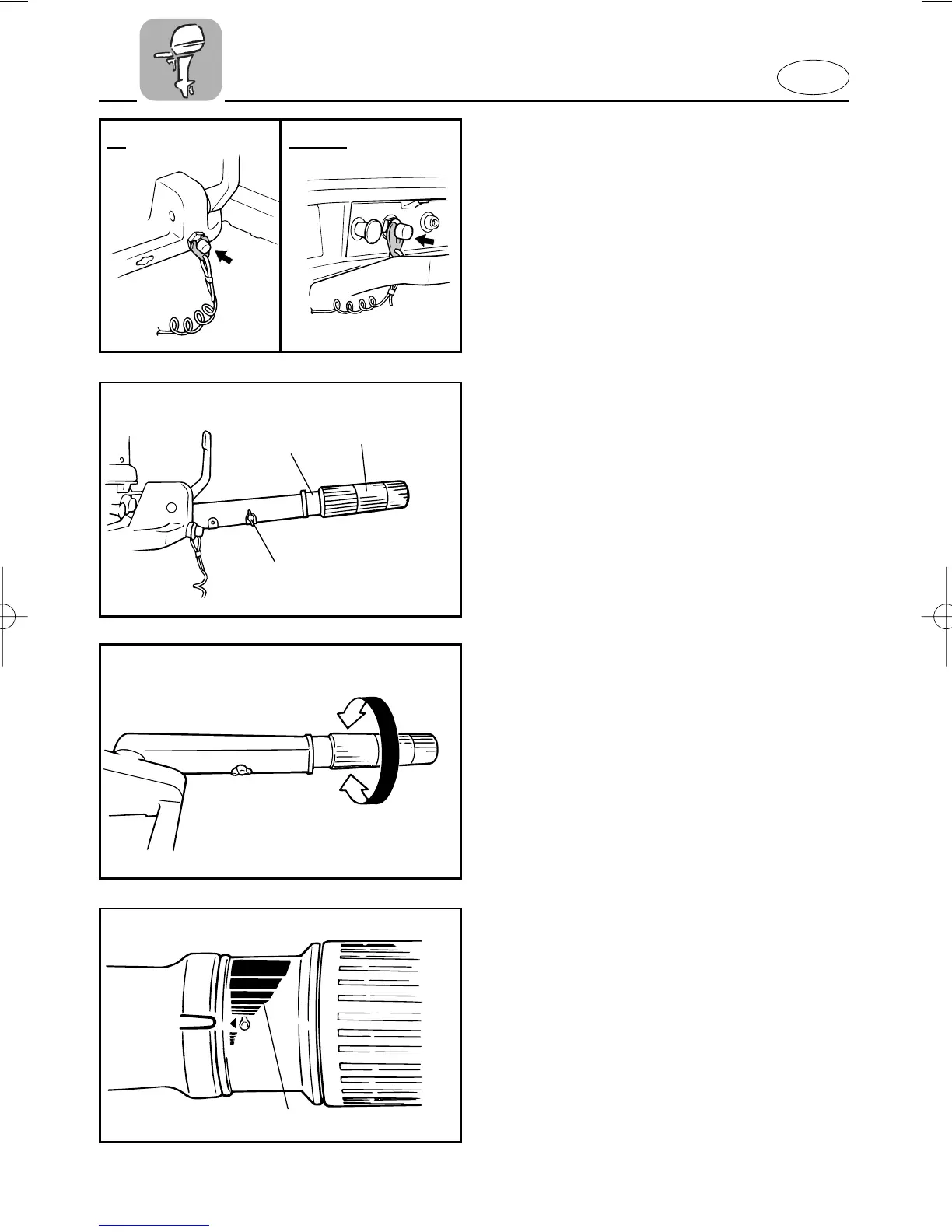

ENGINE STOP BUTTON
(for Tiller control model)
Pushing this button opens the ignition cir-
cuit and stops the engine.
EMU00062
TILLER HANDLE (for Tiller control
model)
Moving the tiller handle sideways to
adjust the steering direction. In addition,
this handle contains the functions as fol-
lows.
1 Throttle control grip
2 Throttle indicator
3 Throttle friction adjusting knob/screw
E
503021*
e
q
w
503032
EMU00067
Throttle Indicator
The fuel consumption curve on the throt-
tle indicator shows the relative amount of
fuel consumed for each throttle position.
Choose the setting that offers the best
performance and fuel economy for the
desired operation.
1 Throttle indicator
25 25-3/30
EMU00065
Throttle Control Grip
The throttle control grip is on the tiller
handle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
6L2-9-1H 2 4/20/01 1:53 PM Page 6
