REMOTE CONTROL CABLES
ROUTING THE REMOTE CONTROL CABLES
Do not bend the remote control cable to the radius of 300 mm (1 foot) or smaller. Additional
friction will impair the control ability.
1. Route the cable along an unobstructed path of the hull from the remote control box to the engine.
2. Take 3 feet (approximately 1 m) of cable to make a loop in the motor well. This is to prevent the
cables from hard bend when the outboard motor is fully tilted up and steered. See the illustration

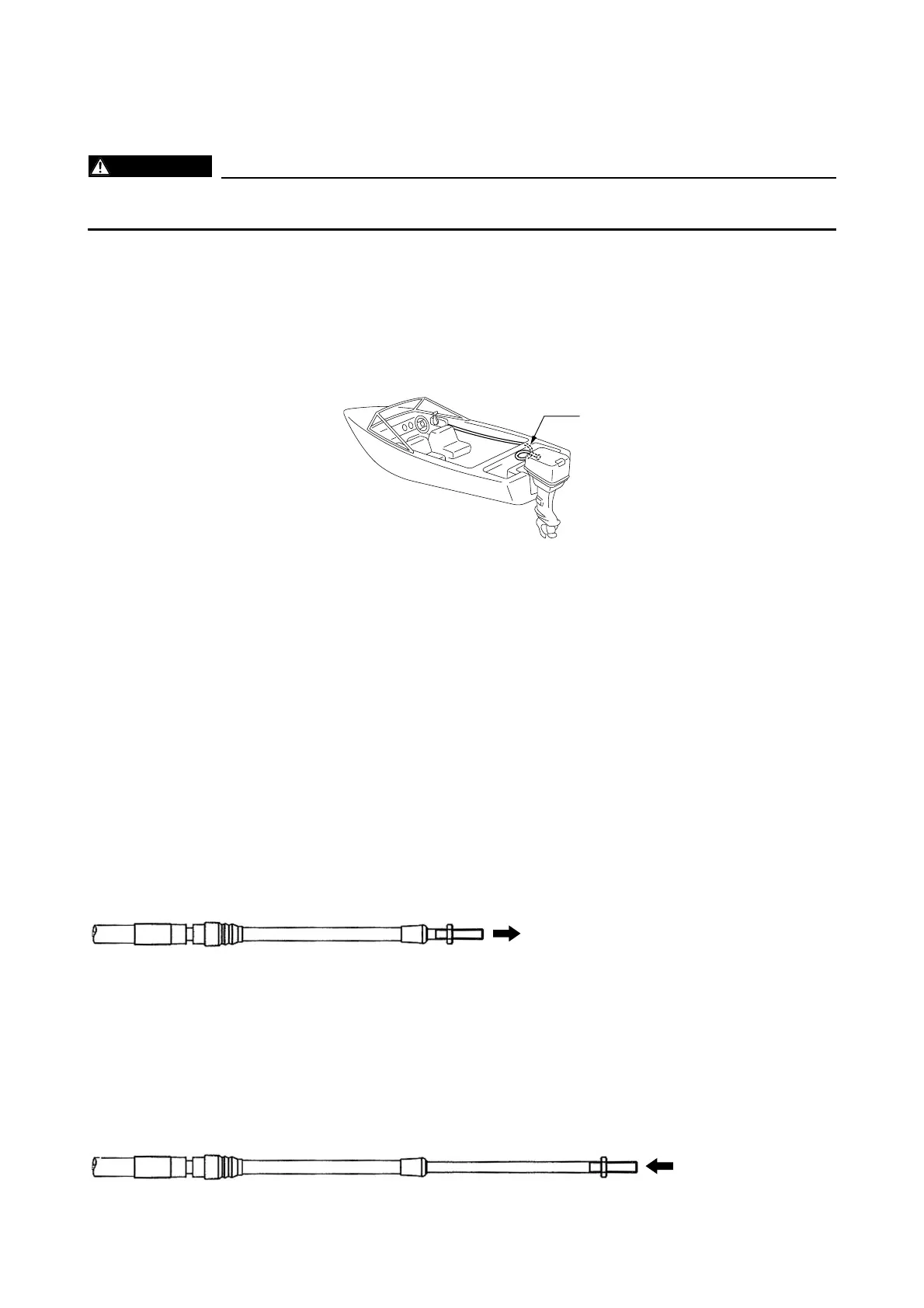

below for a typical cable routing.
* Refer to the instruction manual packed in the remote control box for the installation and routing of the remote
control cable.
REMOTE CONTROL THROTTLE CABLE FREE-PLAY ADJUSTMENT
The mechanical remote control cable free-play adjustment is required for proper remote throttle
control operation.
For the first, install the remote control cables to the remote control box, and put the remote control
lever into the neutral/ idle position.
* For detailed procedure to install the remote control cables to the remote control box, see the instruction
which is supplied with the remote control unit, or applicable service literature.
Adjust the inner cable free-play as follows:
PUSH-TO-OPEN TYPE
1. Pull out the inner cable by the force of 15 N (1.5 kgf, 3 lb) to remove the cable free-play.
2. Set the throttle valve control arm to contact onto its stop plate.
3. Install the cable joint, and adjust it to align with the pin of throttle arm.
4. Connect the joint to the pin, and then secure it using the clips and nuts.
5. Check the throttle for proper operation.
PULL-TO-OPEN TYPE
1. Push in the inner cable by the force of 15 N (1.5 kgf, 3 lb) to remove the cable free-play.
2. Set the throttle valve control arm to the fully closed (idle) position.
3. Install the cable joint, and adjust it to align with the pin of throttle arm.
4. Connect the joint to the pin, and then secure it using the clips and nuts.
5. Check the throttle for proper operation.
Pull [15 N, 1.5 kgf, 3 lb]
Engine side
Push [15 N, 1.5 kgf, 3 lb]
Engine side
