Yamaha 4ACMH - Conversion Harness 1; Fuel Management Gauge Harness; Lighting Coil Extension Harness; Rectifier Kit

5-35
WIRE HARNESSES

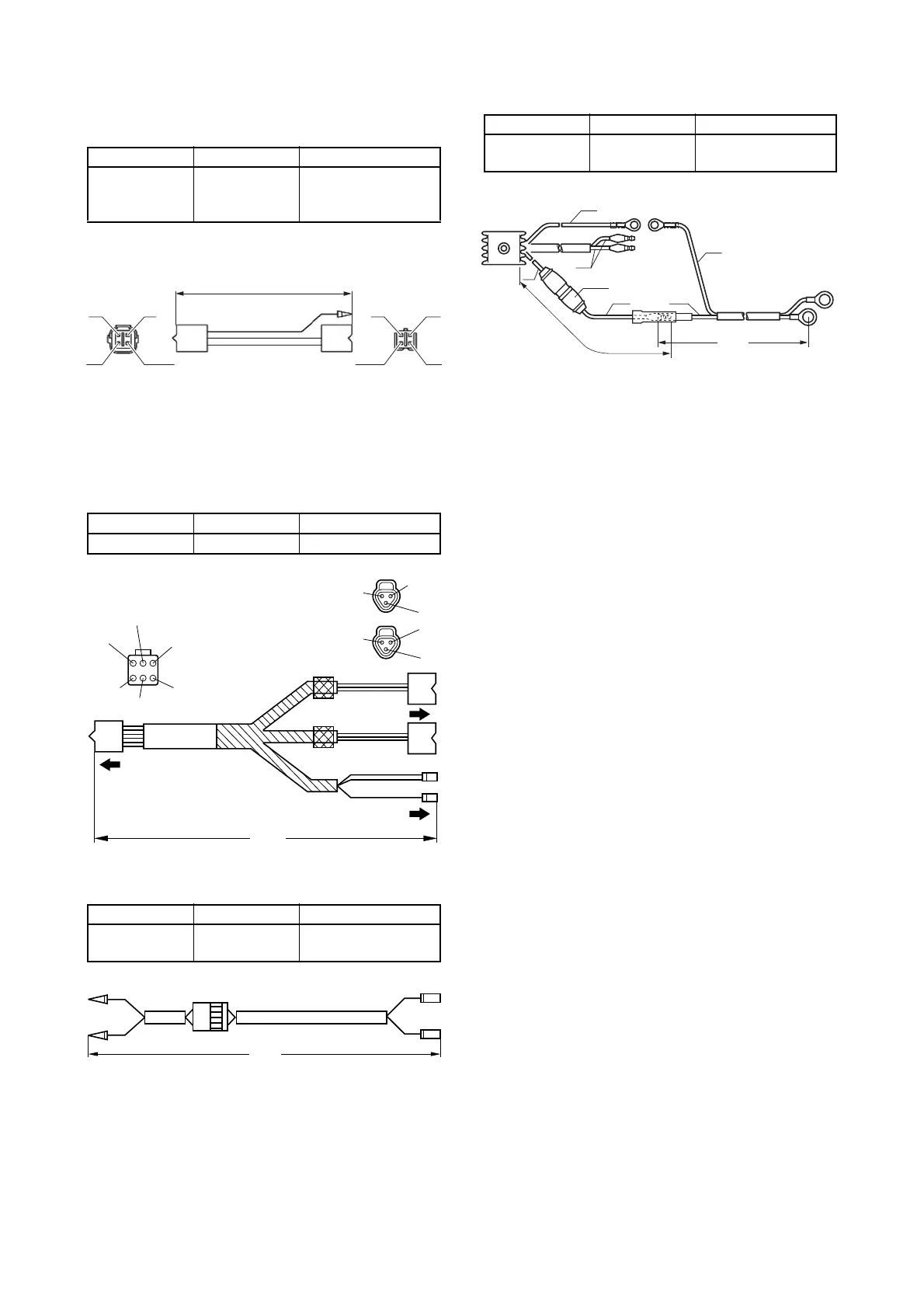

CONVERSION HARNESS 1
(*1) For tachometer 6Y5-8350T-90
FUEL MANAGEMENT GAUGE
HARNESS
LIGHTING COIL EXTENSION HARNESS
RECTIFIER KIT
Part No. Length (L) Remarks
6Y5-8350U-10 150 mm (6 in)
To freeze trim-
gauge
(*1)
for hydro-
tilt model
Part No. Length (L) Remarks
6Y5-83553-F1 8 m (26 ft)
Part No. Length (L) Remarks
682-84380-00 6 m (19 ft)
M-start model with
lighting coil
(L)
B
B
G/R
G
To tachometer
To EXT
wire-harness
XX
GG/R
BX
G/RG
Or/B
Or/B
B
Pu/W
Or
B
S
P
B
Fuel sensor
Gauge
W/R
Pu
W/R
Or
B
Pu/W
Pu
( L )
Water detection SW (OP)
G
G
G
G
( L )
Part No. Length (L) Remarks
676-81970-01 2 m (7 ft)
M-start model with
lighting coil
R
300 mm
11.8 in
( L )
RR
20A
B
B
To GND
To
Lighting
coil
To direct
current
equipment
G
