Remote
Oil Tank
Fuel tank
OUT
IN
2-stroke oil injection
(*2)
6Y5-83553-F1 :
8 m (26 ft)
6Y5-85752-02
Speed hose (* 1)
6R3-85721-30 : 3 m (10 ft)
-50 : 5 m (16 ft) -80 : 8 m (26 ft)
6Y5-83653-00 : 5 m (16 ft)
-10 : 6 m (19 ft) -20 : 7 m (23 ft) -30 : 8 m (26 ft) -40 : 9 m (29 ft) -50 : 10.5 m (34 ft)
6Y5-8350T-90
FUEL
SPEED
TACH
GPS
(*1)
6Y5-85721-F0
6Y5-87122-S0
(* 1) Select either speedometer or GPS (NMEA0183) If GPS is connected, speed hose is not required. (* 2) Water separator (Market obtainable)
NMEA
0183
Engine Oil Tank
688-82520-00
6Y5-83553-M0 :
2.5 m (8 ft)
GPS
NMEA
0183
Speed hose (* 1)
6Y5-85721-F0
SPEED/FUEL
(+)
(+)

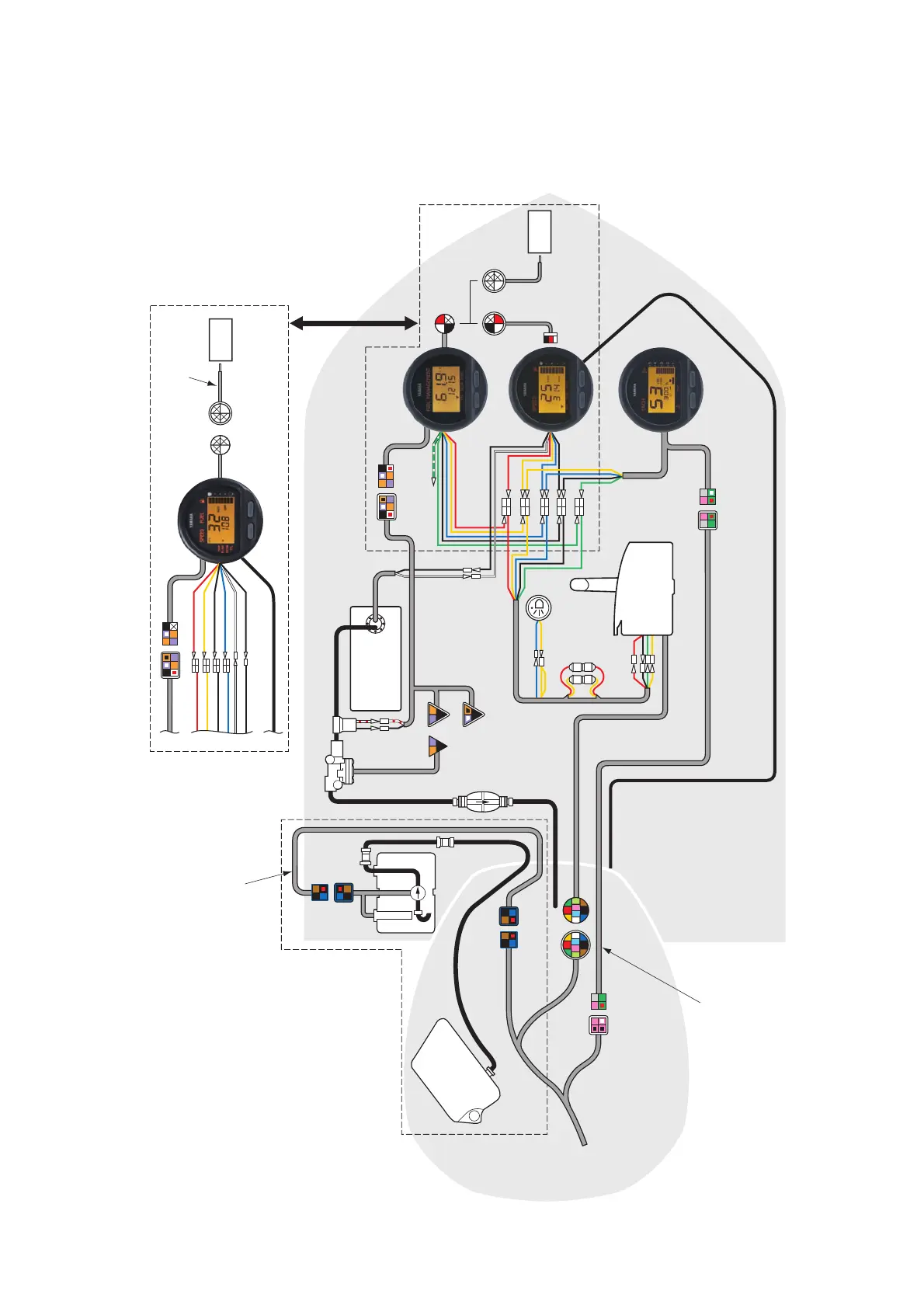

WIRING DIAGRAMS
DIGITAL METER (6Y5)
SINGLE ENGINE w/ SIDE-MOUNT RC
Above 115 w/ oil injection (except 250G),
Above F115 (Mechanical RC)
