1-33

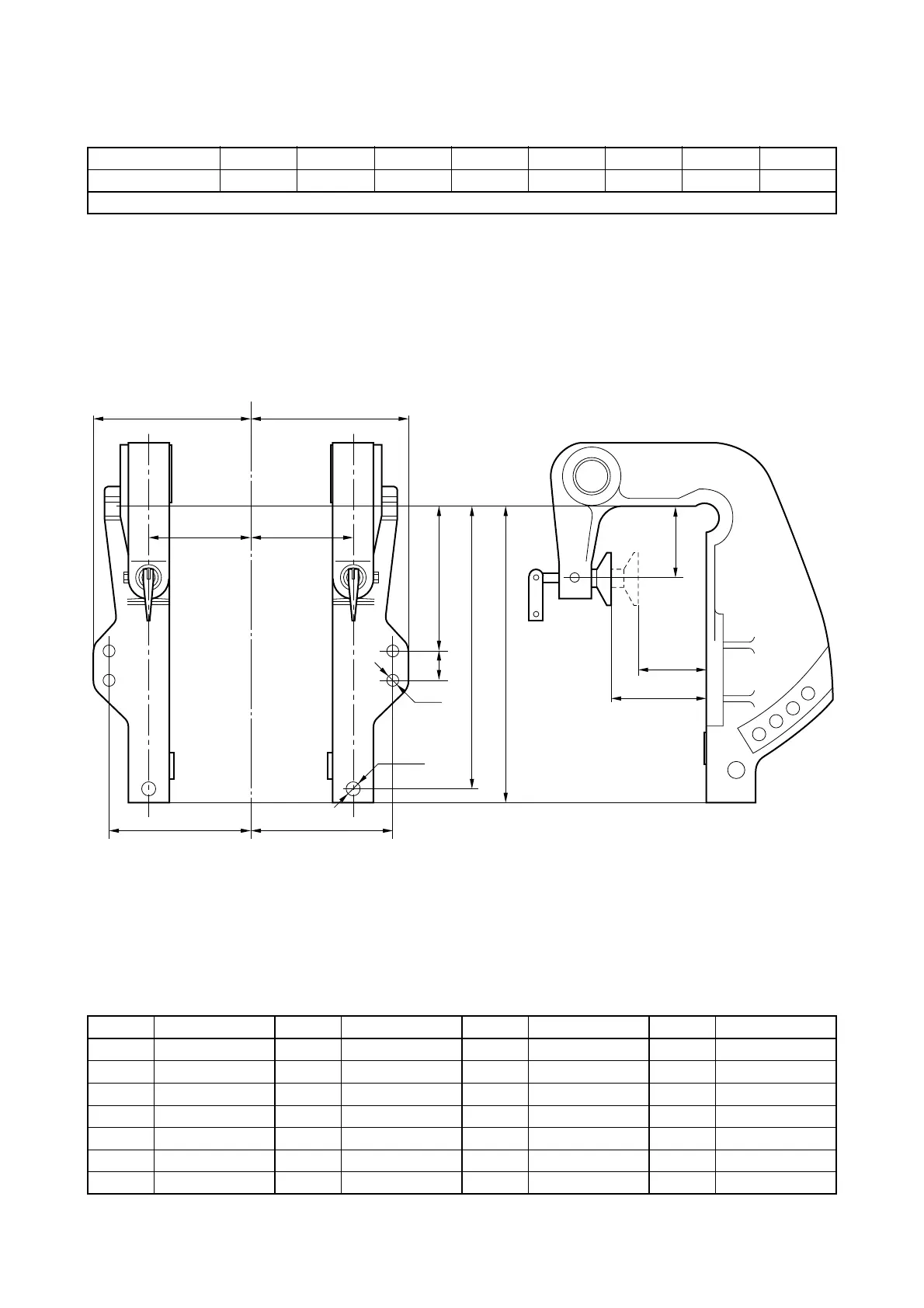

OUTBOARD MOTOR DIMENSIONS
CLAMP BRACKET DIMENSIONS
Global model
F8C
FT8D
US/CA model
F8A
Manual tilt
Symbol
mm (in.)
Symbol
mm (in.)
Symbol
mm (in.)
Symbol
mm (in.)
B1
70.5 (2.8)
B8
—
C1
32 (1.3)
D1
8.3 (0.3)
B2
180.5 (7.1)
B9
18 (0.7)
C2
65 (2.6)
D2
8.3 (0.3)
B3
95.3 (3.8)
B10
—
C3
—
D3
—
B4
94.5 (3.7)
B11
—
D4
—
B5
105.3 (4.2)
B12
48 (1.9)
B6
189.5 (7.4)
B7
—
B6
B2
B9
B4
B1
B1
B5
C/L
B5
D2
D1
B3
B3
C1
B12
C2
40
42
